P0713

DTC P0713 TRANSMISSION FLUID TEMPERATURE SENSOR CIRCUIT HIGH INPUT

DTC DETECTING CONDITION
Input signal circuit to ATF temperature sensor is shorted.

TROUBLE SYMPTOM
Excessive shift shock

WIRING DIAGRAM:

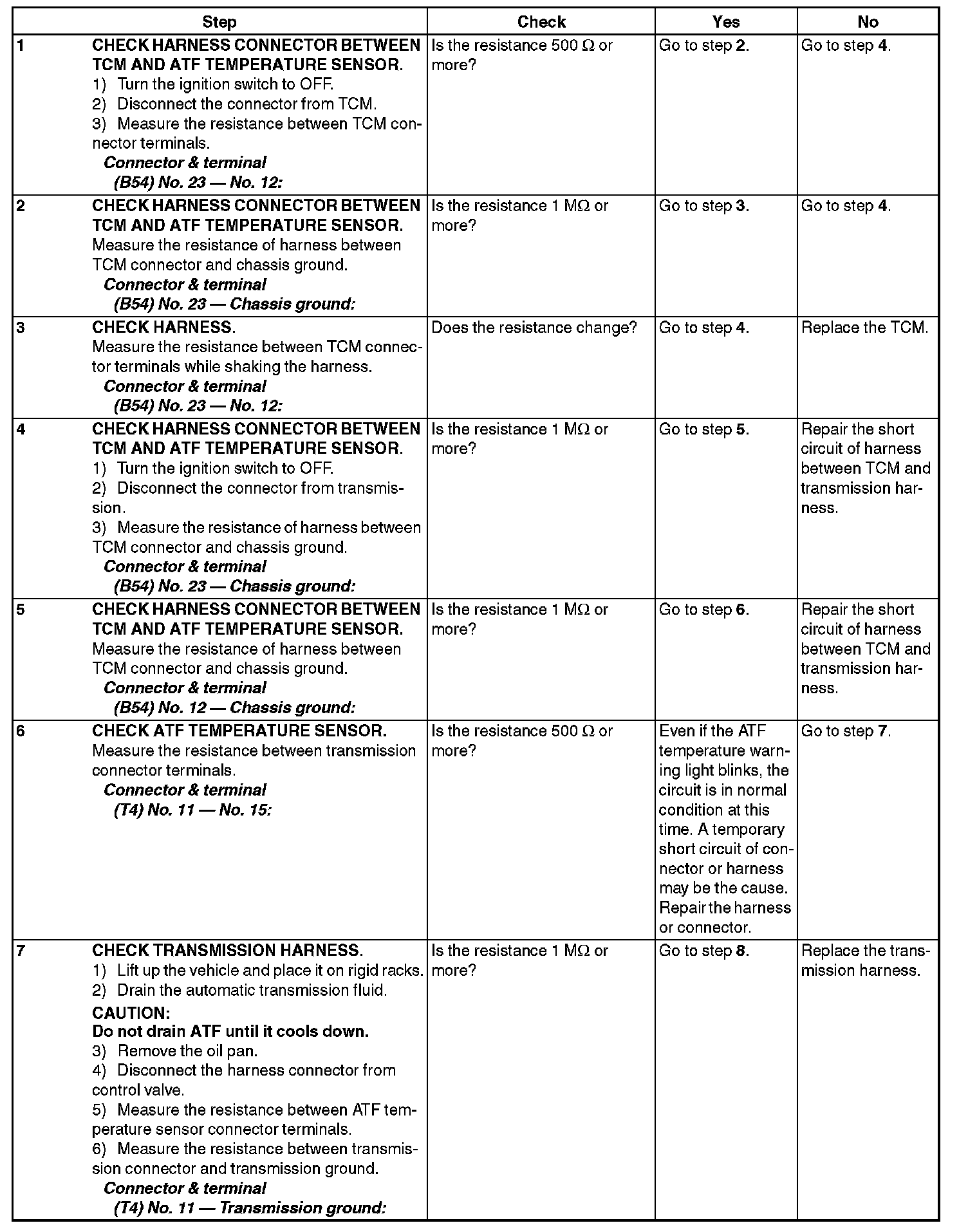

Step 1-7:




Step 8-9:
