P0712

DTC P0712 TRANSMISSION FLUID TEMPERATURE SENSOR CIRCUIT LOW INPUT

DTC DETECTING CONDITION
Input signal circuit to ATF temperature sensor is open or shorted.

TROUBLE SYMPTOM
Excessive shift shock

WIRING DIAGRAM:

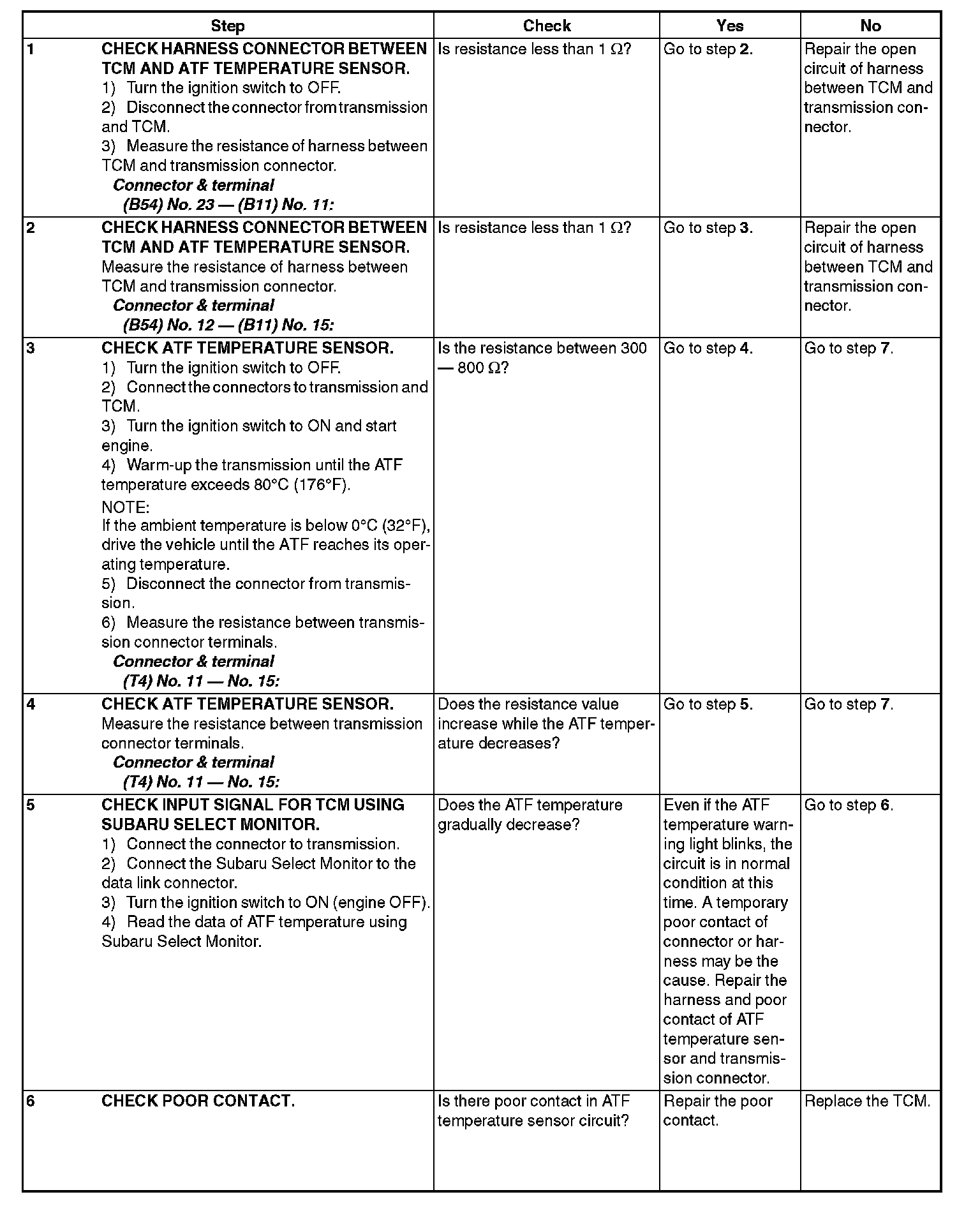

Step 1-6:

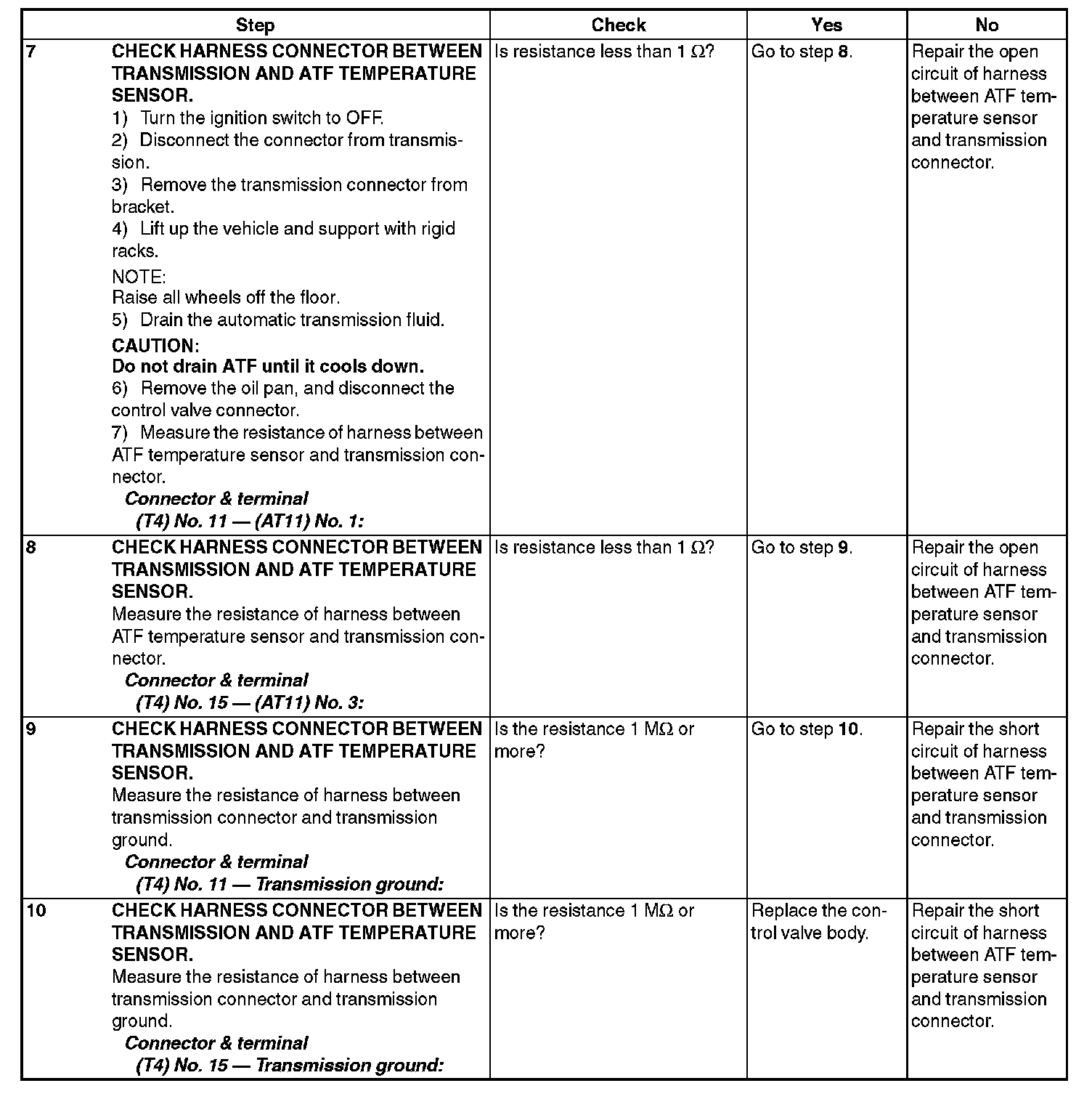

Step 7-10:
