EXCESSIVE LATERAL G SENSOR SIGNAL

AY: DTC C0073 EXCESSIVE LATERAL G SENSOR SIGNAL

DTC DETECTING CONDITION
Lateral G sensor malfunction

TROUBLE SYMPTOM
VDC does not operate.

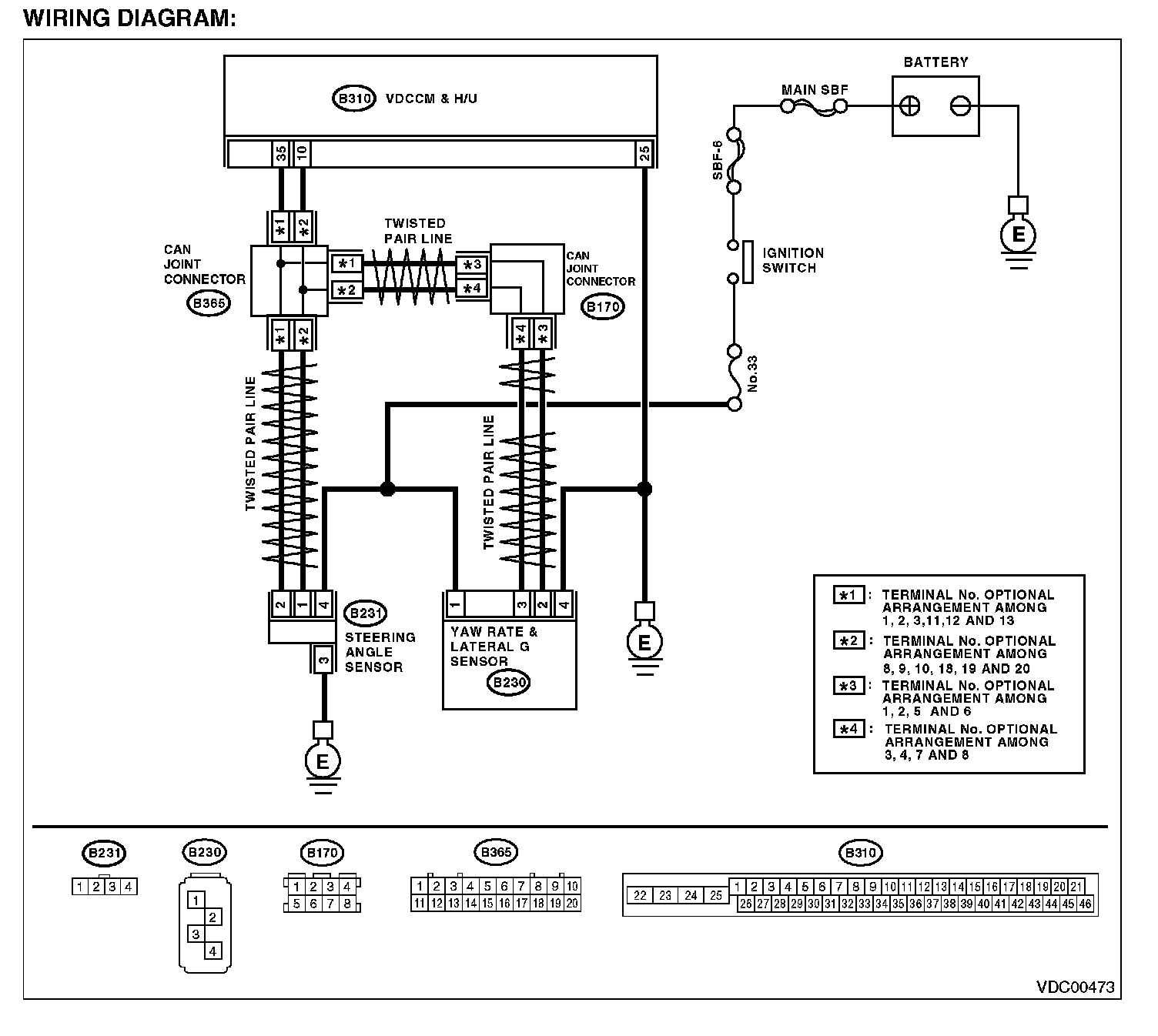

WIRING DIAGRAM

WIRING DIAGRAM:

AY: C0073 EXCESSIVE LATERAL G SENSOR SIGNAL:
