STEERING ANGLE SENSOR OFFSET IS TOO BIG

DTC C0071 STEERING ANGLE SENSOR OFFSET IS TOO BIG

DTC DETECTING CONDITION
Defective steering angle sensor

TROUBLE SYMPTOM
VDC does not operate.

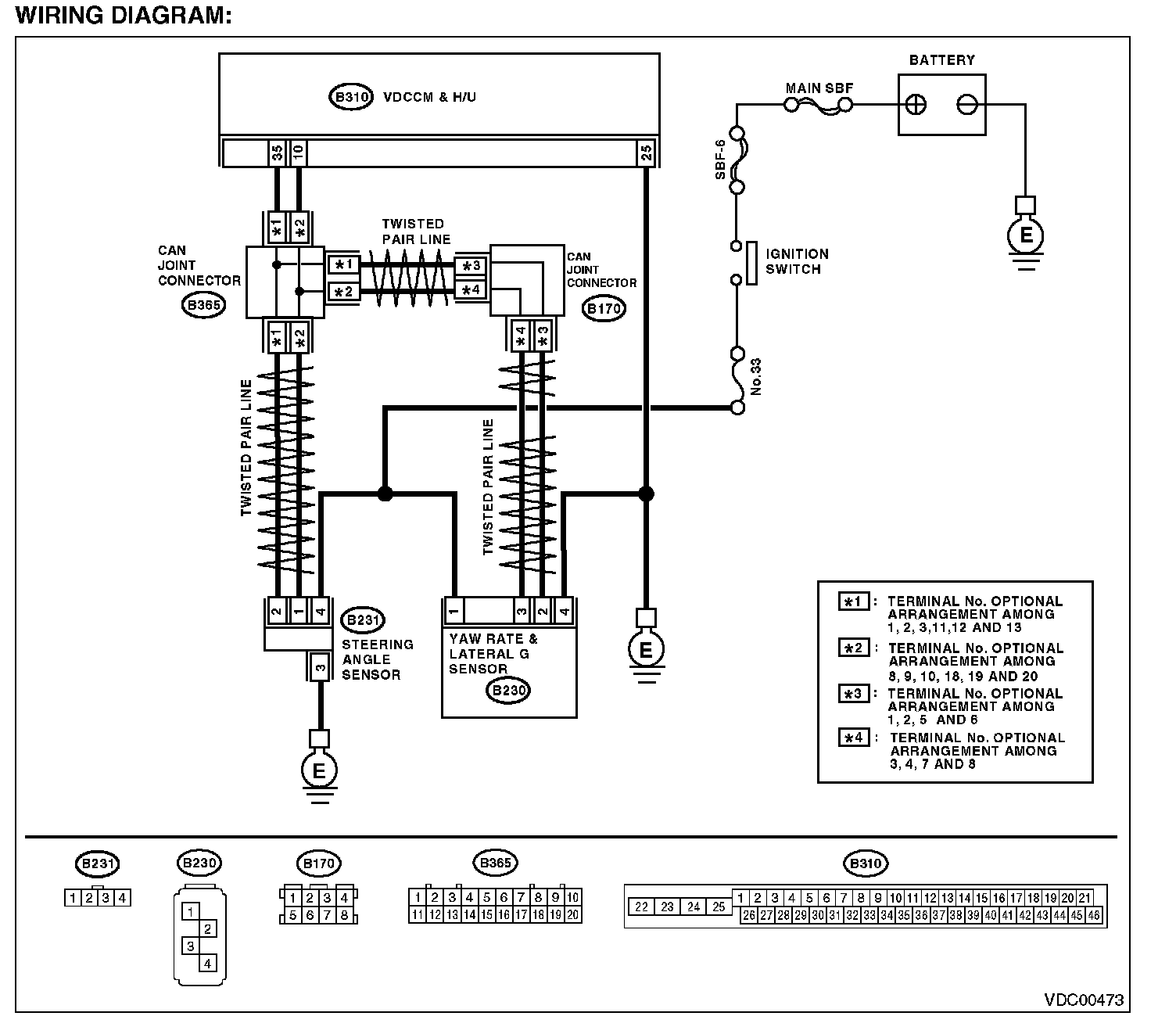

WIRING DIAGRAM

WIRING DIAGRAM:




AM: C0071 STEERING ANGLE SENSOR OFFSET IS TOO BIG:
