STEERING ANGLE SENSOR MALFUNCTION (AP)
AP: DTC C0071 STEERING ANGLE SENSOR MALFUNCTIONDTC DETECTING CONDITION
Defective steering angle sensor
TROUBLE SYMPTOM
^ ABS does not operate.
^ VDC does not operate.
NOTE:
^ Warning light does not illuminate though problem is detected.
^ The ABS and VDC operate normally if voltage returns.

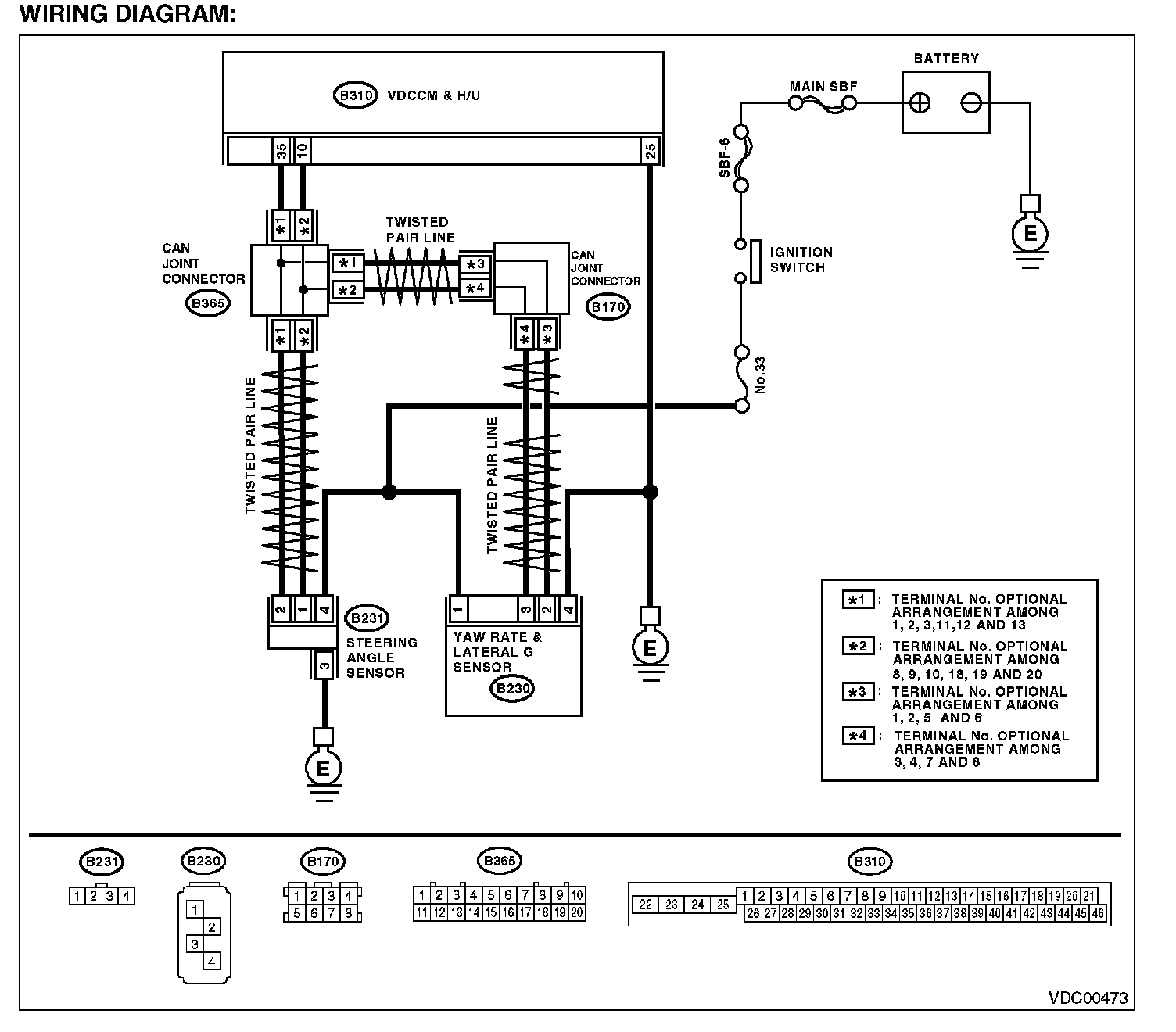

WIRING DIAGRAM
WIRING DIAGRAM:
AP: C0071 STEERING ANGLE SENSOR MALFUNCTION:
