STEERING ANGLE SENSOR MALFUNCTION (AO)
AO: DTC C0071 STEERING ANGLE SENSOR MALFUNCTIONDTC DETECTING CONDITION
Signal does not come from steering angle sensor.
TROUBLE SYMPTOM
VDC does not operate.

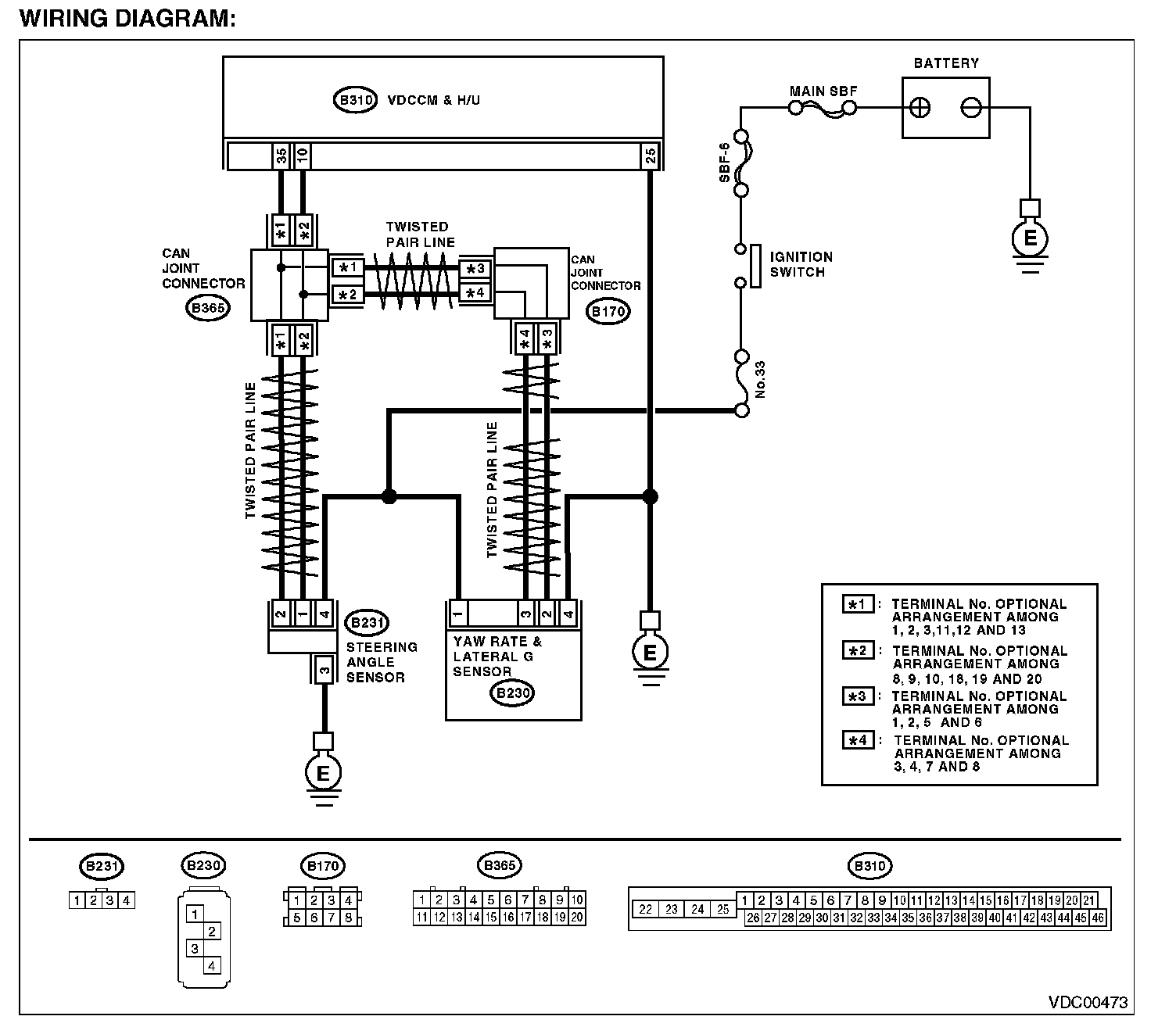

WIRING DIAGRAM
WIRING DIAGRAM:
AO: C0071 STEERING ANGLE SENSOR MALFUNCTION (PART 1):

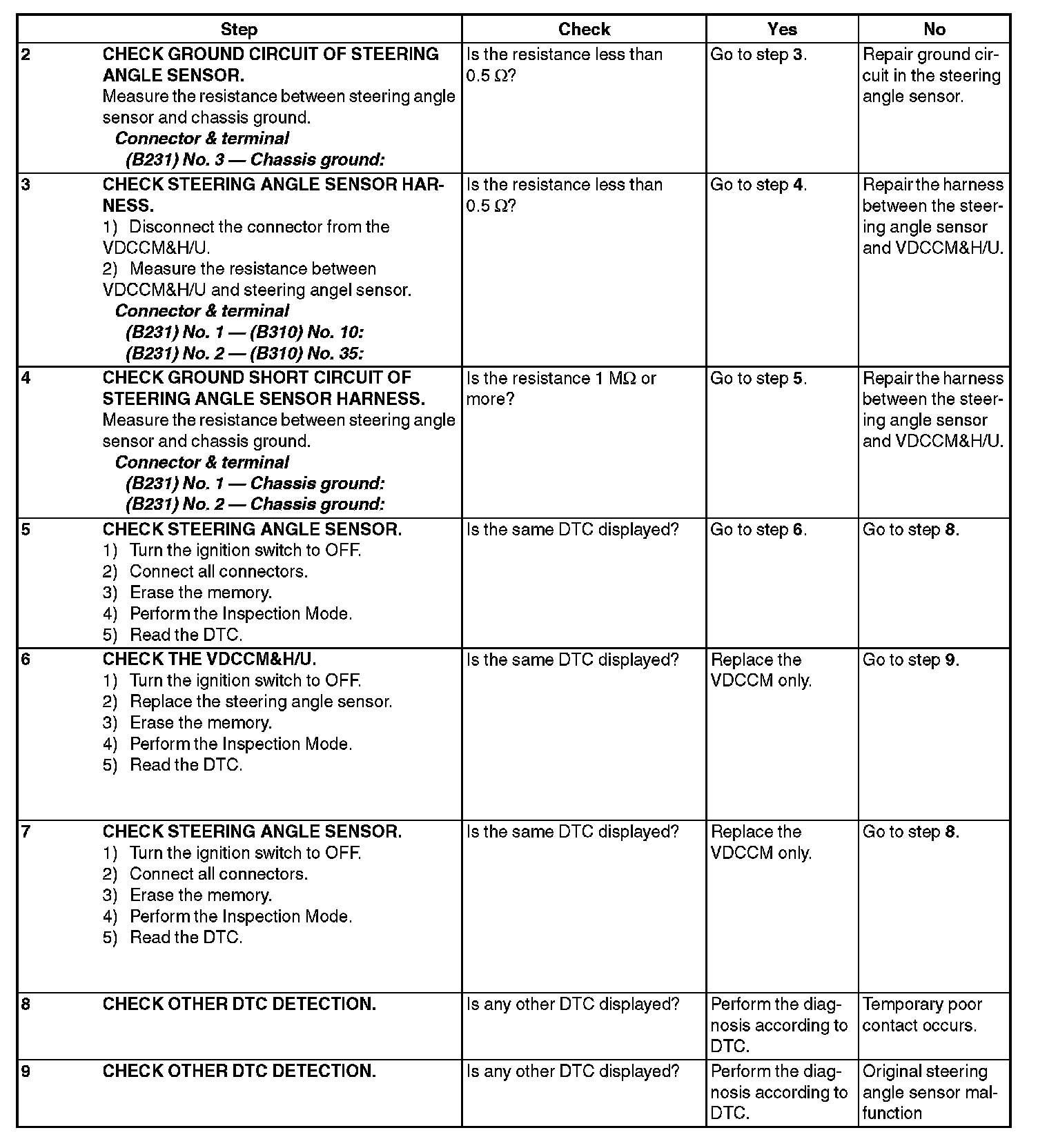

AO: C0071 STEERING ANGLE SENSOR MALFUNCTION (PART 2):
