BLS ON MALFUNCTION

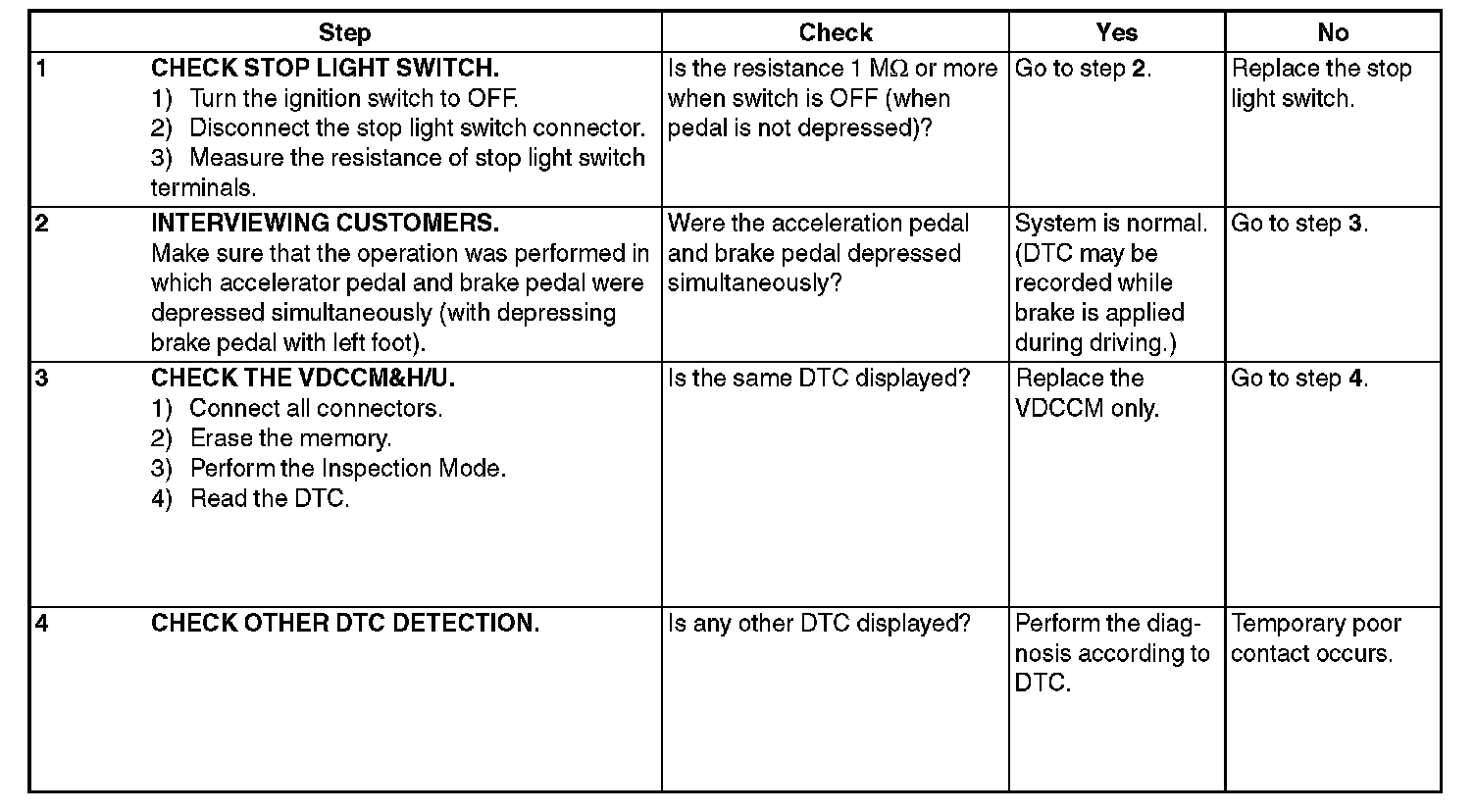

DTC C0054 BLS ON MALFUNCTION

DTC DETECTING CONDITION
Defective stop light switch

TROUBLE SYMPTOM
^ ABS does not operate.
^ VDC does not operate.

WIRING DIAGRAM

WIRING DIAGRAM:




AI: C0054 BLS ON MALFUNCTION:
