Home >> Subaru >> 2007 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C0051

C0051

DTC C0051 VALVE RELAY

DTC DETECTING CONDITION
Defective valve relay

TROUBLE SYMPTOM
^ ABS does not operate.
^ EBD does not operate.
^ VDC does not operate.

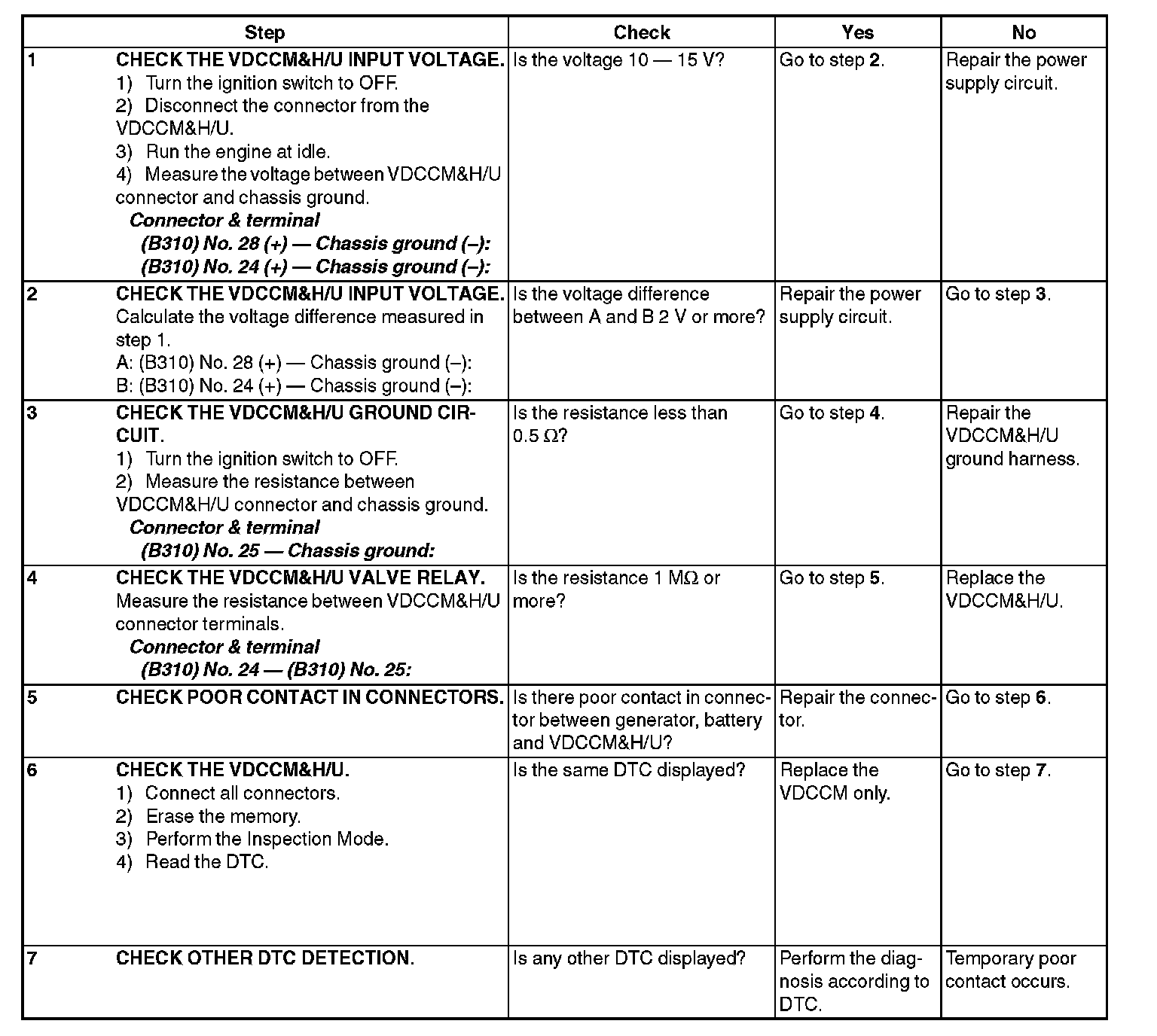

WIRING DIAGRAM

WIRING DIAGRAM:




C0051 VALVE RELAY:
