C0042

DTC C0042 POWER SUPPLY VOLTAGE FAILURE

DTC DETECTING CONDITION:

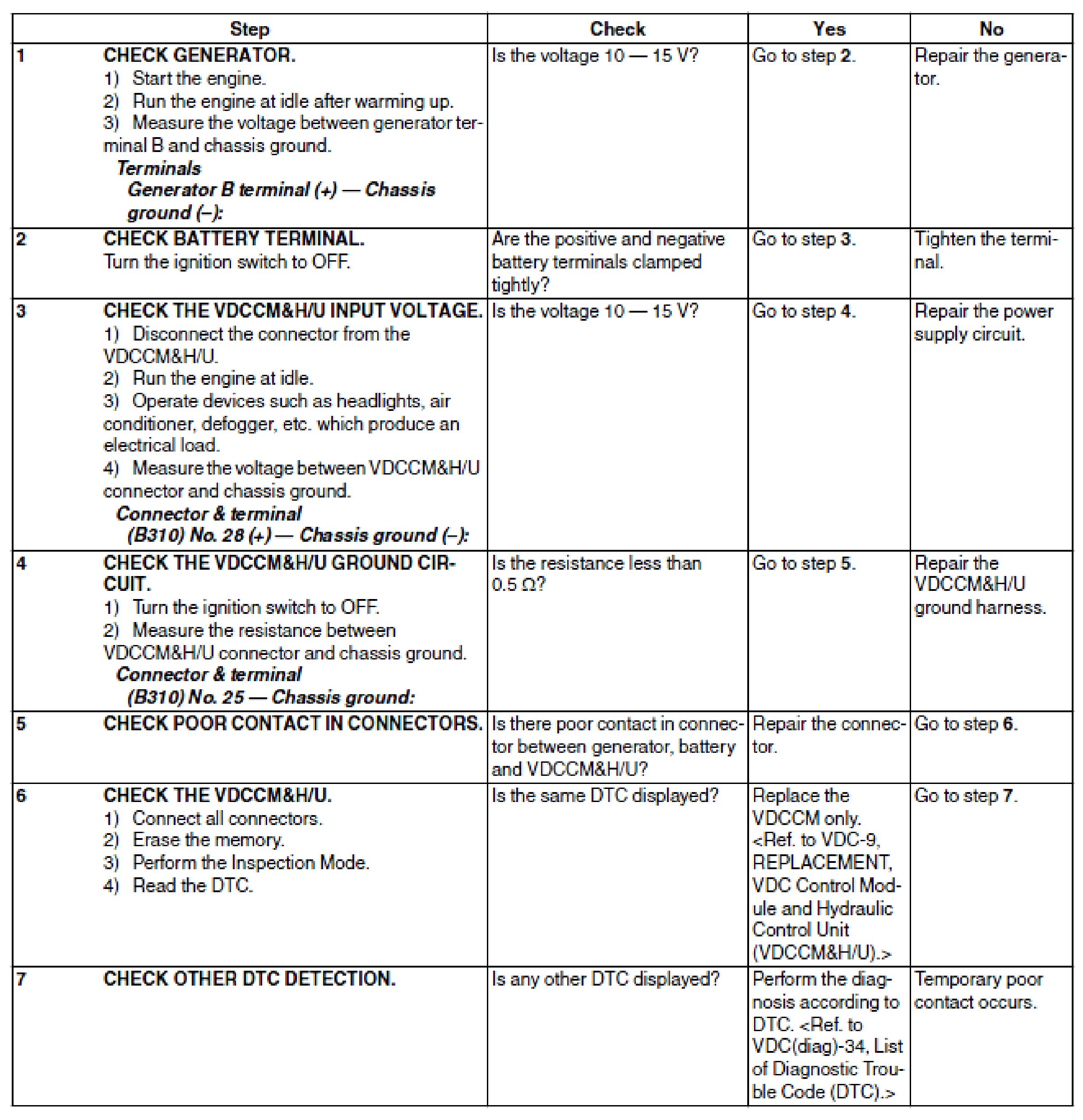

CHECK THE VDCCM&H/U power supply voltage.

TROUBLE SYMPTOM:
- ABS does not operate.
- EBD may not operate.
- VDC does not operate.
NOTE: Warning lights go off if voltage returns.

WIRING DIAGRAM
