C0029
DTC C0029 ANY OF WHEEL SENSORS SIGNALDTC DETECTING CONDITION
^ Defective ABS wheel speed sensor signal (noise, irregular signal, etc.)
^ Defective magnetic encoder
^ When a wheel is turned freely for a long time
TROUBLE SYMPTOM
^ ABS does not operate.
^ VDC does not operate.
^ EBD may not operate.
NOTE: Brake warning light illuminates as well as ABS warning light when EBD does not operate.

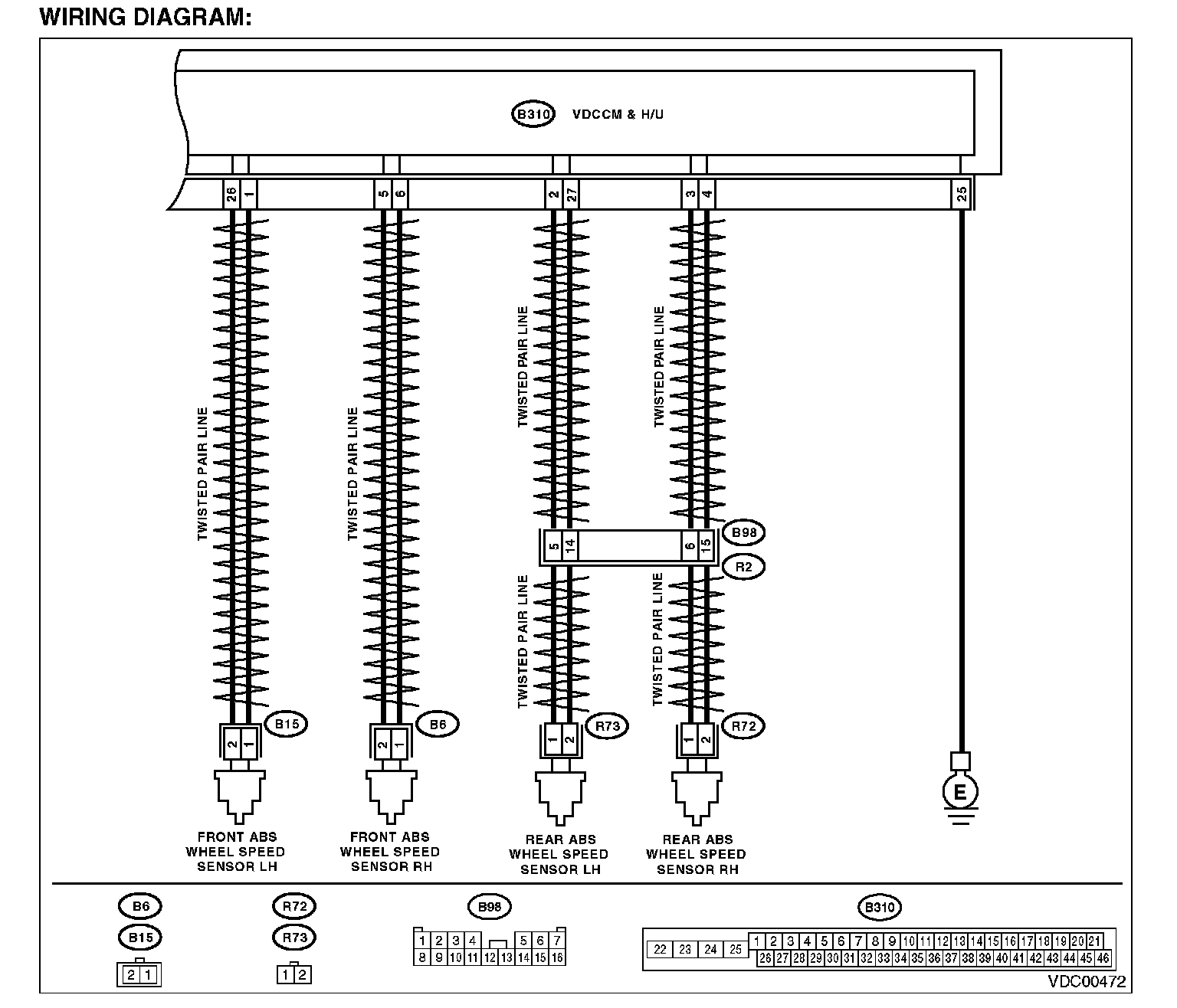

WIRING DIAGRAM
WIRING DIAGRAM:
C0029 ANY OF WHEEL SENSORS SIGNAL (PART 1):
C0029 ANY OF WHEEL SENSORS SIGNAL (PART 2):
