C0028
DTC C0028 REAR LEFT ABS SENSOR SIGNALDTC DETECTING CONDITION
^ Defective ABS wheel speed sensor signal (noise, irregular signal, etc.)
^ Defective harness connector
TROUBLE SYMPTOM
^ ABS does not operate.
^ VDC does not operate.

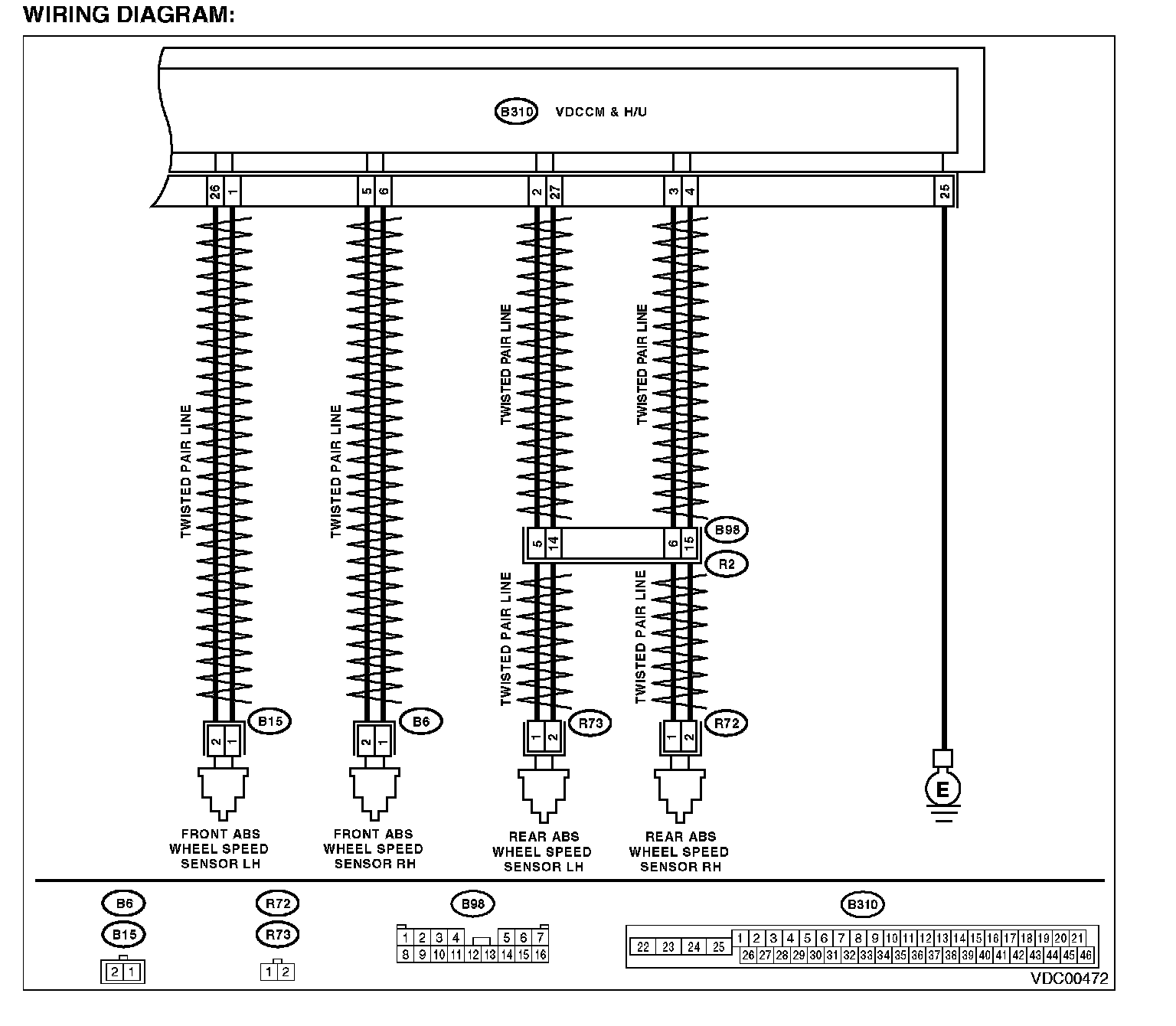

WIRING DIAGRAM
WIRING DIAGRAM:
C0028 REAR LEFT ABS SENSOR SIGNAL (PART 1):
C0028 REAR LEFT ABS SENSOR SIGNAL (PART 2):
