Rear Left ABS Sensor Circuit Open or Short

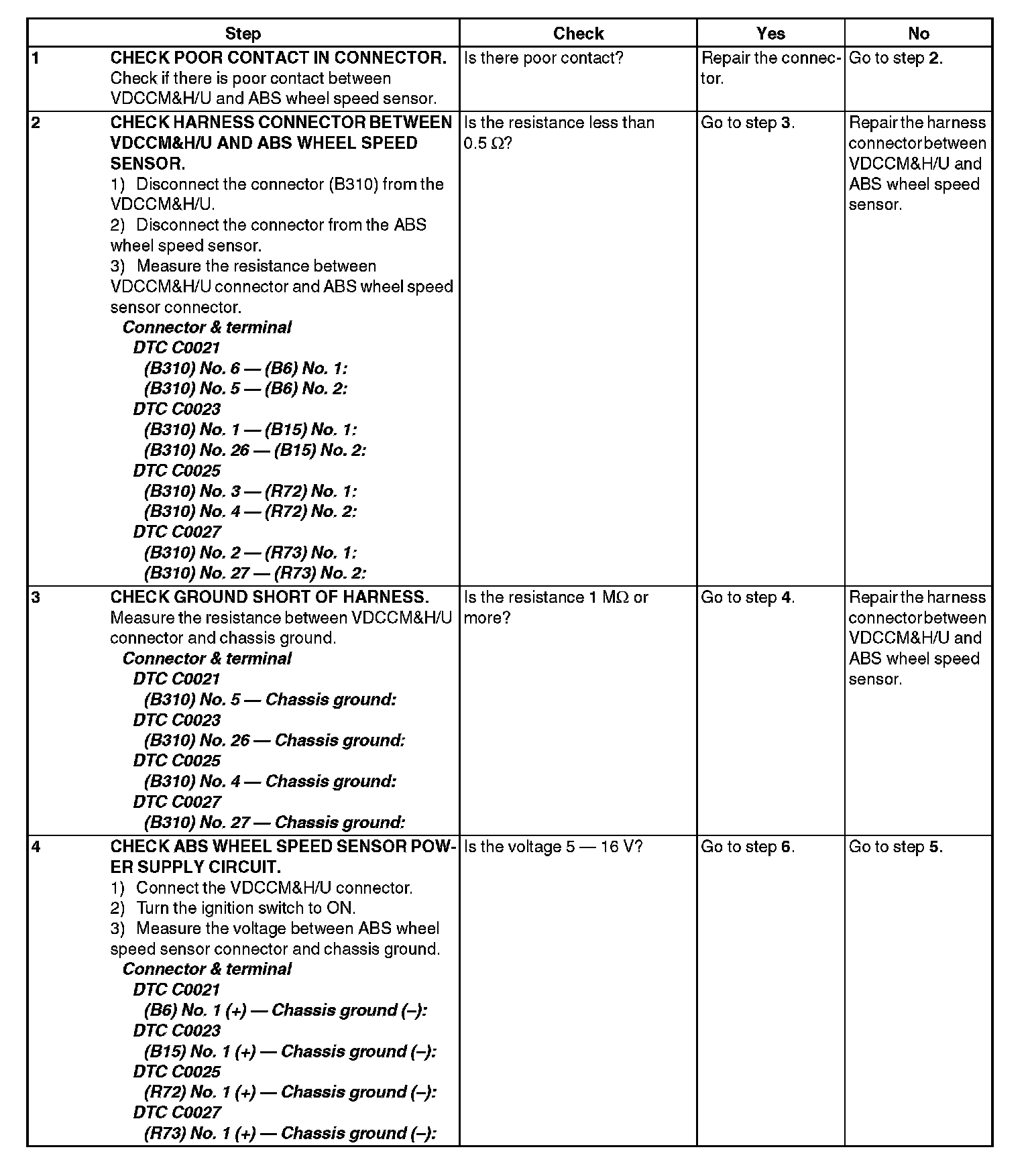

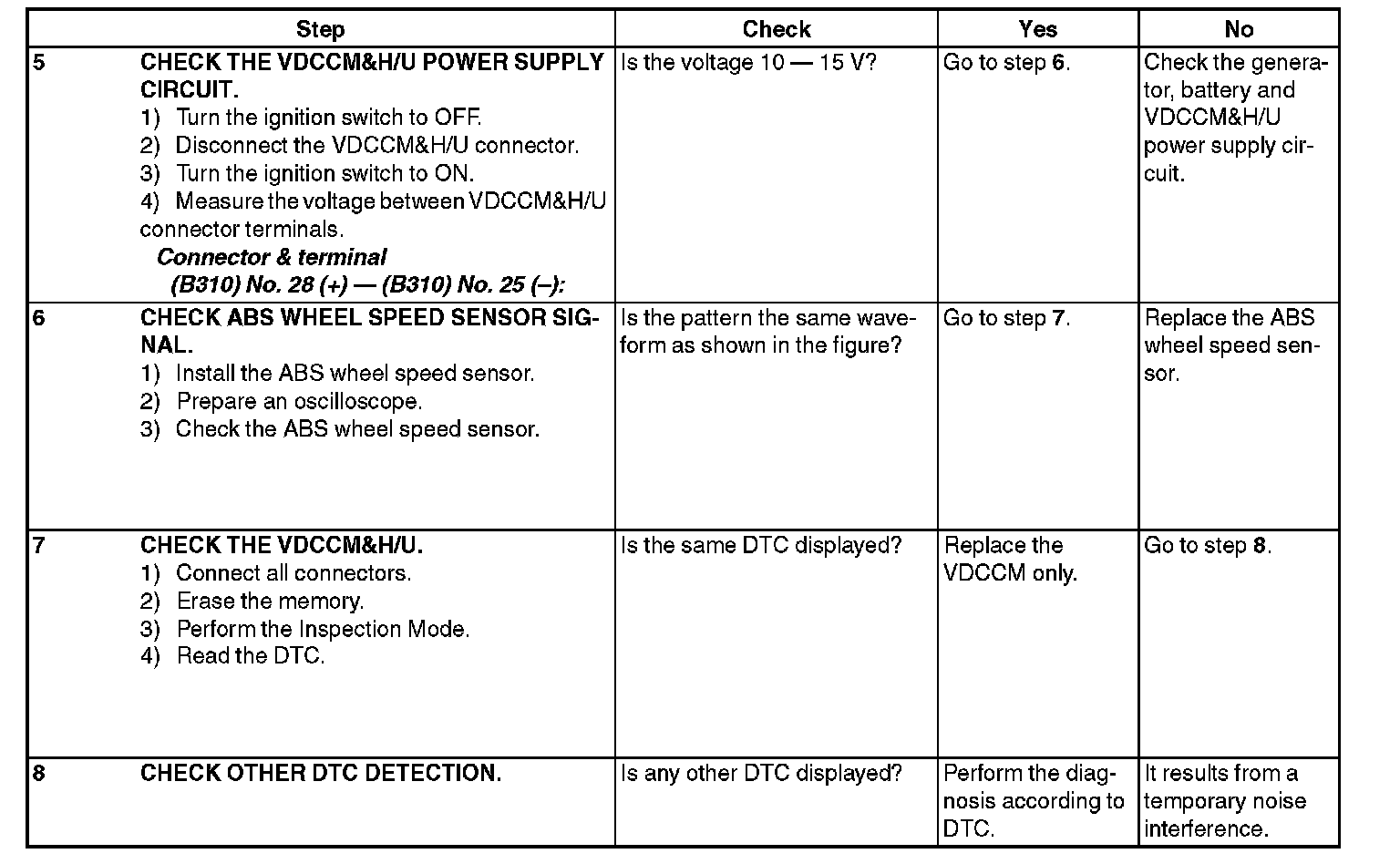

DTC C0027 REAR LEFT ABS SENSOR CIRCUIT OPEN OR SHORTDTC DETECTING CONDITION
^ Defective ABS wheel speed sensor (broken wire, input voltage too high)
^ Defective harness connector
TROUBLE SYMPTOM
^ ABS does not operate.
^ VDC does not operate.

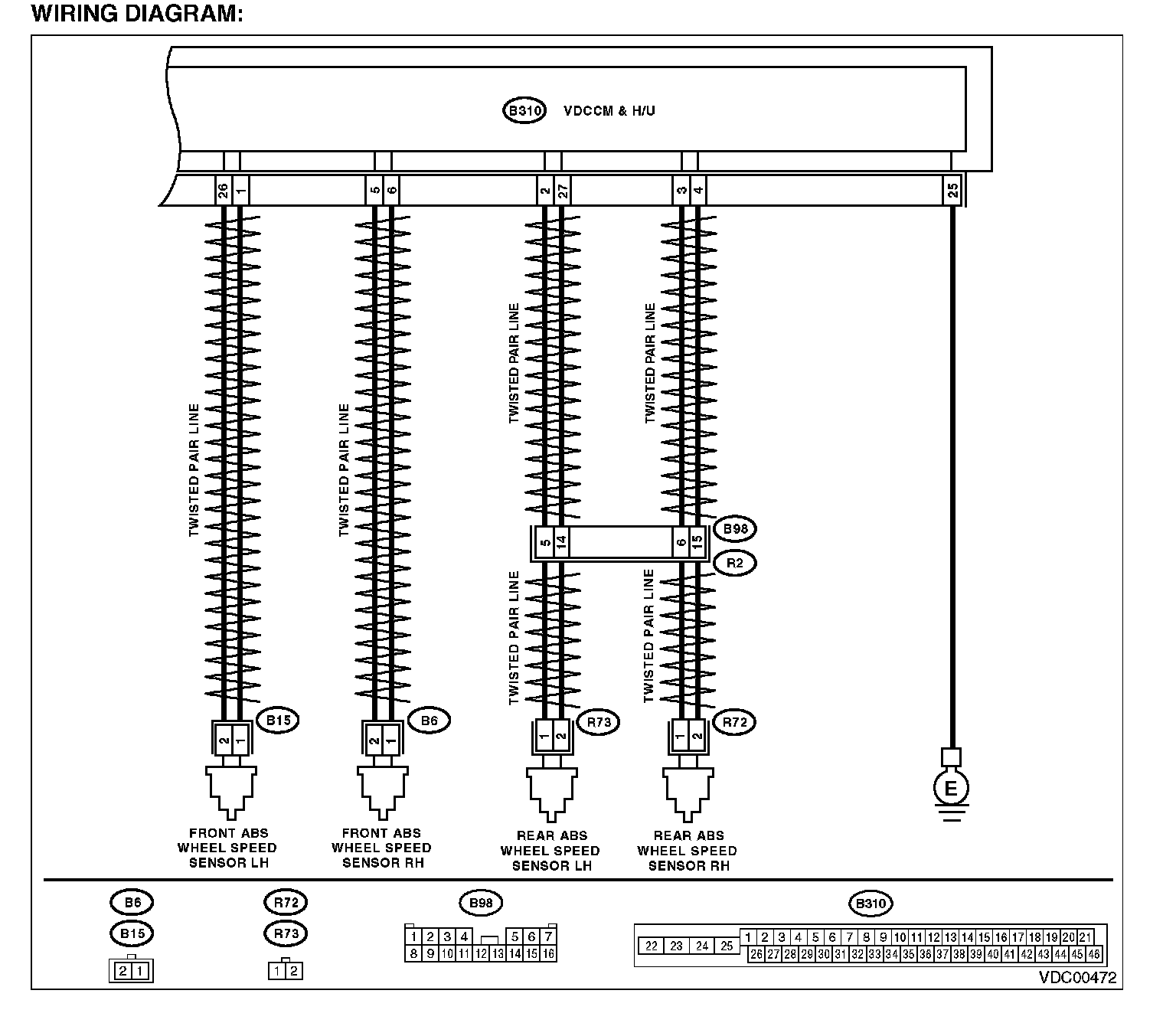

WIRING DIAGRAM
WIRING DIAGRAM:
C0027 REAR LEFT ABS SENSOR CIRCUIT OPEN OR SHORT (PART 1):
C0027 REAR LEFT ABS SENSOR CIRCUIT OPEN OR SHORT (PART 2):
