B1106
DTC B1106 SHIFT LOCK CIRCUIT FAILUREDTC DETECTING CONDITION:
Shift lock circuit is shorted to ground.
TROUBLE SYMPTOM:
Shift lock does not be released or remain locked.
Wiring Diagram:
WIRING DIAGRAM

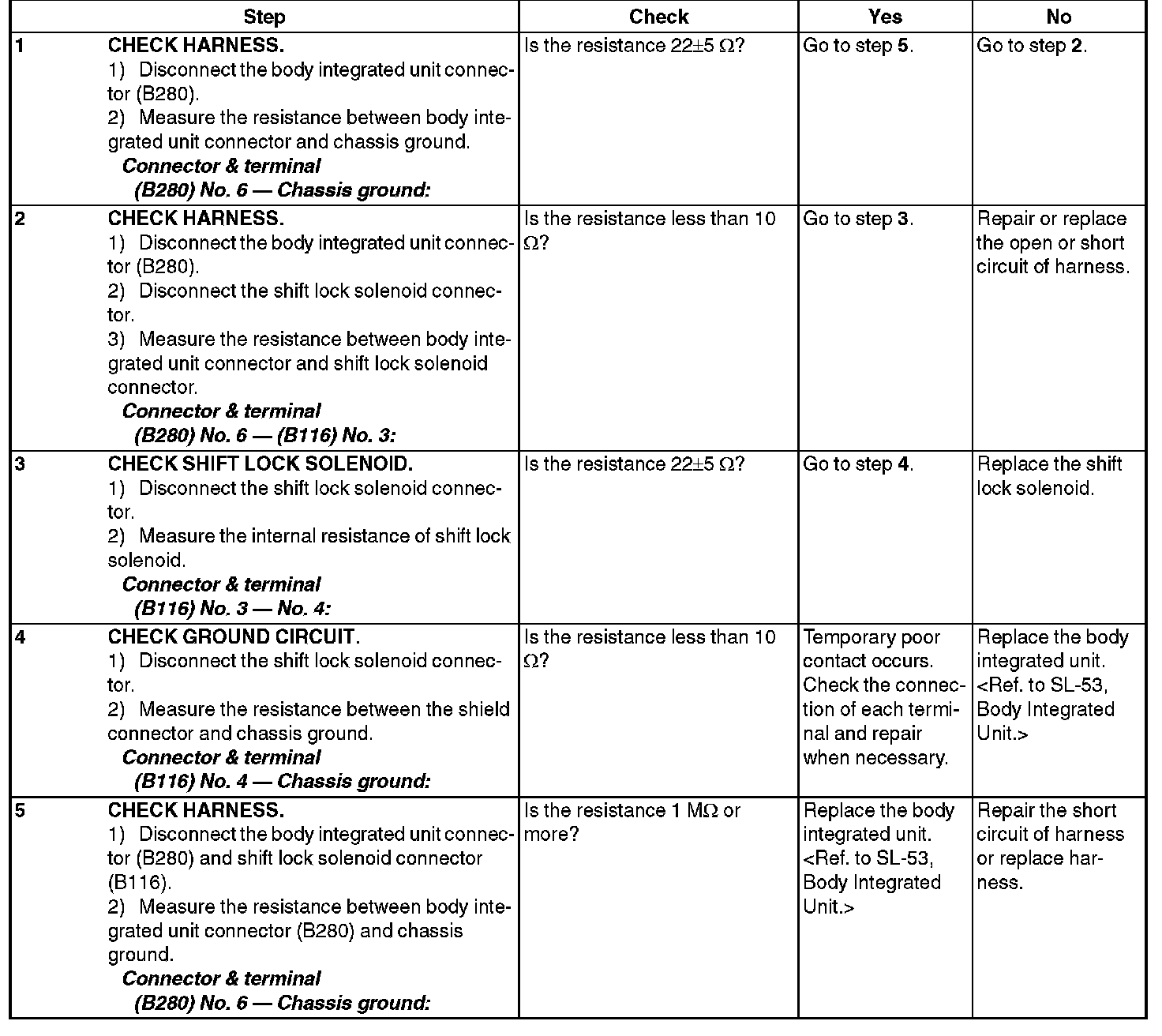

Step 1-5:
DTC DETECTING CONDITION:
Shift lock circuit is shorted to ground.
TROUBLE SYMPTOM:
Shift lock does not be released or remain locked.
WIRING DIAGRAM
