B1101

DTC B1101 BATT P/SUPPLY MALFUNCTION CONT

DTC DETECTING CONDITION:

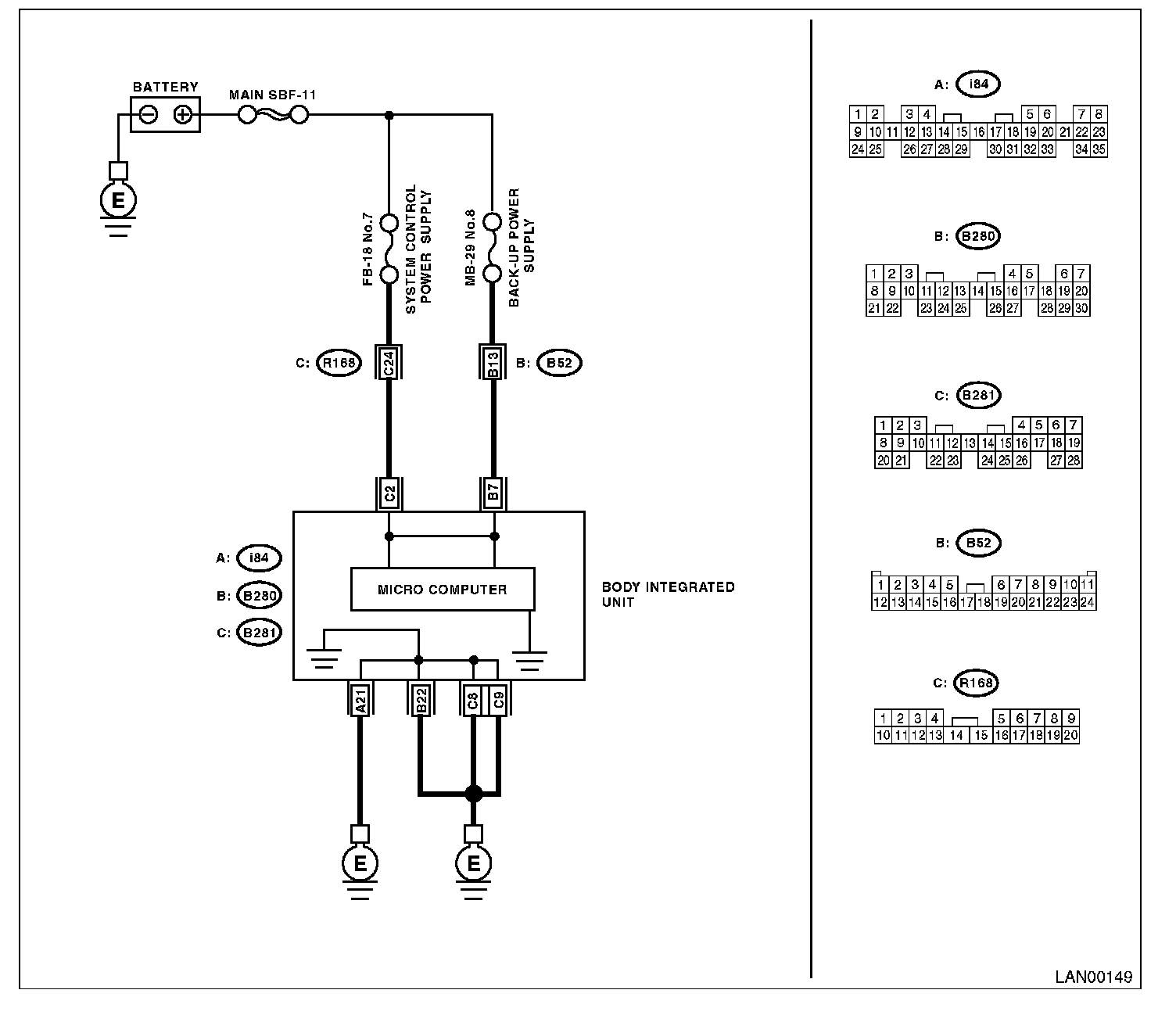

Battery power supply control circuit is open or shorted.

TROUBLE SYMPTOM:
No malfunction occurs because the back-up power supply is activated.

NOTE: When B1102 BATT p/supply (backup) malfunction is output at the same time, all the function of body integrated unit may not operate.
