Airbag System: General Description: Caution

When servicing a vehicle, be sure to turn the ignition switch to OFF, disconnect the ground cable from battery, and wait for more than 20 seconds before starting work.
The airbag system is fitted with a backup power source. After disconnecting the battery ground cable, the airbag may deploy if you do not wait for more than 20 seconds before starting the service of airbag system.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
If the airbag warning light illuminates, repair the vehicle immediately. Otherwise, the airbag or pre-tensioner may inflate incorrectly, or not inflate in collision.
If sensors, airbag module, airbag control module, pretensioner or harness is deformed or damaged, replace with new part.

Fig 2: Precaution For - Sensors, Airbag Module, Airbag Control Module, Pretensioner Or Harness
Courtesy of SUBARU OF AMERICA, INC.
When checking the airbag system, be sure to use a digital circuit tester. Use of an analog circuit tester may cause the airbag to activate erroneously due to a minimal current inside tester.

Fig 3: Precaution For - Checking Airbag System
Courtesy of SUBARU OF AMERICA, INC.
When checking, use a test harness (1). Damage to connector terminal cause malfunction. Do not directly apply the tester probe to connector terminal of airbag.

Fig 4: Precaution For - Test Harness
Courtesy of SUBARU OF AMERICA, INC.
Do not allow water or oil to come in contact with the connector terminals. Also do not touch the connector terminals.

Fig 5: Precaution For - Airbag System Parts
Courtesy of SUBARU OF AMERICA, INC.
Do not check continuity of the airbag modules for driver's side, passenger's side and curtain, or the pretensioner.

Fig 6: Precaution For - Do Not Use Soldering Equipment To Repair
Courtesy of SUBARU OF AMERICA, INC.
If damage, open circuit or rust is found on airbag system wiring harness, do not use a soldering equipment to repair. Replace the faulty harness with a new genuine part.

Fig 7: Precaution For - Airbag System Wiring Harness
Courtesy of SUBARU OF AMERICA, INC.
Install the wiring harness securely with the specified clips to avoid interference or tangled with other parts.

Fig 8: Precaution For - Wiring Harness Clips
Courtesy of SUBARU OF AMERICA, INC.
When painting or performing sheet metal work on the front part of the vehicle, including the front wheel apron, front fender and front side frame, remove the front sub sensors and wiring harness of airbag system.
When painting or performing sheet metal work on the side of the vehicle, including the side sill, center pillar and front and rear doors, remove the side airbag sensors and wiring harness of the air-bag system.

Fig 9: Precaution For - Curtain Airbag Modules
Courtesy of SUBARU OF AMERICA, INC.
Do not use the airbag or pretensioner parts from other vehicles. Always replace the defective parts with new parts.
Never reuse a deployed airbag module and pretensioner.
Do not discard the uninflated airbag or pretensioner.
When airbag control module, front sub sensor, side airbag sensor and curtain airbag sensor are removed, do not reuse the bolts and nuts of them. Always use new bolts and nuts for them.
Do not drop each airbag module, airbag control module and each sensor, or store these parts under high temperature over 93°C (199°F), or let water, oil or grease get on them; the internal parts may be damaged or the reliability may be greatly lowered.

Fig 10: Caution For Keeping Airbag Module
Courtesy of SUBARU OF AMERICA, INC.
After removal of each parts for airbag system, keep them with the pad facing upward on a dry, clean and flat surface without heat, light sources, moisture and dust.

Fig 11: Precaution For - Do Not Checking Continuity Of Airbag Modules
Courtesy of SUBARU OF AMERICA, INC.
Do not disassemble driver's airbag module, passenger's airbag module, side or curtain airbag modules, or pretensioner.

Fig 12: Precaution For Not Disassemble Airbag Modules
Courtesy of SUBARU OF AMERICA, INC.
When performing attachment of the steering wheel and steering roll connector, make sure to perform adjustment of the steering roll connector.
The removed front seat with airbag module must be kept at least 200 mm (8 in) away from walls and other objects.

Fig 13: Precaution For - Painting Or Performing Sheet Metal Work
Courtesy of SUBARU OF AMERICA, INC.

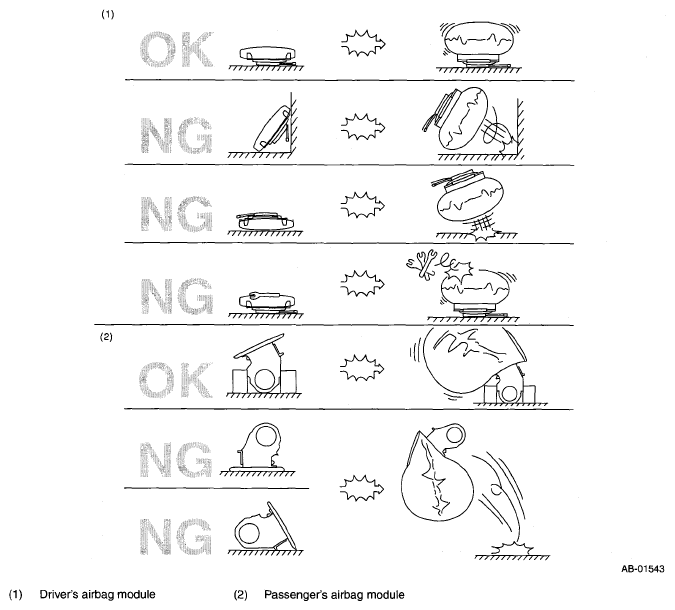

When storing a removed airbag module, do not place the airbag with its pad side facing downward. Do not place any objects on the airbag module. Do not pile up the airbag module. If the airbag inflates for some reason when an airbag module pad is touching other objects, it may cause serious accident.

Fig 14: Precaution For Removed Airbag Module
Courtesy of SUBARU OF AMERICA, INC.
