Rearview Camera System: Wiring Diagram

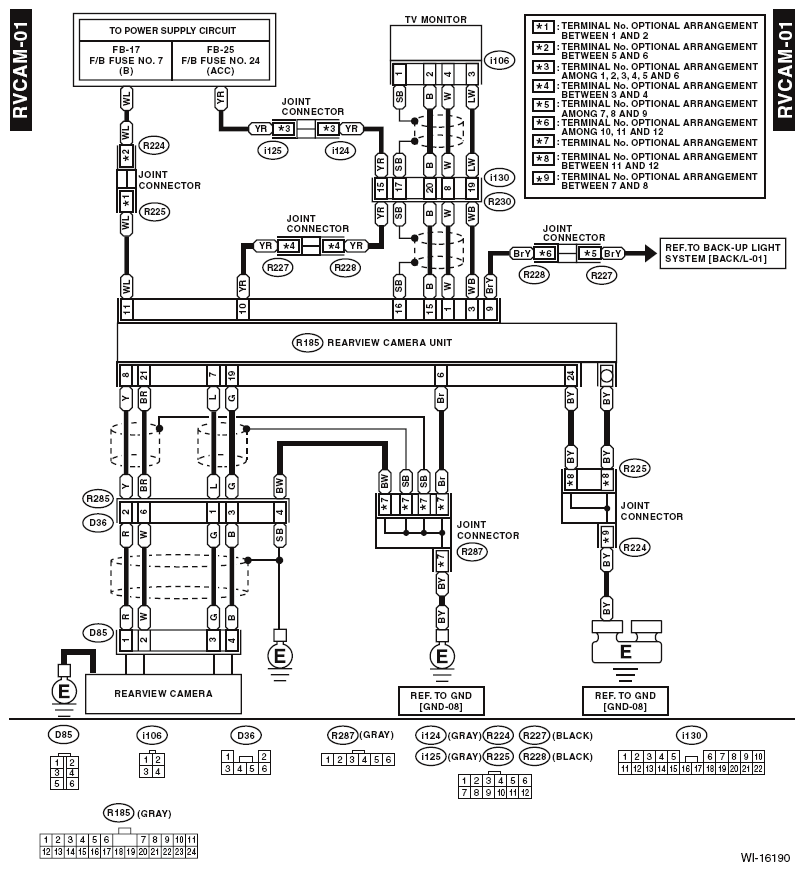

Fig 1: Rearview Camera System Wiring Diagram

G11902166

Courtesy of SUBARU OF AMERICA, INC.
