Rear Entertainment System: Wiring Diagram

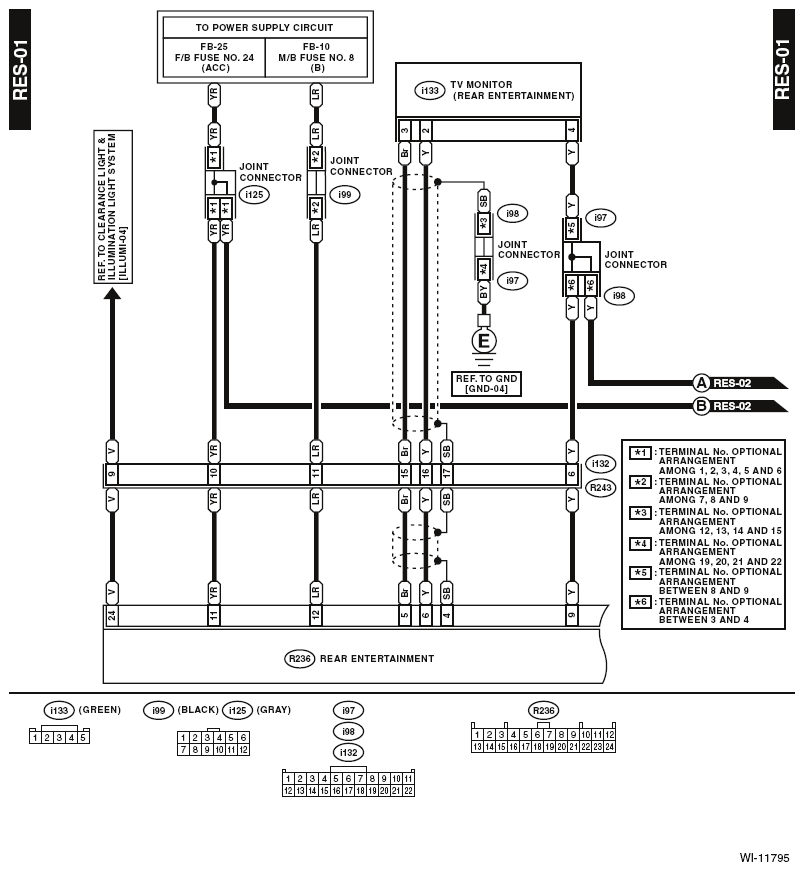

Fig 1: Rear Entertainment System Wiring Diagram (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

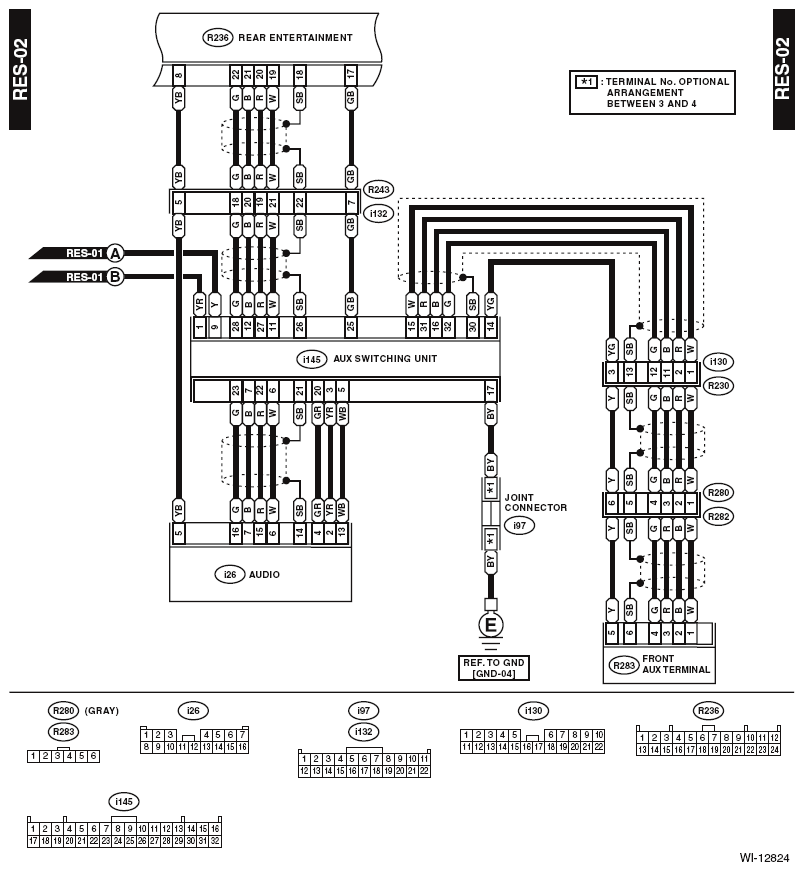

Fig 2: Rear Entertainment System Wiring Diagram (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

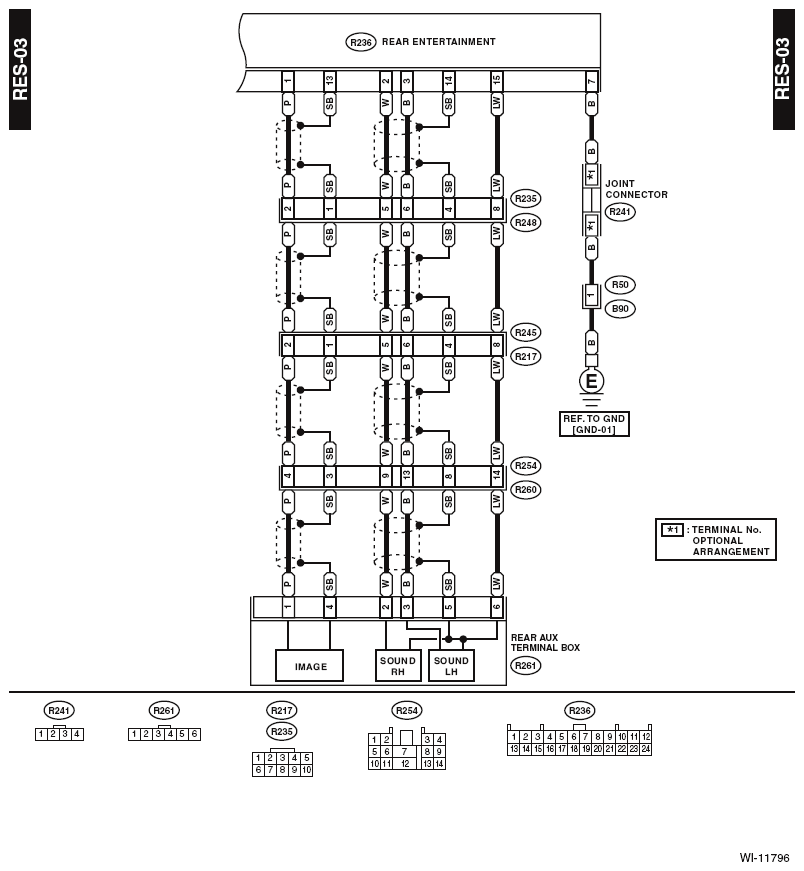

Fig 3: Rear Entertainment System Wiring Diagram (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
