Rear Differential Oil Temperature Warning Light System: Wiring Diagram

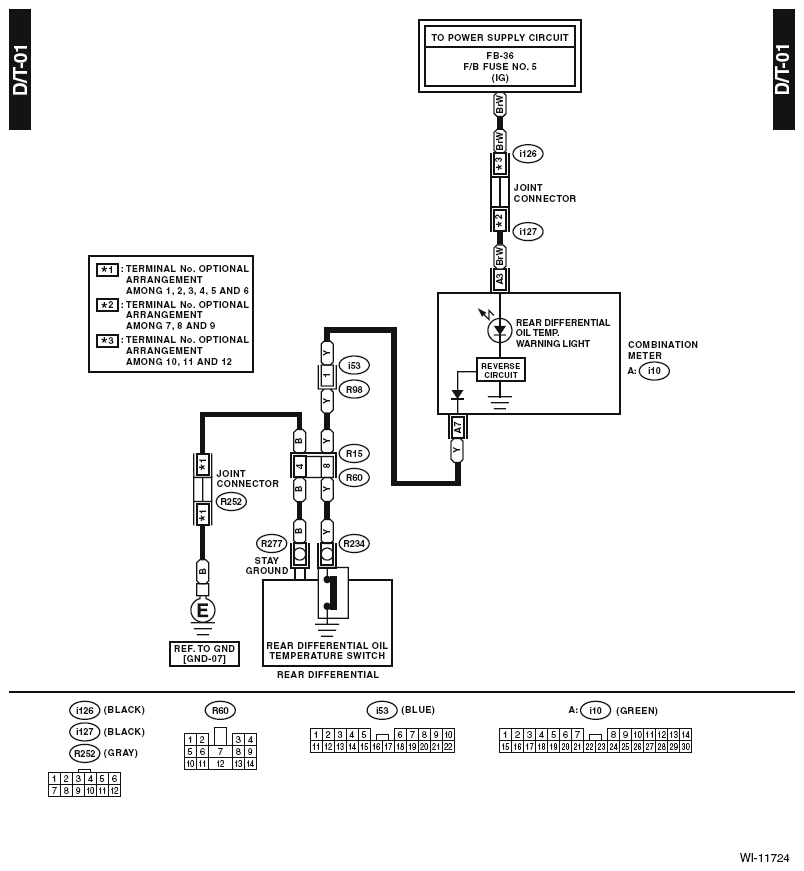

Fig 1: Rear Differential Oil Temperature Warning Light System Wiring Diagram

G11902199

Courtesy of SUBARU OF AMERICA, INC.
