Power Supply Circuit: Wiring Diagram

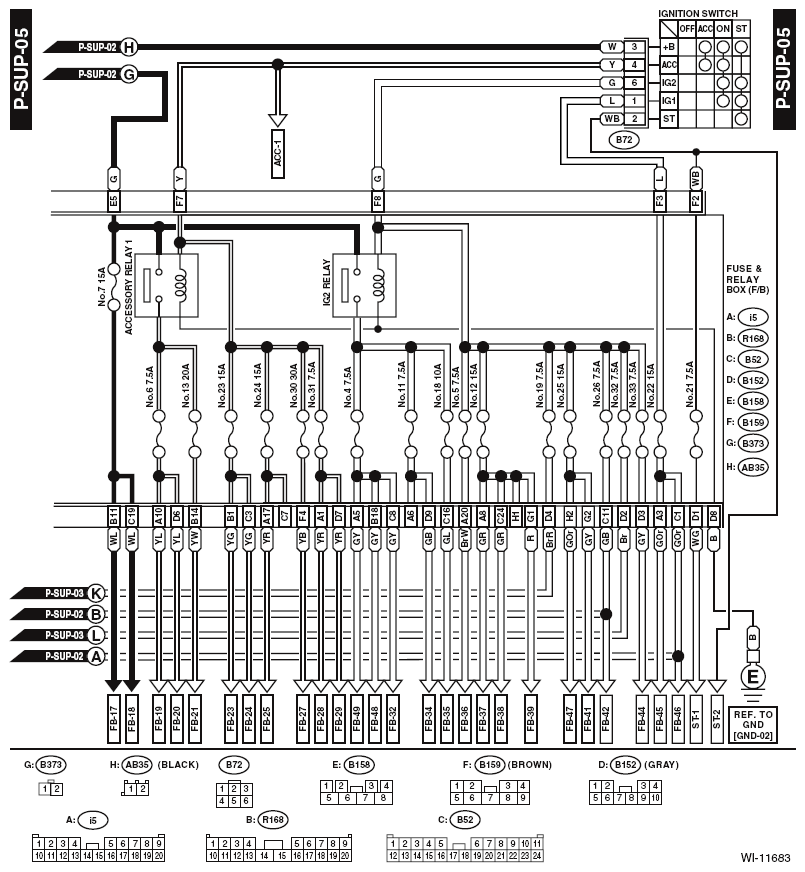

Fig 1: Power Supply Circuit Diagram (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

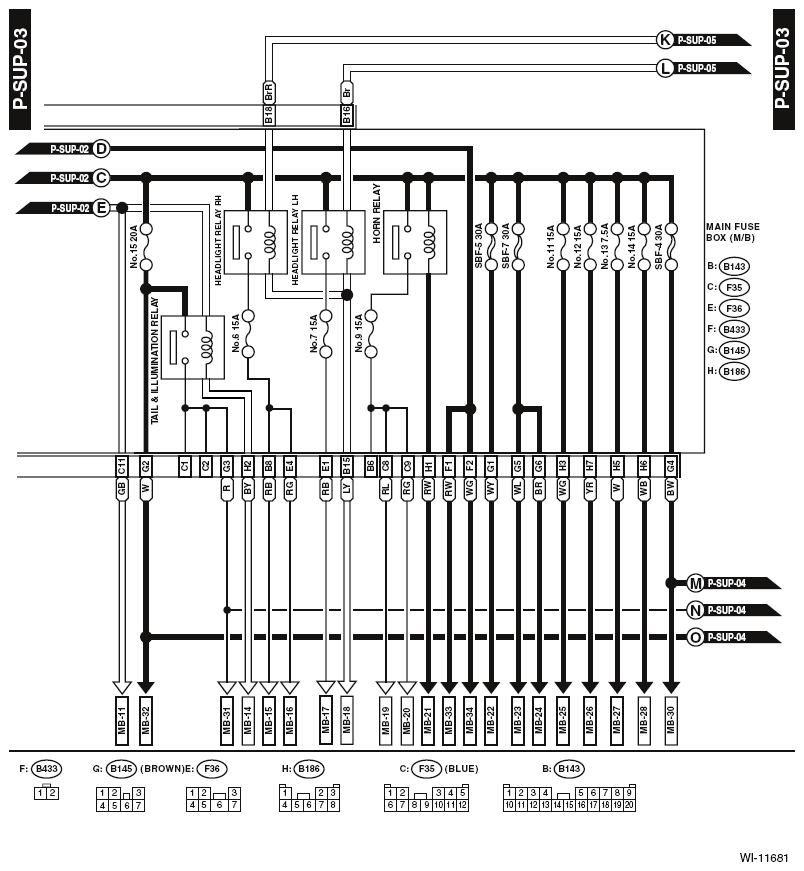

Fig 2: Power Supply Circuit Diagram (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

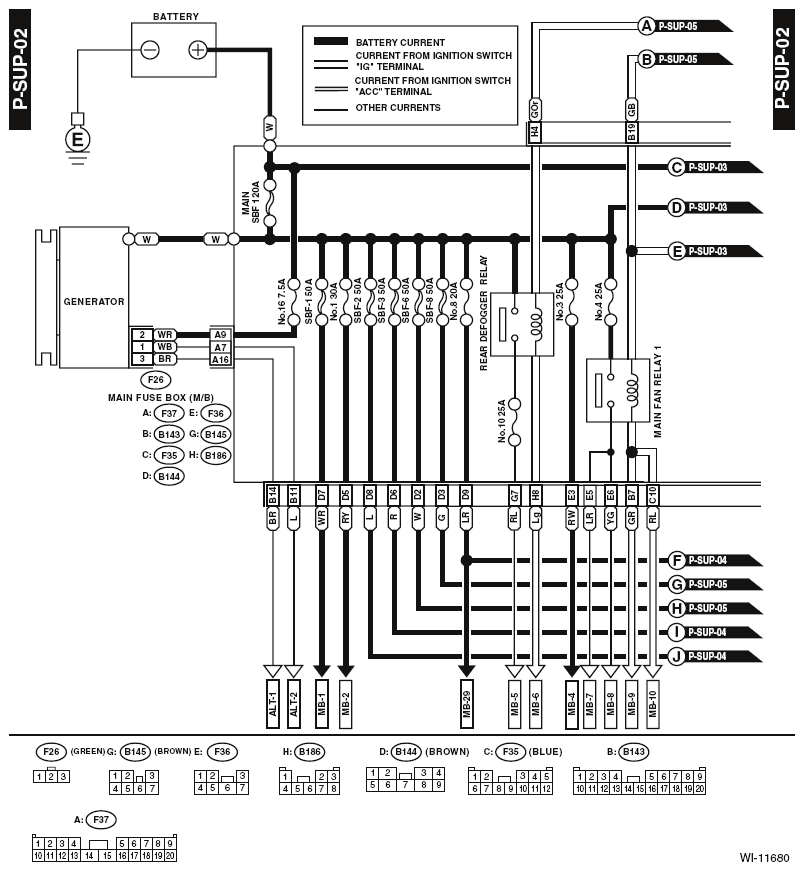

Fig 3: Power Supply Circuit Diagram (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

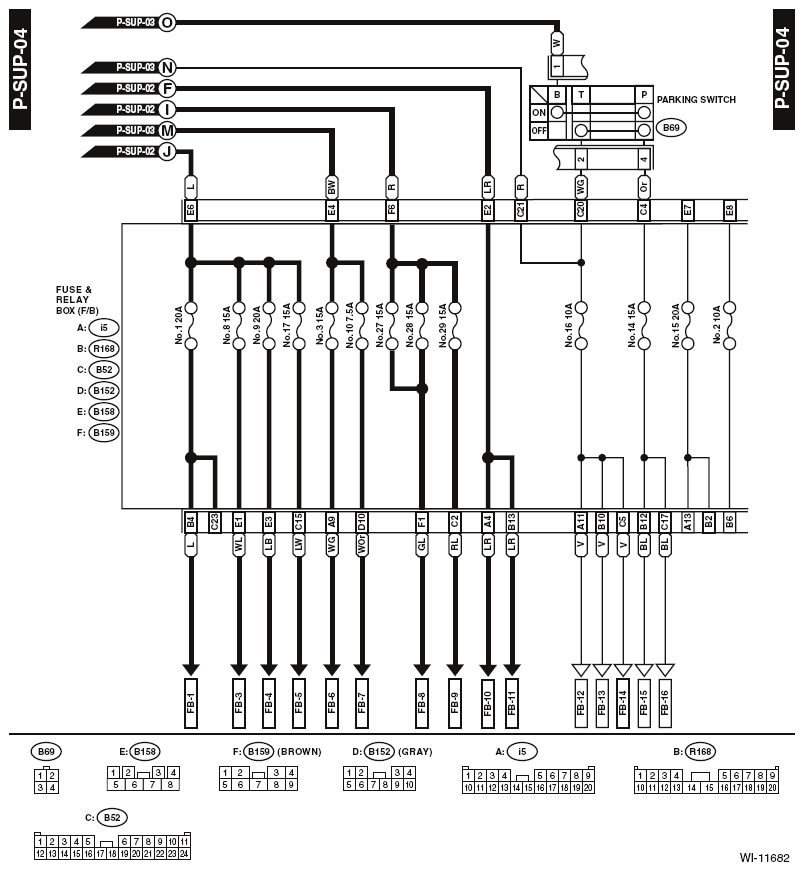

Fig 4: Power Supply Circuit Diagram (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
