Parking Brake/Brake Fluid Level Warning Light System: Wiring Diagram

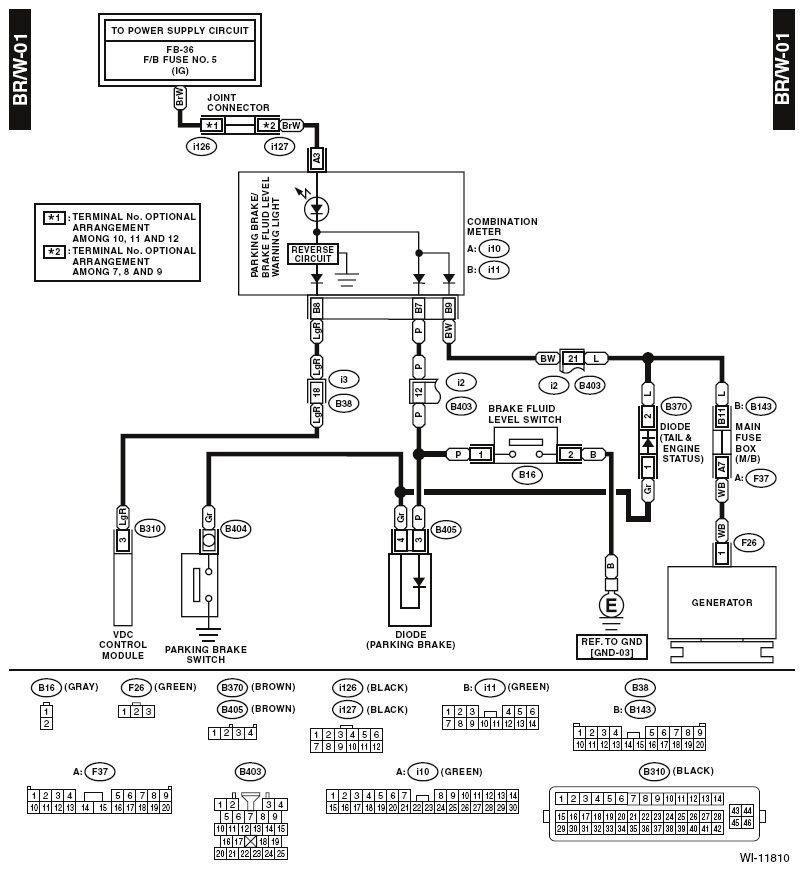

Fig 1: Parking Brake/Brake Fluid Level Warning Light System Wiring Diagram

G11902190

Courtesy of SUBARU OF AMERICA, INC.
