Headlight System: Wiring Diagram

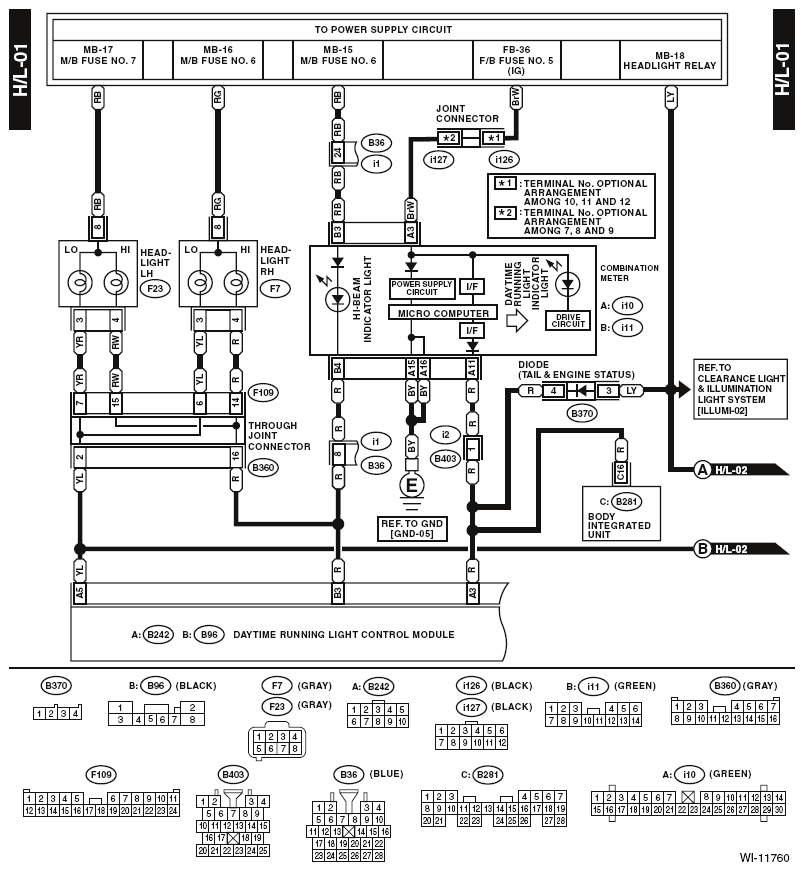

Fig 1: Headlight System Wiring Diagram (1 Of 3)
G11902135Courtesy of SUBARU OF AMERICA, INC.

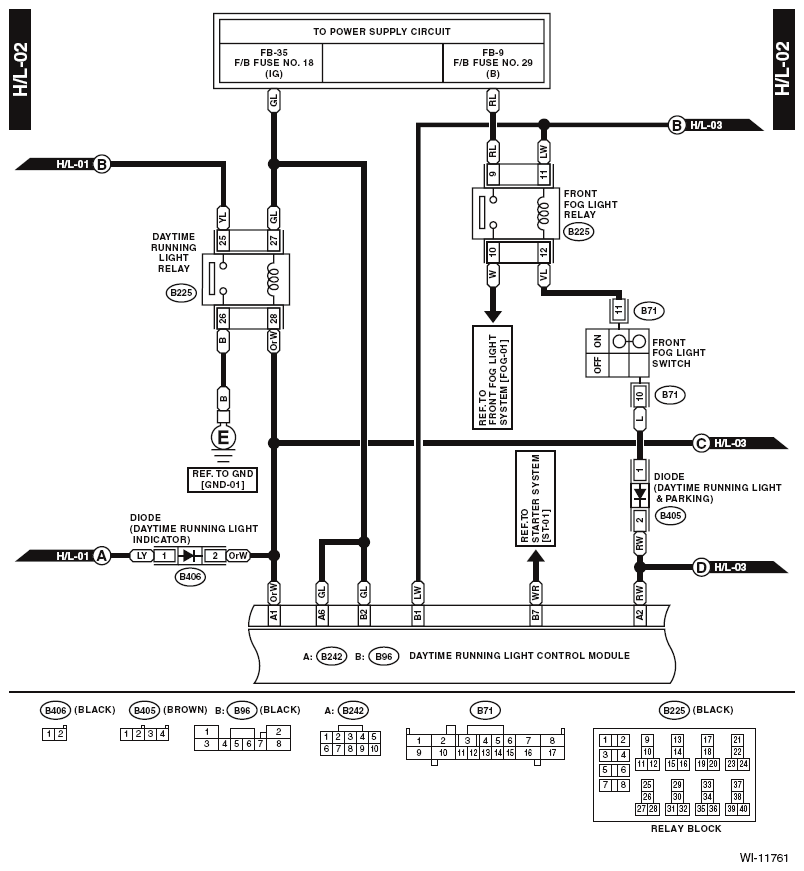

Fig 2: Headlight System Wiring Diagram (2 Of 3)
G11902136Courtesy of SUBARU OF AMERICA, INC.

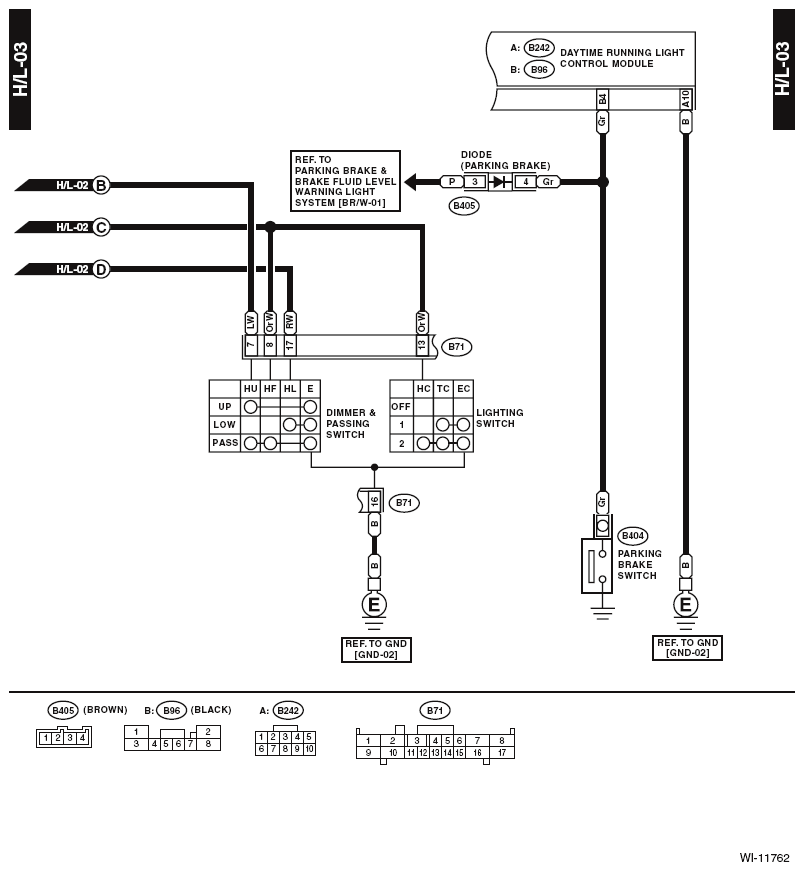

Fig 3: Headlight System Wiring Diagram (3 Of 3)
G11902137Courtesy of SUBARU OF AMERICA, INC.
