Ground Circuit: Wiring Diagram

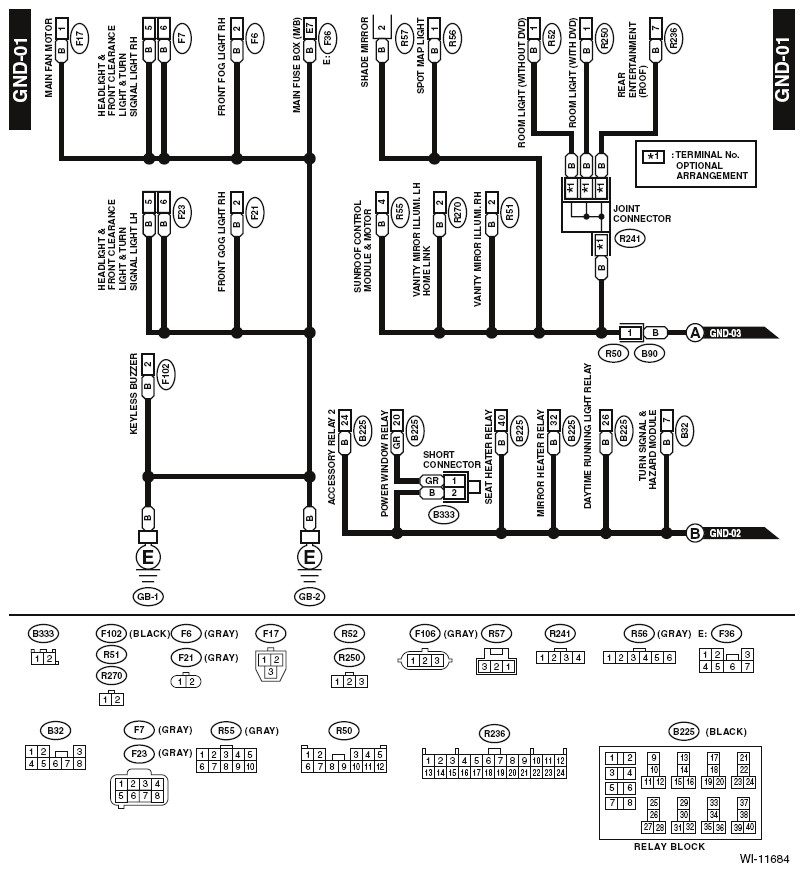

Fig 1: Ground Circuit Wiring Diagram (1 Of 10)

G11902066

Courtesy of SUBARU OF AMERICA, INC.

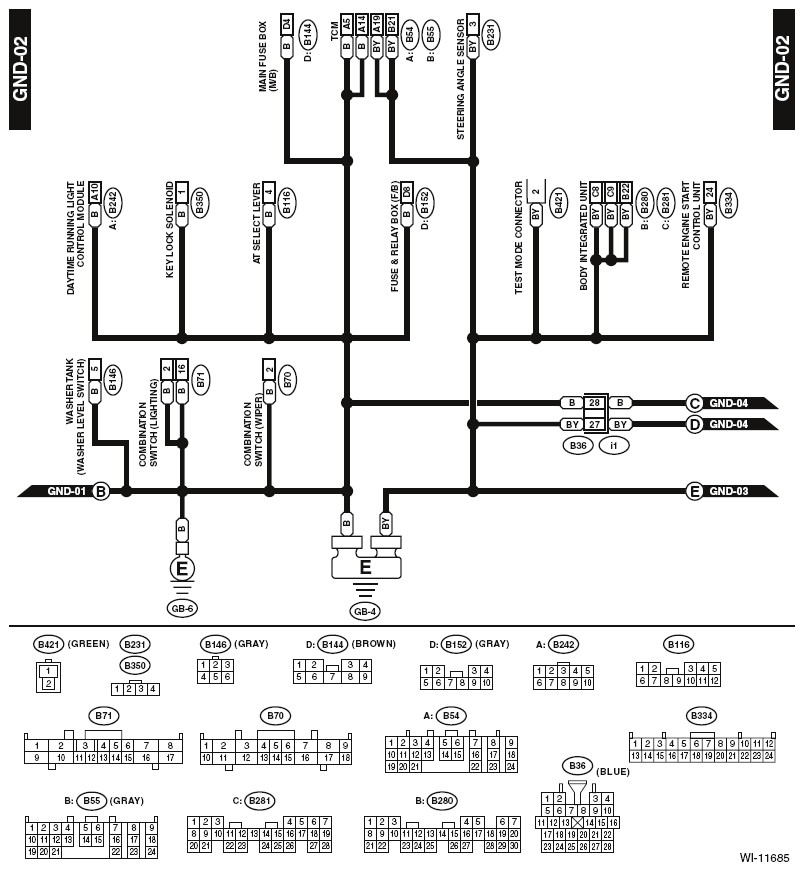

Fig 2: Ground Circuit Wiring Diagram (2 Of 10)

G11902067

Courtesy of SUBARU OF AMERICA, INC.

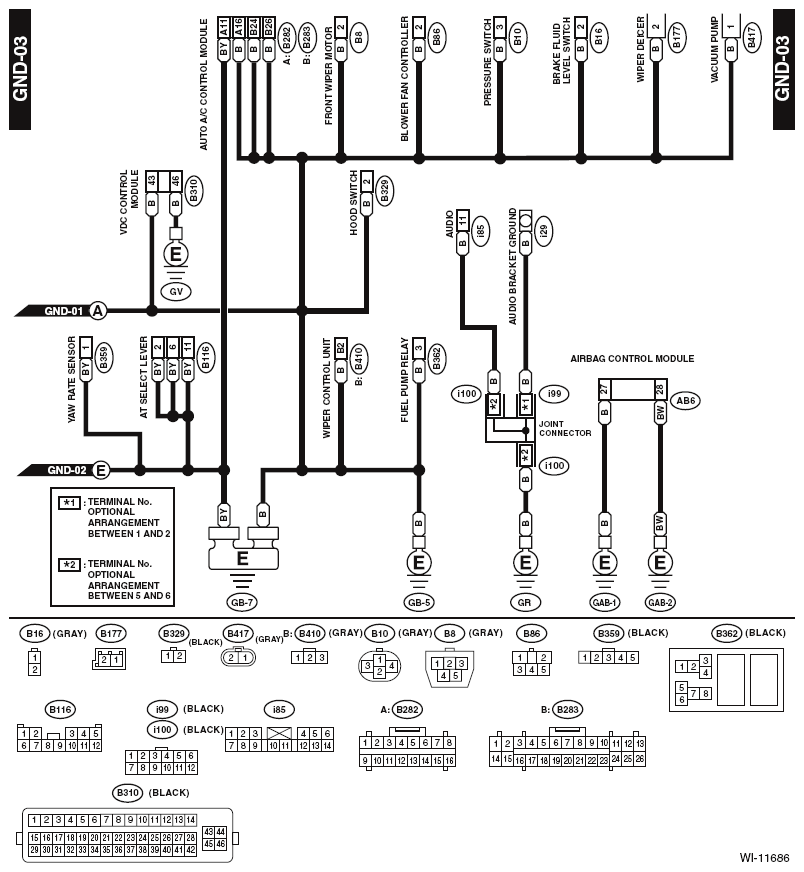

Fig 3: Ground Circuit Wiring Diagram (3 Of 10)

G11902068

Courtesy of SUBARU OF AMERICA, INC.

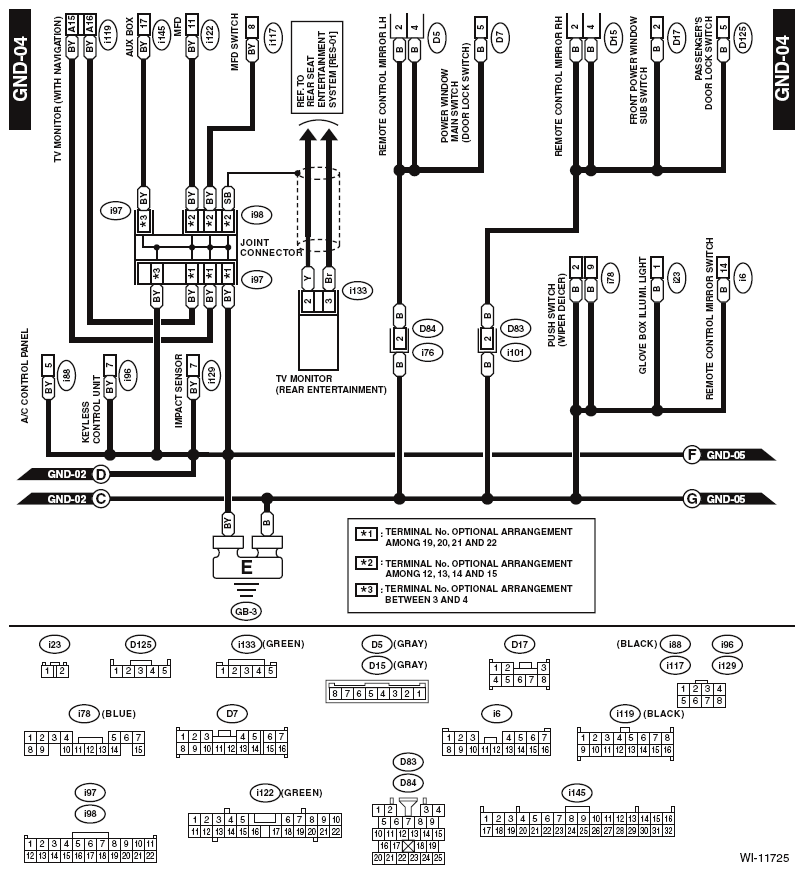

Fig 4: Ground Circuit Wiring Diagram (4 Of 10)

G11902069

Courtesy of SUBARU OF AMERICA, INC.

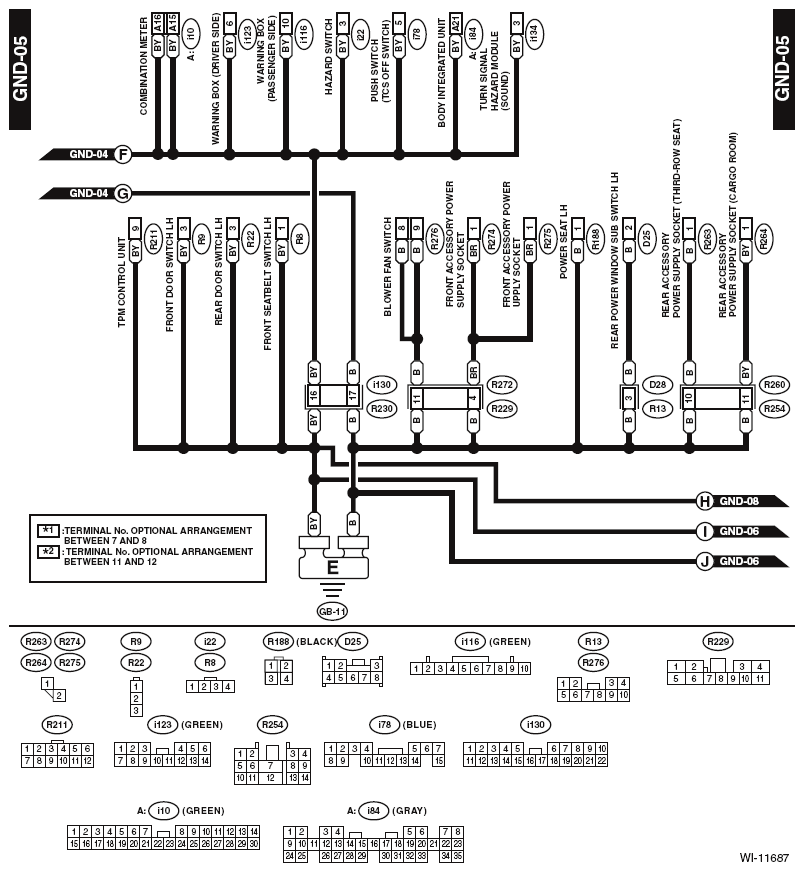

Fig 5: Ground Circuit Wiring Diagram (5 Of 10)

G11902070

Courtesy of SUBARU OF AMERICA, INC.

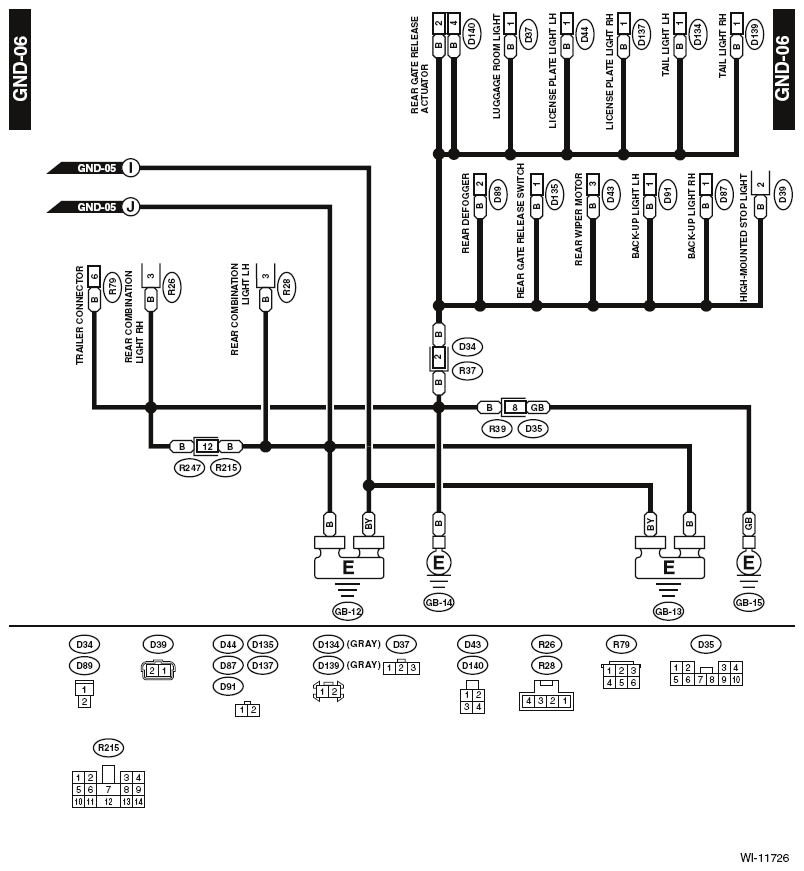

Fig 6: Ground Circuit Wiring Diagram (6 Of 10)

G11902071

Courtesy of SUBARU OF AMERICA, INC.

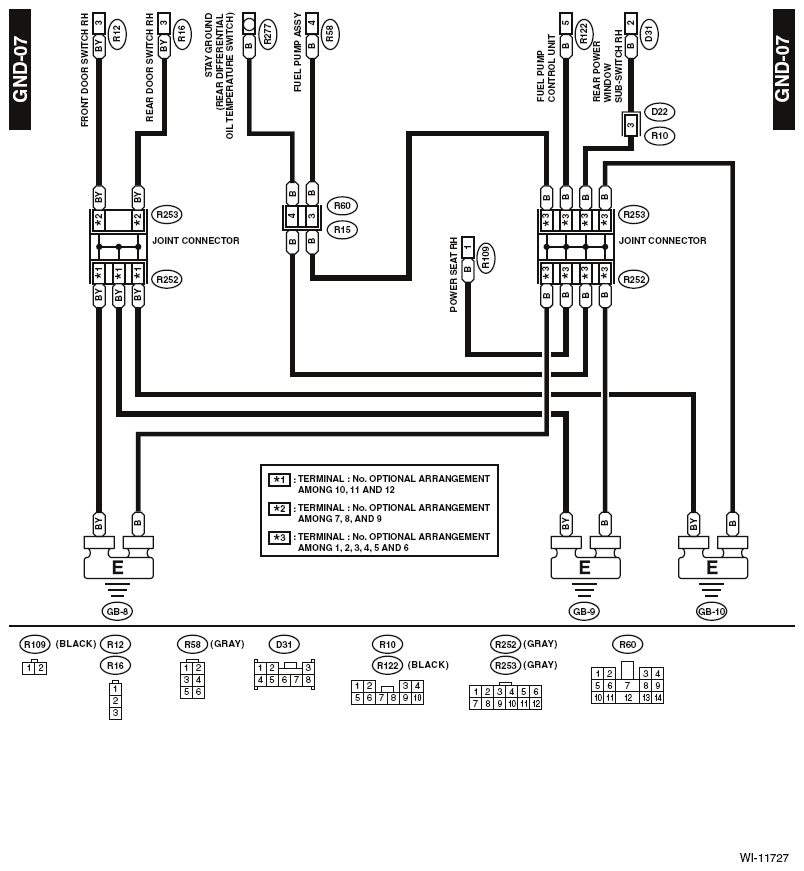

Fig 7: Ground Circuit Wiring Diagram (7 Of 10)

G11902072

Courtesy of SUBARU OF AMERICA, INC.

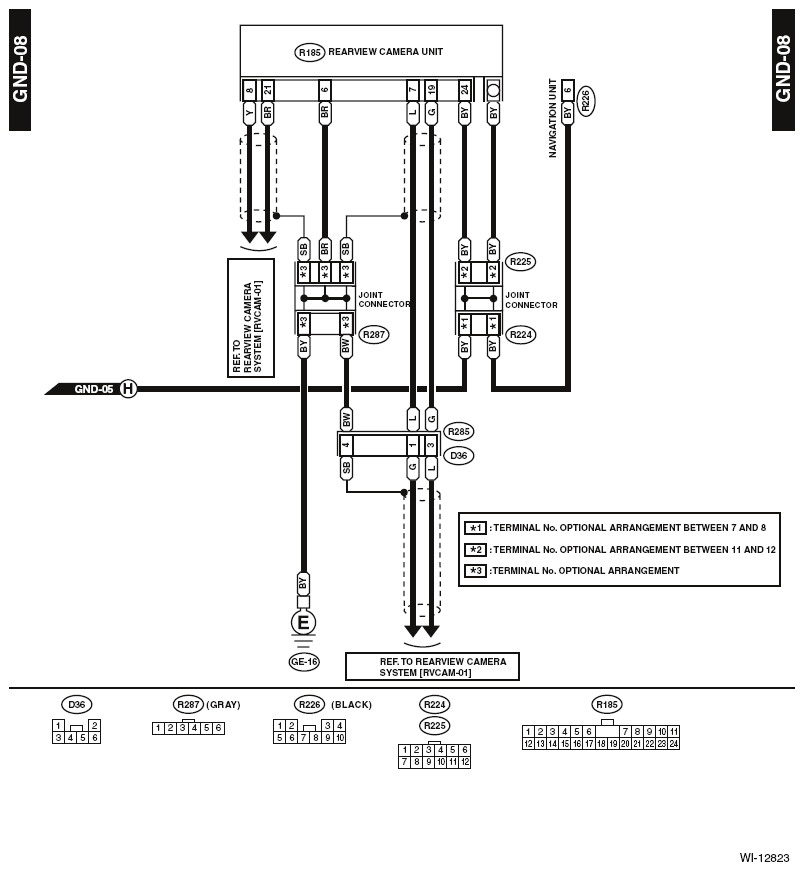

Fig 8: Ground Circuit Wiring Diagram (8 Of 10)

G11902073

Courtesy of SUBARU OF AMERICA, INC.

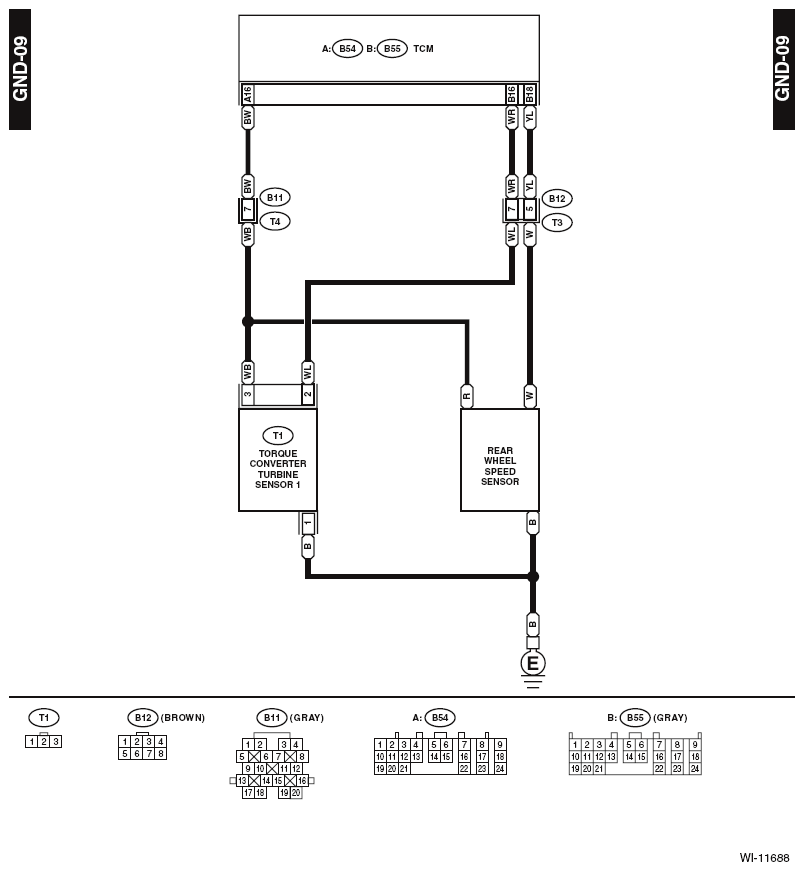

Fig 9: Ground Circuit Wiring Diagram (9 Of 10)

G11902074

Courtesy of SUBARU OF AMERICA, INC.

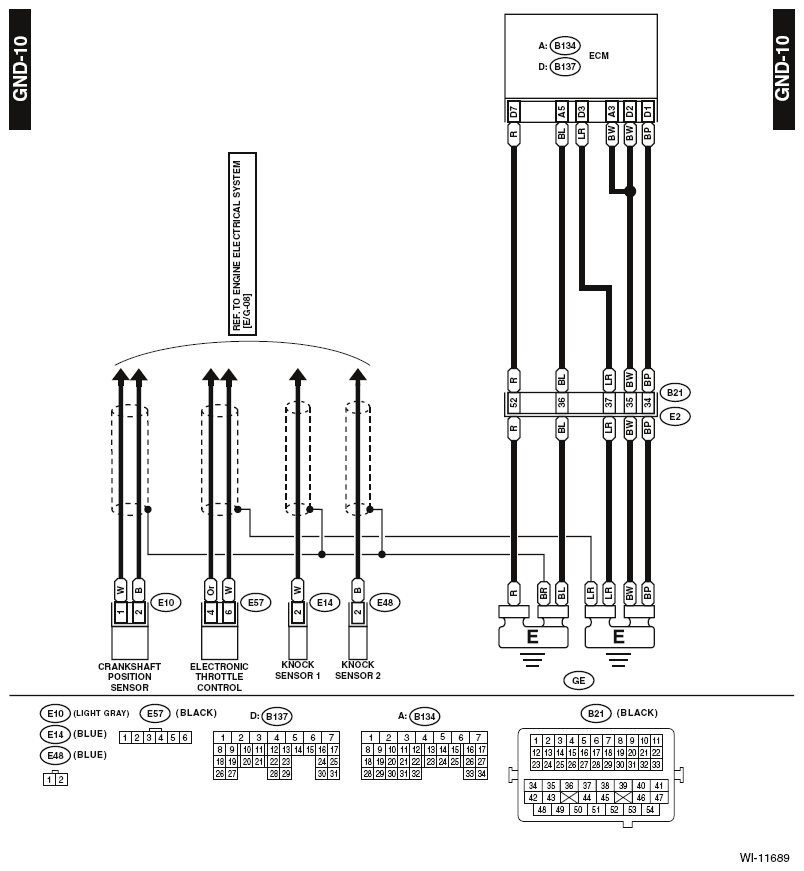

Fig 10: Ground Circuit Wiring Diagram (10 Of 10)

G11902075

Courtesy of SUBARU OF AMERICA, INC.
