Coolant Temperature System: Wiring Diagram

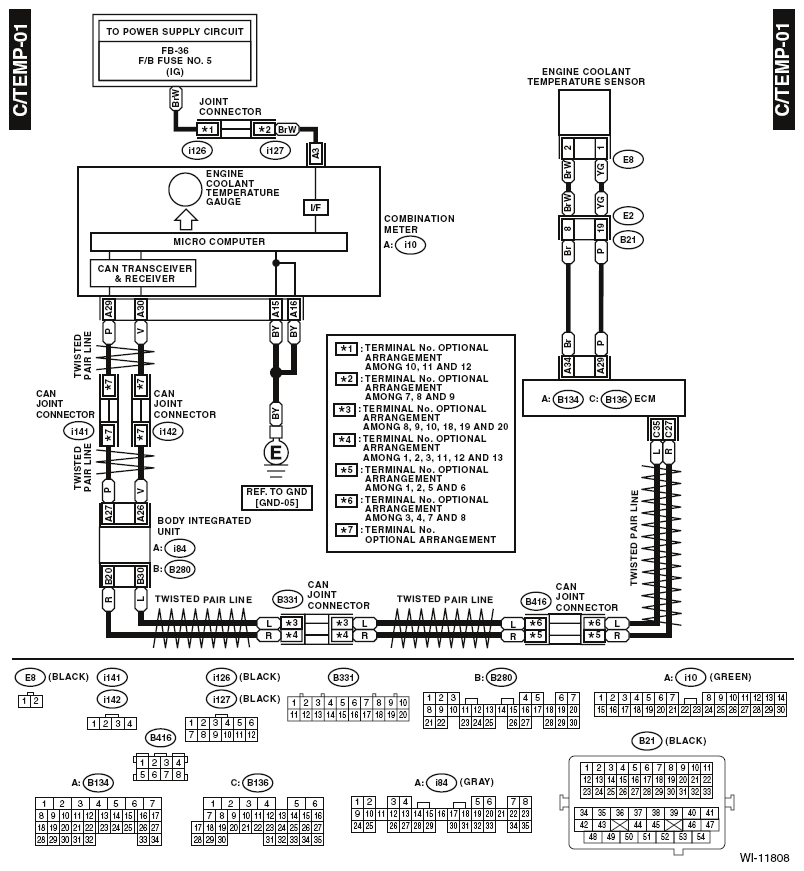

Fig 1: Coolant Temperature System Wiring Diagram

G11902188

Courtesy of SUBARU OF AMERICA, INC.
