OEM Wiring Diagrams & Fuse/Relay Locations
>>
Airbag System
>>
Wiring Diagram
Airbag System: Wiring Diagram

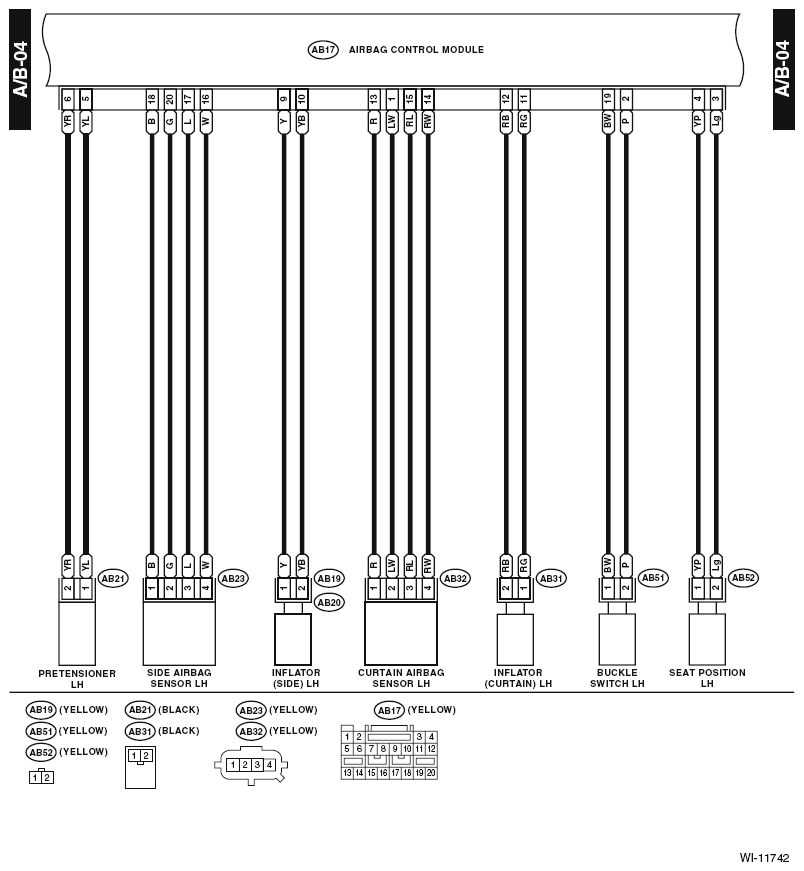

Fig 1: Airbag System Wiring Diagram (1 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

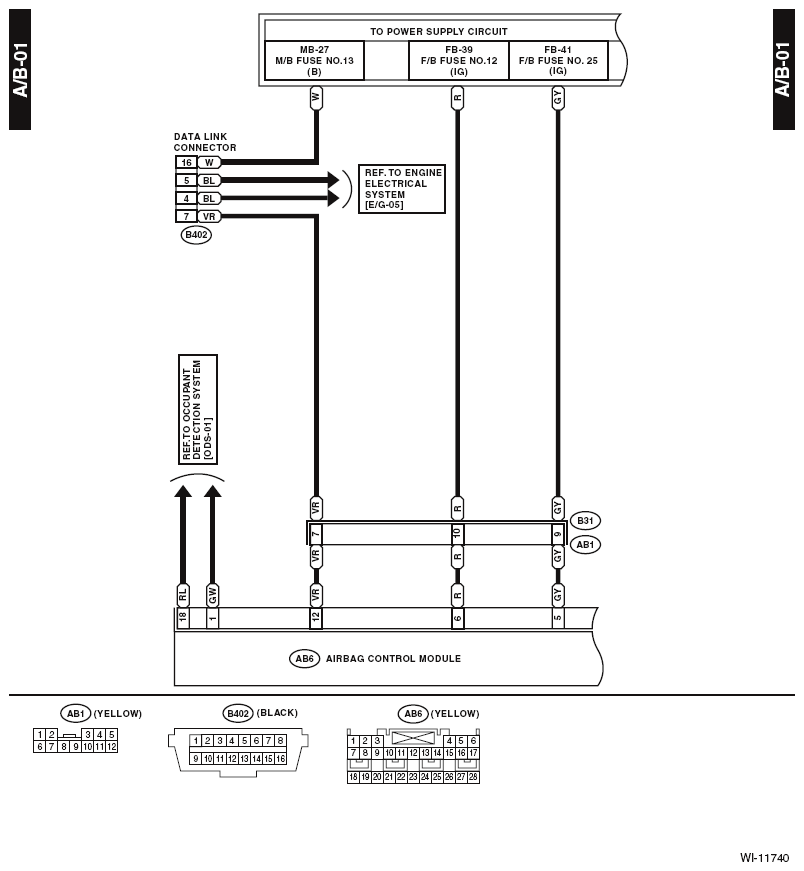

Fig 2: Airbag System Wiring Diagram (2 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

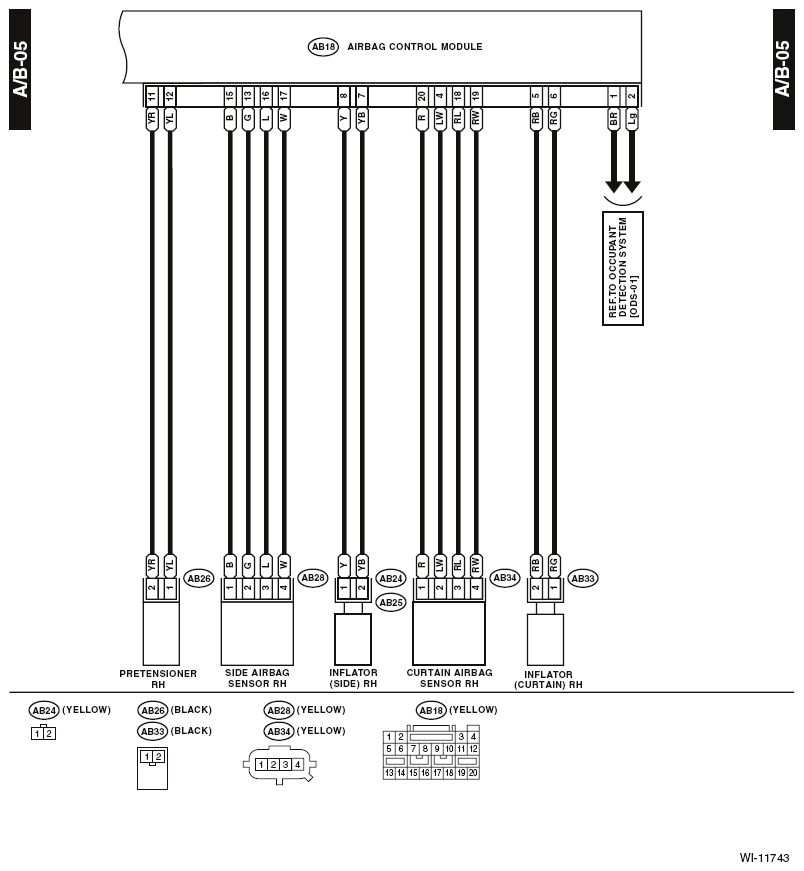

Fig 3: Airbag System Wiring Diagram (3 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

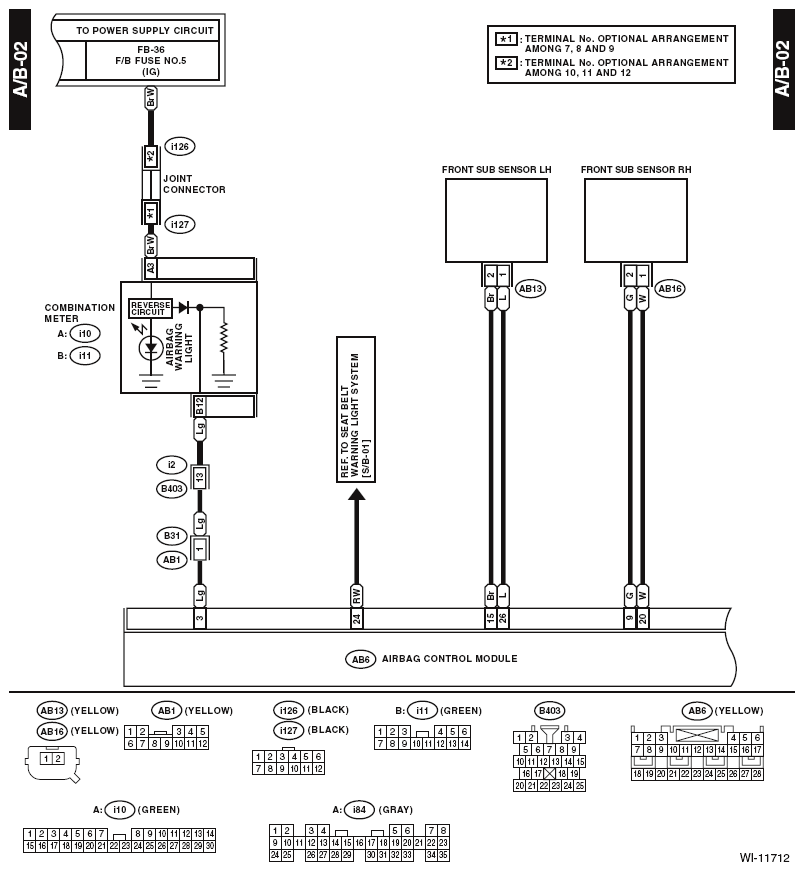

Fig 4: Airbag System Wiring Diagram (4 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

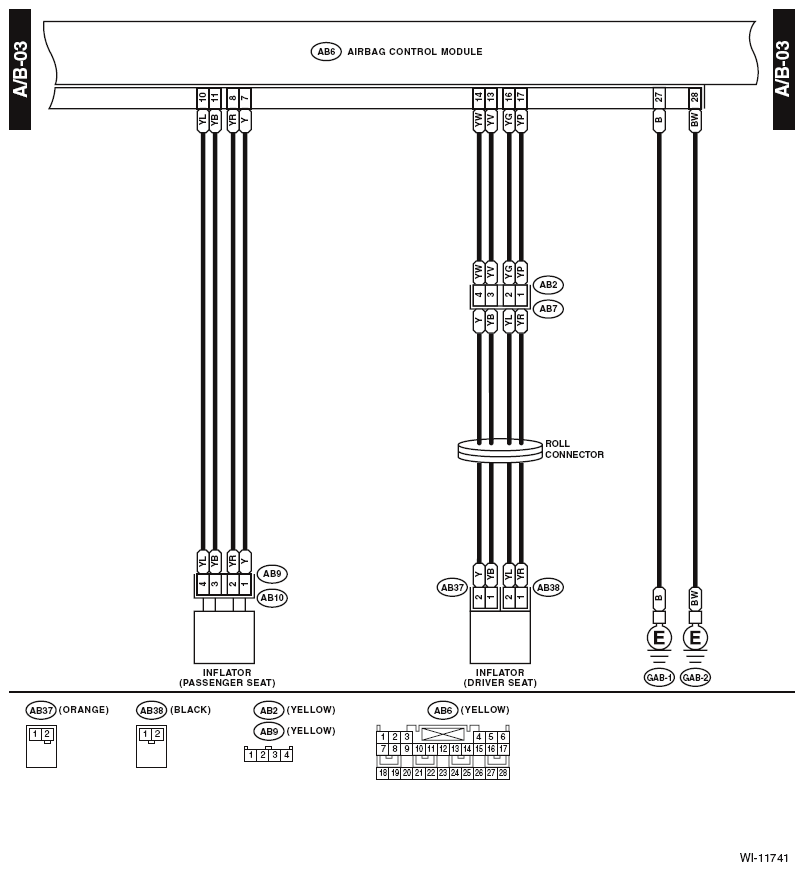

Fig 5: Airbag System Wiring Diagram (5 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
