Rear A/C

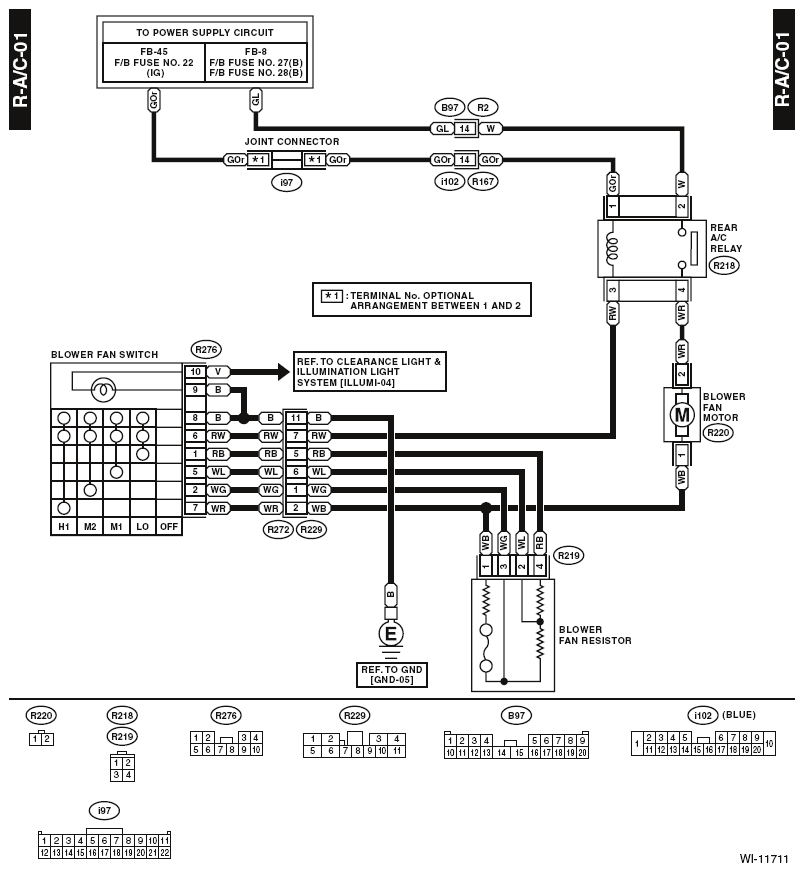

Fig 1: Air Conditioning System Wiring Diagram (Rear A/C)

G11902111

Courtesy of SUBARU OF AMERICA, INC.
