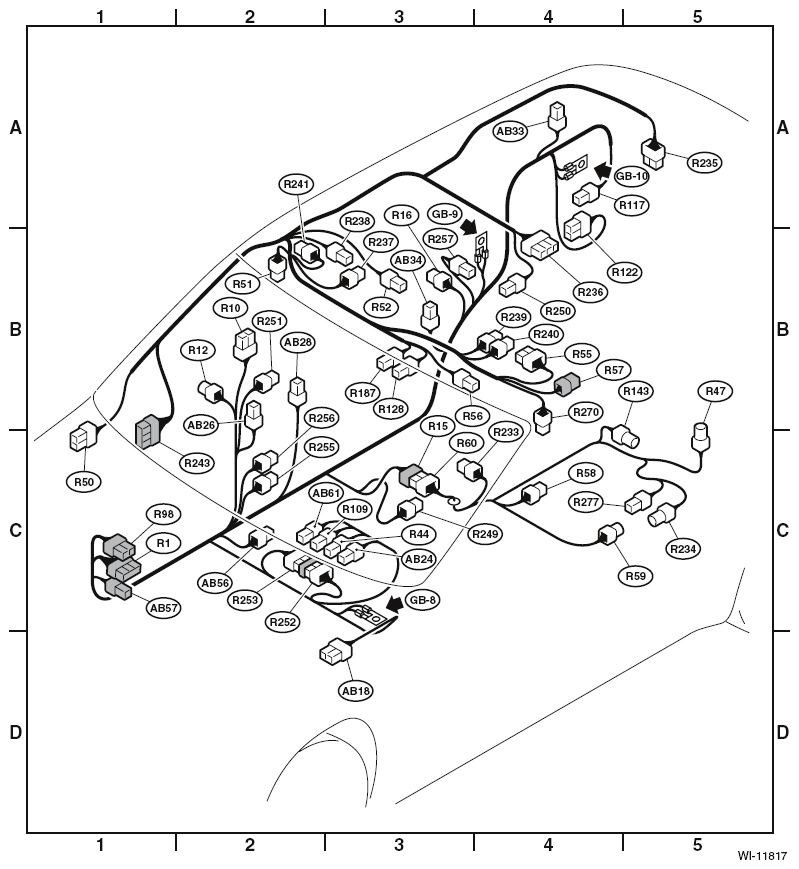

| R1 |
24 |
Black |
C-1 |
B98 |
Bulkhead wiring harness |
| R10 |
10 |
|
B-3 |
D22 |
Rear door cord (Passenger's side) |
| R12 |
3 |
|
B-2 |
|
Front door switch RH |
| R15 |
14 |
|
C-3 |
R60 |
Fuel cord 1 |
| R16 |
3 |
|
B-3 |
|
Rear door switch RH |
| R44 |
6 |
|
C-3 |
|
Seat heater RH & second-row seat foot light RH |
| R47 |
3 |
Black |
C-5 |
|
Fuel tank pressure sensor |
| R50 |
12 |
|
C-1 |
B90 |
Bulkhead wiring harness |
| R51 |
2 |
|
B-2 |
|
Vanity mirror illumination light RH |
| R52 |
3 |
|
B-3 |
|
Room light (without DVD) |
| R55 |
10 |
Gray |
B-4 |
|
Sunroof control unit and motor |
| R56 |
6 |
Gray |
B-3 |
|
Spot map light |
| R57 |
3 |
|
B-3 |
|
Shade mirror |
| R58 |
6 |
Gray |
C-4 |
|
Fuel gauge main unit |
| R59 |
2 |
|
C-4 |
|
Fuel gauge sub unit |
| R60 |
14 |
|
C-3 |
R15 |
Rear wiring harness |
| R98 |
22 |
Blue |
C-1 |
i53 |
Instrument panel wiring harness |
| R109 |
2 |
Black |
C-3 |
|
Power seat RH |
| R117 |
2 |
|
A-4 |
|
Super woofer |
| R122 |
10 |
Black |
B-4 |
|
Fuel pump control unit |
| R128 |
5 |
|
B-3 |
|
Open/Close switch |
| R143 |
2 |
Gray |
C-5 |
|
Drain valve |
| R187 |
5 |
Black |
B-3 |
|
Tilt switch |
| R233 |
4 |
|
C-3 |
|
Joint connector |
| R234 |
1 |
Black |
C-5 |
|
Thermo switch |
| R235 |
10 |
|
A-5 |
R248 |
Tail harness |
| R236 |
24 |
|
B-4 |
|
Rear entertainment unit (Roof) |
| R237 |
4 |
|
B-3 |
|
Joint connector |
| R238 |
4 |
|
B-3 |
|
| R239 |
4 |
|
B-4 |
|
| R240 |
4 |
|
B-4 |
|
| R241 |
4 |
|
A-2 |
|
| R243 |
22 |
|
C-1 |
i132 |
Instrument panel wiring harness |
| R249 |
2 |
Gray |
C-3 |
|
Rear ABS wheel speed sensor LH |
| R250 |
3 |
|
B-4 |
|
Room light (with DVD) |
| R251 |
4 |
|
B-2 |
|
Joint connector |
| R252 |
12 |
Gray |
C-2 |
|
| R253 |
12 |
Gray |
C-2 |
|
| R255 |
4 |
|
C-2 |
|
| R256 |
4 |
|
C-2 |
|
| R257 |
2 |
|
B-3 |
|
Rear tweeter RH |
| R270 |
2 |
|
B-4 |
|
Home link |
| R277 |
1 |
Black |
C-4 |
|
Bracket earth (Rear differential gear oil temperature switch) |
| AB18 |
20 |
Yellow |
D-3 |
|
Airbag control module |
| AB24 |
2 |
Yellow |
C-3 |
|
Inflator (Side) RH |
| AB26 |
2 |
Black |
B-2 |
|
Pretensioner RH |
| AB28 |
4 |
Yellow |
B-2 |
|
Side airbag sensor RH |
| AB33 |
2 |
Black |
A-4 |
|
Inflator (Curtain) RH |
| AB34 |
4 |
Yellow |
B-3 |
|
Curtain airbag sensor RH |
| AB56 |
3 |
Brown |
C-2 |
|
Belt tension sensor (Occupant detection control module) |
| AB57 |
2 |
Yellow |
C-1 |
AB55 |
Bulkhead harness |
| AB61 |
6 |
Gray |
C-2 |
AB59 |
Occupant detection control module |
