Driver's Side

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

Black

D-2

B97

Bulkhead wiring harness

⁽¹⁾

C-2

Front seat belt switch LH

⁽¹⁾

C-3

Front door switch LH

R13

⁽¹⁾

C-3

D28

Rear door cord LH

R22

⁽¹⁾

C-4

Rear door switch LH

R28

⁽¹⁾

B-5

Rear combination light LH

R41

⁽¹⁾

C-2

Seat heater LH & second-row seat foot light LH

R167

Blue

D-2

i102

Instrument panel wiring harness

R168

⁽¹⁾

D-1

Fuse & relay box (F/B)

R185

Gray

C-4

Rear view camera module

R188

Black

C-2

Power seat LH

R211

⁽¹⁾

D-2

TPM control module

R215

⁽¹⁾

B-5

R247

Tail harness

R216

Black

B-5

R246

Tail harness (Joint connector)

R217

⁽¹⁾

B-5

R245

Tail harness (Rear entertainment)

R218

⁽¹⁾

B-5

Rear A/C relay

R219

⁽¹⁾

B-5

Blower fan resistor

R220

⁽¹⁾

B-5

Blower fan motor

R221

⁽¹⁾

C-3

Joint connector

R222

⁽¹⁾

C-3

R224

⁽¹⁾

D-2

R225

⁽¹⁾

D-2

R226

⁽¹⁾

C-2

Navigation module

R227

Black

D-2

Joint connector

R228

Black

D-2

R229

⁽¹⁾

C-1

R272

Console pocket

R230

⁽¹⁾

C-1

i130

Instrument panel wiring harness (Center)

R232

Gray

C-4

Rear ABS wheel speed sensor LH

R254

⁽¹⁾

B-4

R260

Adapter code

R272

⁽¹⁾

C-1

R229

Rear harness

R273

⁽¹⁾

B-1

Cup holder illumination

R274

⁽¹⁾

B-2

Front accessory power supply socket

R275

⁽¹⁾

B-2

R276

⁽¹⁾

B-2

Blower fan switch

R280

Gray

C-2

R282

Console pocket

R281

⁽¹⁾

D-2

Joint connector

R282

Gray

C-2

R280

Rear harness

R283

⁽¹⁾

B-2

Front AUX terminal box

R287

Gray

B-4

Joint connector

R288

⁽¹⁾

C-5

Rear view camera ground

AB17

Yellow

C-1

Airbag control module

AB19

Yellow

C-2

Inflator (Side) LH

AB21

Black

C-3

Pretensioner LH

AB23

Yellow

C-3

Side airbag sensor LH

AB31

Black

B-4

Inflator (Curtain) LH

AB32

Yellow

C-4

Curtain airbag sensor LH

AB51

Yellow

C-2

Buckle switch LH

AB52

Yellow

C-2

Seat position LH

⁽¹⁾	White or natural color

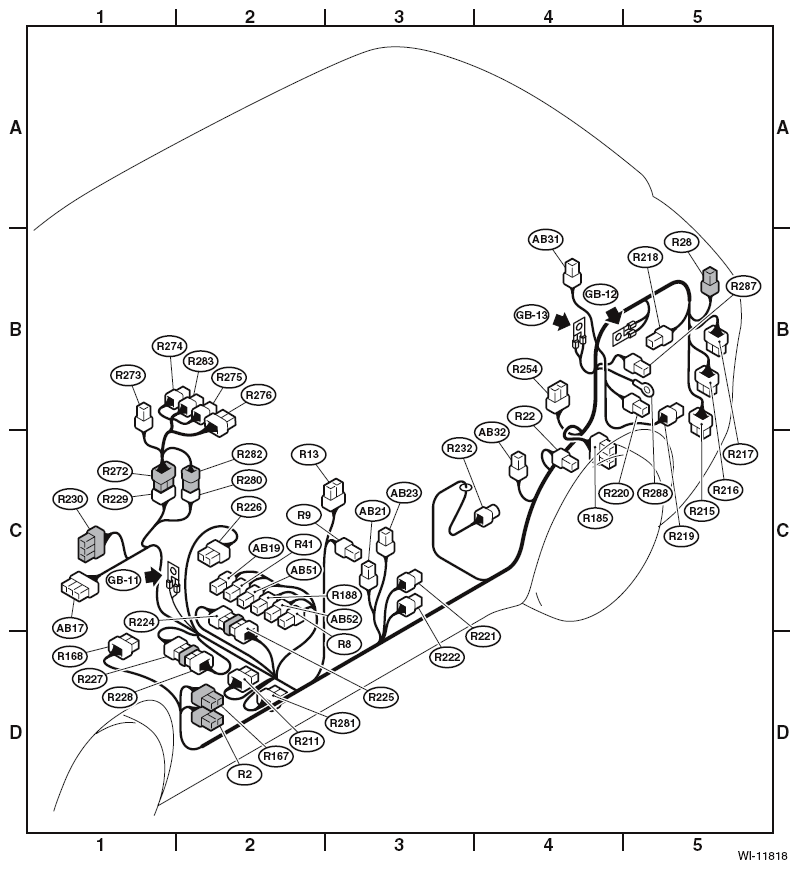

Fig 1: Rear Wiring Harness Location (Driver Side)

Courtesy of SUBARU OF AMERICA, INC.
