Rear Wiring Harness and Rear Gate Cord: Location

Connector				Connecting to
No.	Pole	Color	Area	No.	Description
D33	12	Gray	C-4	R38	Rear wiring harness
D34	2	(1)	C-4	R37
D35	10	(1)	C-4	R39
D37	3	(1)	B-3		Luggage room light
D39	2	(1)	B-3		High-mounted stop light
D43	4	(1)	B-4		Rear wiper motor
D44	2	(1)	B-4		License plate light
D87	2	(1)	B-5		Back-up light RH
D89	2	(1)	B-5		Rear defogger
D91	2	(1)	B-3		Back-up light LH
D134	2	Gray	B-3		Tail light LH
D135	2	(1)	B-4		Rear gate release switch
D136	1	(1)	B-3		Antenna amplifier
D137	2	(1)	B-4		License plate light
D138	3	(1)	B-5		Rear gate light
D139	2	Gray	B-5		Tail light RH
D140	4	(1)	A-4		Rear gate release actuator
D141	4	(1)	B-4		Joint connector
R26	4	(1)	C-4		Rear combination light RH
R37	2	(1)	C-4	D34	Rear gate cord
R38	12	Gray	C-4	D33
R39	10	(1)	C-4	D35
R79	6	(1)	D-3		Trailer connector
R245	10	(1)	C-4	R235	Roof code (Rear entertainment)
R246	12	Black	C-2	R216	Rear wiring harness (Through joint connector)
R247	14	(1)	C-1	R215	Rear wiring harness
R248	10	(1)	C-2	R235
(1) White or natural color

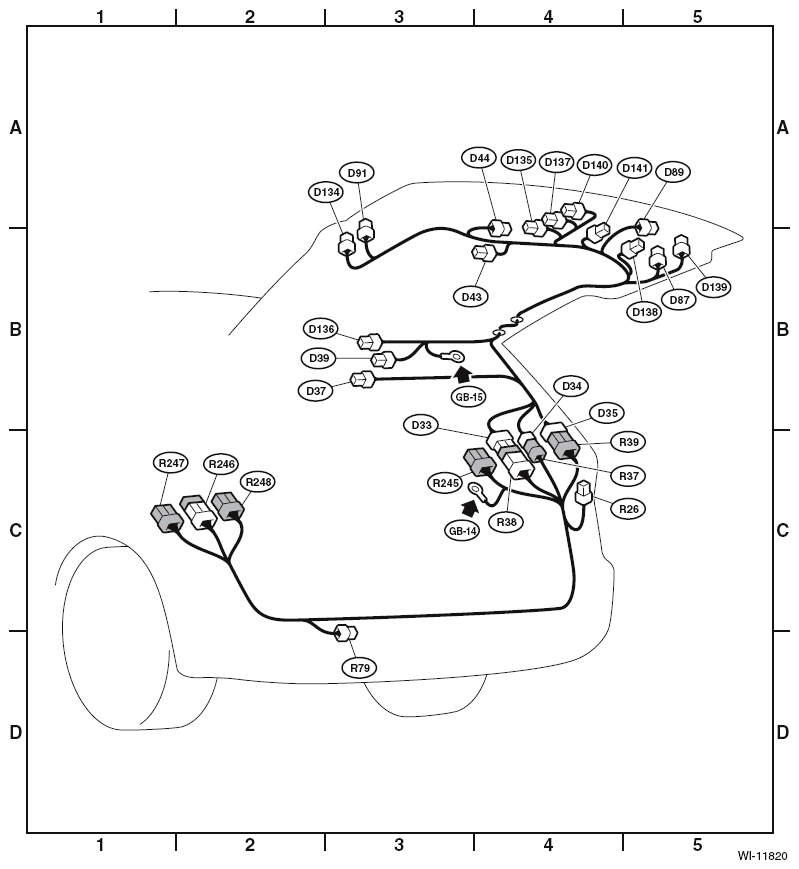

Fig 1: Rear Wiring Harness And Rear Gate Cord Location

Courtesy of SUBARU OF AMERICA, INC.
