Rear Wiper and Washer System: Wiring Diagram

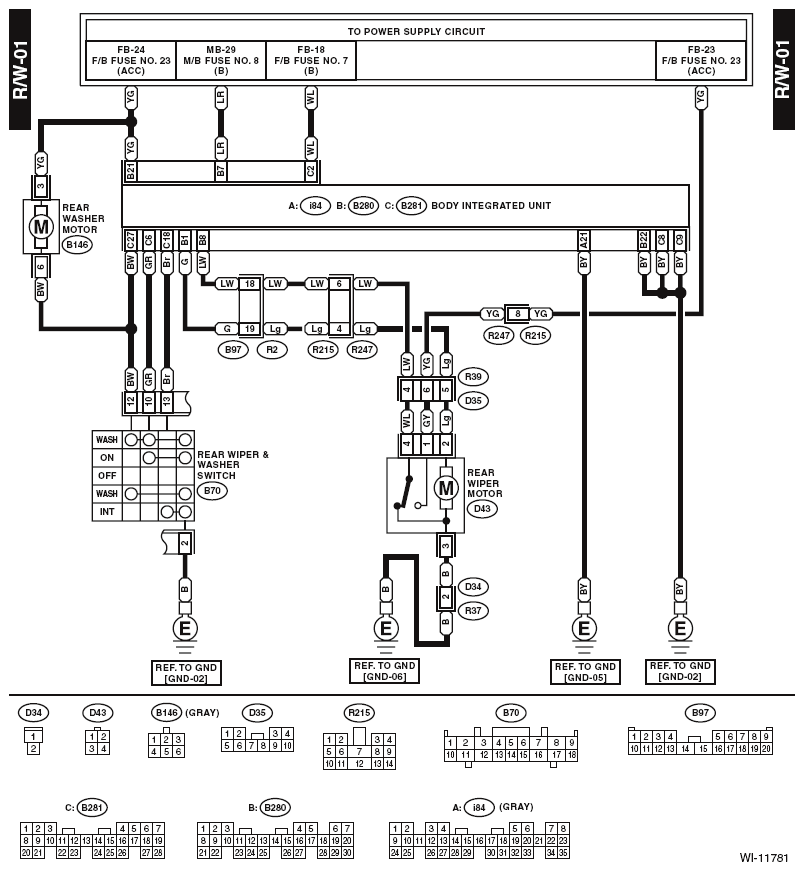

Fig 1: Rear Wiper And Washer System Wiring Diagram

G11902155

Courtesy of SUBARU OF AMERICA, INC.
