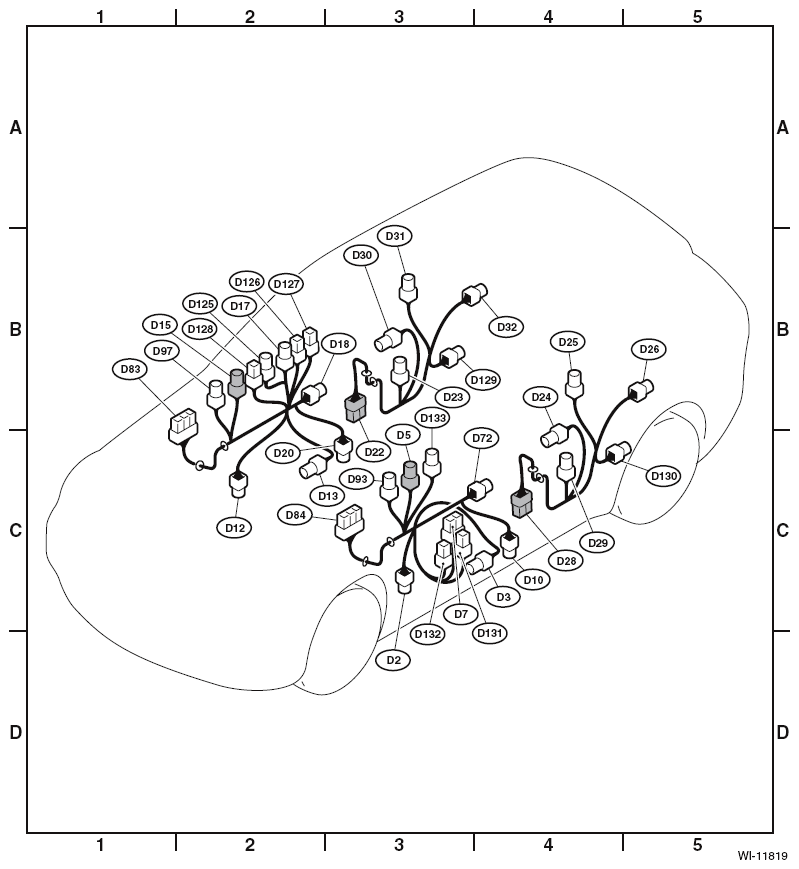

| D2 |
2 |
|
C-3 |
|
Front door speaker LH |
| D3 |
2 |
Gray |
C-4 |
|
Front power window motor LH |
| D5 |
8 |
Gray |
C-3 |
|
Remote control mirror LH |
| D7 |
16 |
|
C-3 |
|
Power window main switch |
| D10 |
2 |
|
C-4 |
|
Front step light LH |
| D12 |
2 |
|
C-2 |
|
Front door speaker RH |
| D13 |
2 |
Gray |
C-2 |
|
Front power window motor RH |
| D15 |
8 |
Gray |
B-2 |
|
Remote control mirror RH |
| D17 |
8 |
|
B-2 |
|
Front power window sub switch |
| D18 |
4 |
|
B-2 |
|
Front door lock actuator RH |
| D20 |
2 |
|
C-3 |
|
Front step light RH |
| D22 |
10 |
|
B-3 |
R10 |
Rear wiring harness RH |
| D23 |
2 |
Black |
B-3 |
|
Rear door speaker RH |
| D24 |
2 |
Gray |
C-4 |
|
Rear power window motor LH |
| D25 |
8 |
|
B-4 |
|
Rear power window sub-switch LH |
| D26 |
4 |
|
B-5 |
|
Rear door lock actuator LH |
| D28 |
10 |
|
C-4 |
R13 |
Rear wiring harness LH |
| D29 |
2 |
Black |
C-4 |
|
Rear door speaker LH |
| D30 |
2 |
Gray |
B-3 |
|
Rear power window motor RH |
| D31 |
8 |
|
B-3 |
|
Rear power window sub-switch RH |
| D32 |
4 |
|
B-3 |
|
Rear door lock actuator RH |
| D72 |
4 |
|
C-4 |
|
Front door lock actuator LH |
| D83 |
25 |
|
B-2 |
i101 |
Instrument panel wiring harness |
| D84 |
25 |
|
C-3 |
i76 |
| D93 |
2 |
|
C-3 |
|
Front door tweeter LH |
| D97 |
2 |
|
B-2 |
|
Front door tweeter RH |
| D125 |
5 |
|
B-2 |
|
Passenger's seat door lock switch |
| D126 |
4 |
|
B-2 |
|
Joint connector |
| D127 |
4 |
|
B-2 |
|
| D128 |
6 |
|
B-2 |
|
| D129 |
2 |
|
B-3 |
|
Rear step light RH |
| D130 |
2 |
|
C-4 |
|
Rear step light LH |
| D131 |
4 |
|
C-3 |
|
Joint connector |
| D132 |
4 |
|
C-3 |
|
| D133 |
4 |
|
C-3 |
|
