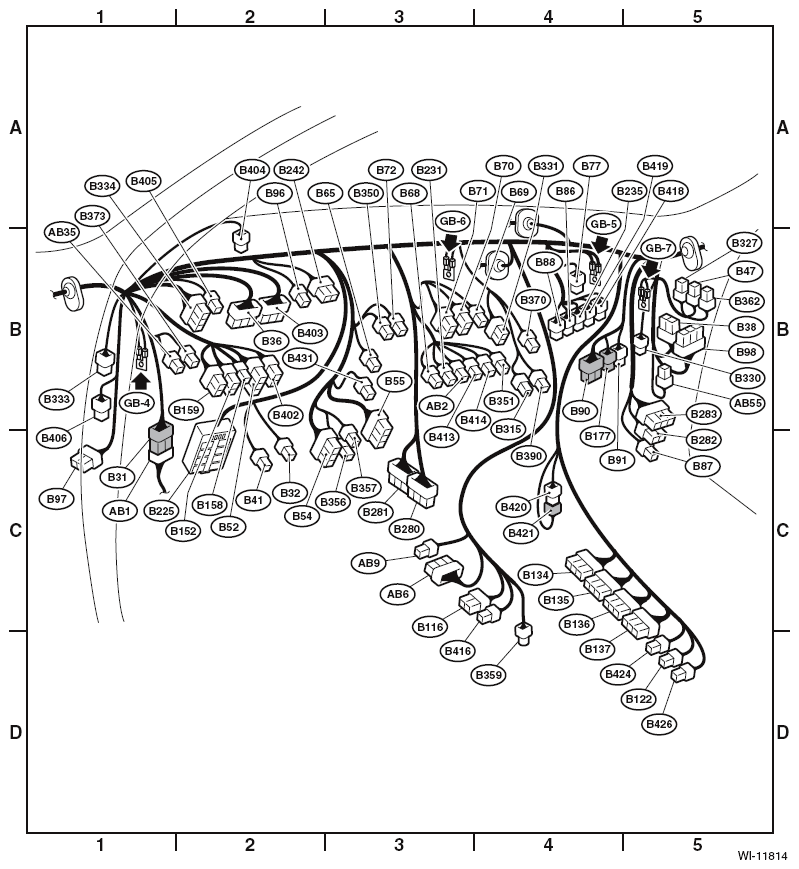

| B31 |
12 |
Yellow |
C-1 |
AB1 |
Airbag wiring harness |
| B32 |
8 |
|
C-2 |
|
Turn signal and hazard unit |
| B36 |
28 |
Blue |
B-2 |
i1 |
Instrument panel wiring harness |
| B38 |
20 |
|
B-5 |
i3 |
| B41 |
2 |
|
C-2 |
|
Power window circuit breaker |
| B47 |
6 |
Brown |
B-5 |
|
Main relay |
| B52 |
24 |
|
B-2 |
|
Fuse & relay box (F/B) |
| B54 |
24 |
|
C-3 |
|
TCM |
| B55 |
24 |
Gray |
C-3 |
|
| B65 |
4 |
Black |
B-3 |
|
Stop light & brake switch |
| B68 |
8 |
|
B-3 |
|
Roll connector |
| B69 |
4 |
|
B-3 |
|
Parking switch |
| B70 |
18 |
|
B-3 |
|
Combination switch (Rear wiper & washer switch) |
| B71 |
17 |
|
B-3 |
|
Combination switch (Front fog light switch & lighting switch) |
| B72 |
6 |
|
B-3 |
|
Ignition switch |
| B77 |
7 |
Green |
B-4 |
|
Mode actuator |
| B86 |
5 |
|
B-4 |
|
Blower fan controller |
| B87 |
2 |
|
C-5 |
|
Blower fan motor |
| B88 |
2 |
|
B-4 |
|
Evaporator thermo switch |
| B90 |
12 |
|
B-4 |
R50 |
Roof cord |
| B91 |
7 |
Green |
B-4 |
|
FRESH/RECIRC actuator |
| B96 |
8 |
Black |
B-2 |
|
Daytime running light control module |
| B97 |
20 |
|
C-1 |
R2 |
Rear wiring harness |
| B98 |
24 |
Black |
B-5 |
R1 |
| B116 |
12 |
|
C-4 |
|
Select lever |
| B122 |
8 |
|
D-5 |
|
Joint connector (E/G) |
| B134 |
34 |
|
C-4 |
|
ECM |
| B135 |
35 |
|
C-4 |
|
| B136 |
35 |
|
C-4 |
|
| B137 |
31 |
|
D-5 |
|
| B152 |
10 |
Gray |
B-2 |
|
Fuse & relay box (F/B) |
| B158 |
8 |
|
B-2 |
|
| B159 |
9 |
Brown |
B-2 |
|
| B177 |
2 |
|
B-4 |
|
Wiper deicer |
| B225 |
40 |
Black |
C-2 |
|
Seat heater relay |
| Starter relay |
| Power window relay |
| Fuse (Relay block) |
| Accessory relay 2 |
| Front fog light relay |
| Mirror heater relay |
| Daytime running light relay |
| Wiper deicer relay |
| B231 |
4 |
|
B-3 |
|
Steering angle sensor |
| B235 |
7 |
Green |
B-4 |
|
Passenger's side air mix actuator |
| B242 |
10 |
|
B-2 |
|
Daytime running light control module |
| B280 |
30 |
|
C-3 |
|
Body integrated unit |
| B281 |
28 |
|
C-3 |
|
| B282 |
16 |
|
C-5 |
|
Auto A/C control module |
| B283 |
26 |
|
C-5 |
|
Auto A/C control module (Rear defogger switch) |
| B315 |
6 |
Black |
B-4 |
|
Accelerator pedal position sensor |
| B327 |
6 |
Brown |
B-5 |
|
Main relay 2 |
| B330 |
4 |
Black |
B-5 |
|
Inhibitor relay |
| B331 |
20 |
|
B-4 |
|
CAN joint connector |
| B333 |
2 |
|
B-1 |
|
Short connector |
| B334 |
24 |
|
B-2 |
|
Remote engine start control module |
| B350 |
4 |
|
B-3 |
|
Key actuator |
| B351 |
2 |
Black |
B-4 |
|
Antenna |
| B356 |
4 |
Black |
C-3 |
|
Back-up light relay |
| B357 |
4 |
Black |
C-3 |
|
P-VIGN relay |
| B359 |
5 |
Black |
D-4 |
|
Yaw rate sensor |
| B362 |
8 |
Black |
B-5 |
|
Relay holder |
| B370 |
4 |
Brown |
B-4 |
|
Diode (Tail & engine status) |
| B373 |
2 |
|
B-1 |
|
Fuse & relay box (F/B) |
| B390 |
7 |
Green |
B-4 |
|
Driver's side air mix actuator |
| B402 |
16 |
Black |
B-2 |
|
Data link connector |
| B403 |
25 |
|
B-2 |
i2 |
Instrument panel wiring harness |
| B404 |
1 |
Black |
B-2 |
|
Parking brake switch |
| B405 |
4 |
Brown |
B-2 |
|
Diode (Daytime running light & parking brake) |
| B406 |
2 |
Black |
B-1 |
|
Diode (Daytime running light indicator) |
| B413 |
2 |
|
B-3 |
|
In-vehicle sensor |
| B414 |
2 |
|
B-4 |
|
Key illumination |
| B416 |
8 |
|
D-4 |
|
CAN joint connector |
| B418 |
2 |
|
B-4 |
|
Foot light (Passenger's seat) |
| B419 |
7 |
|
B-4 |
|
Blower relay |
| B420 |
2 |
Green |
C-4 |
|
Test mode connector |
| B421 |
2 |
Green |
C-4 |
|
| B424 |
8 |
|
D-5 |
|
Joint connector |
| B426 |
8 |
|
D-5 |
|
| B431 |
2 |
|
B-3 |
|
Foot light (Driver's seat) |
| AB1 |
12 |
Yellow |
C-1 |
B31 |
Bulkhead wiring harness |
| AB2 |
4 |
Yellow |
B-4 |
AB7 |
Inflator (Driver's seat) (Roll connector) |
| AB6 |
28 |
Yellow |
C-3 |
|
Airbag control module |
| AB9 |
4 |
Yellow |
C-3 |
|
Inflator (Passenger's seat) |
| AB35 |
2 |
Black |
B-1 |
|
Fuse & relay box (F/B) |
| AB55 |
2 |
Yellow |
B-5 |
AB5 7 |
Rear wiring harness |
