Front Parking Brake Cable

  1. Remove the driver's seat.
  2. Remove the console box.
  3. Lift the floor mat.
  4. Remove the parking brake pedal. < Refer to REMOVAL , PARKING BRAKE PEDAL. >
  5. Roll up the floor mat and remove the clamps.
    Fig 1: Identifying Floor Mat Clamps
    G05032850Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the cable end from the equalizer.
    Fig 2: Identifying Cable End And Equalizer
    G05032851Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the parking brake cable bracket on the driver's side floor, and remove the front parking brake cable.

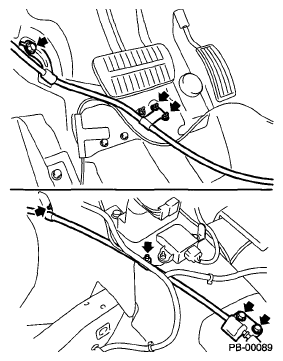

Fig 3: Identifying Parking Brake Cable Bracket Bolts
G05032852Courtesy of SUBARU OF AMERICA, INC.
