Diagnostic Strategies

Basic Diagnostic Procedure

PROCEDURE

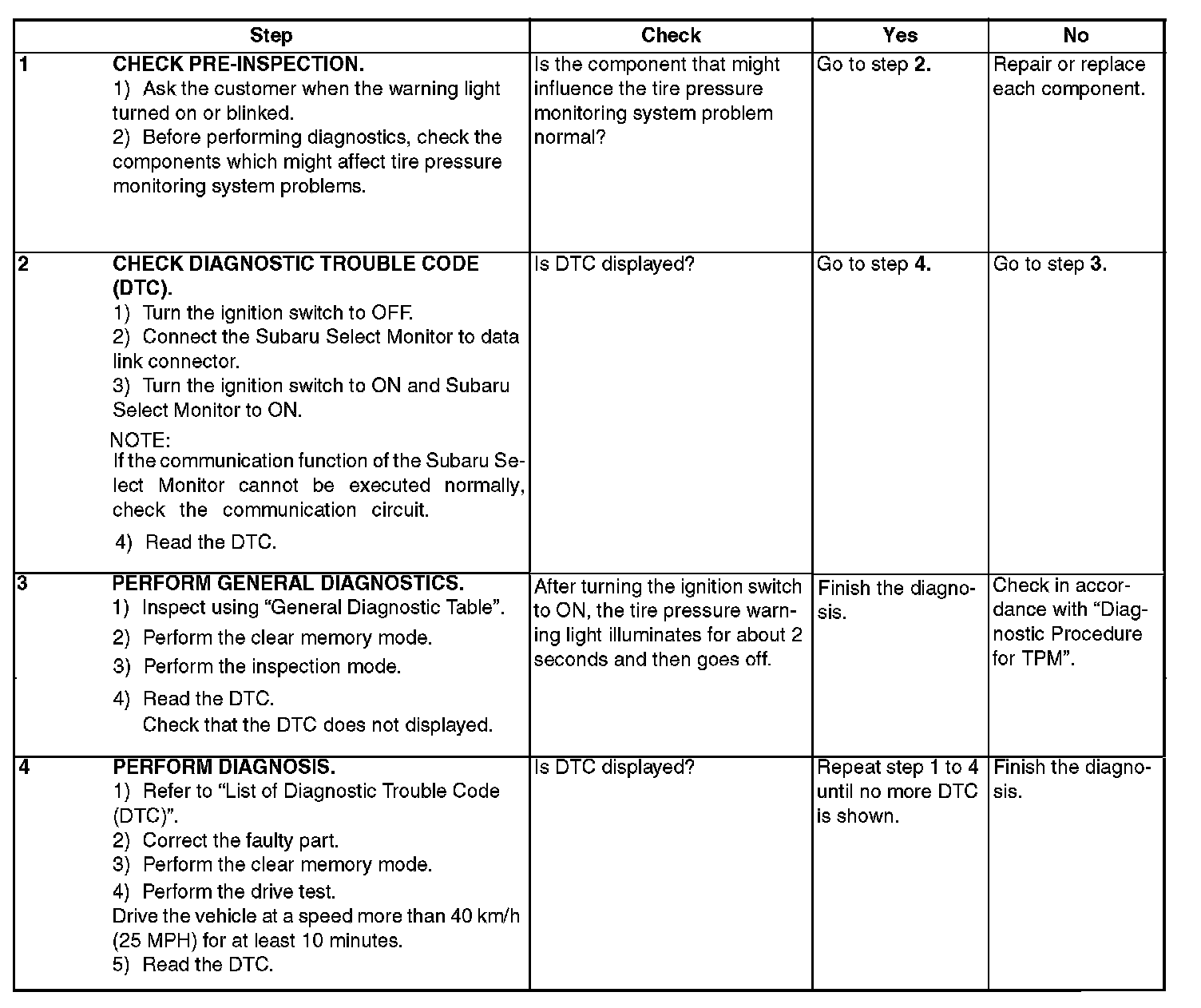

Step 1 - 4:

CAUTION: Remove foreign matters (dust, water, oil, etc.) from the tire pressure monitoring control module connector during removal and installation.

NOTE: To check harness for open or short circuits, shake trouble spot or connector.
