B3-B392 & AB13-AB16 & E3-E61
B3-B392 & AB13-AB16 & E3-E61
Bulkhead Wiring Harness (In Engine Compartment)

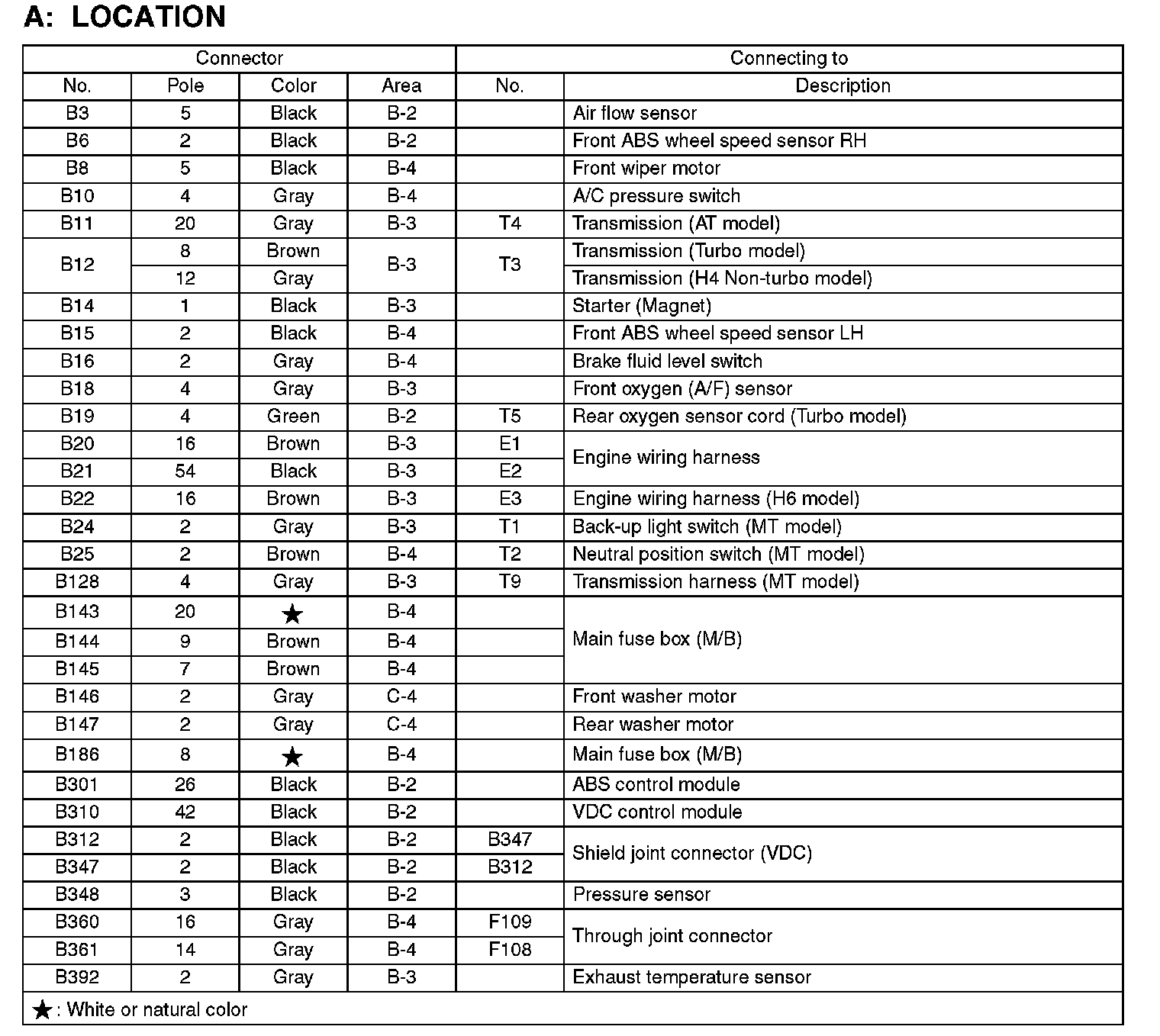

B3-B392:
AB13-AB16:
E3-E61:

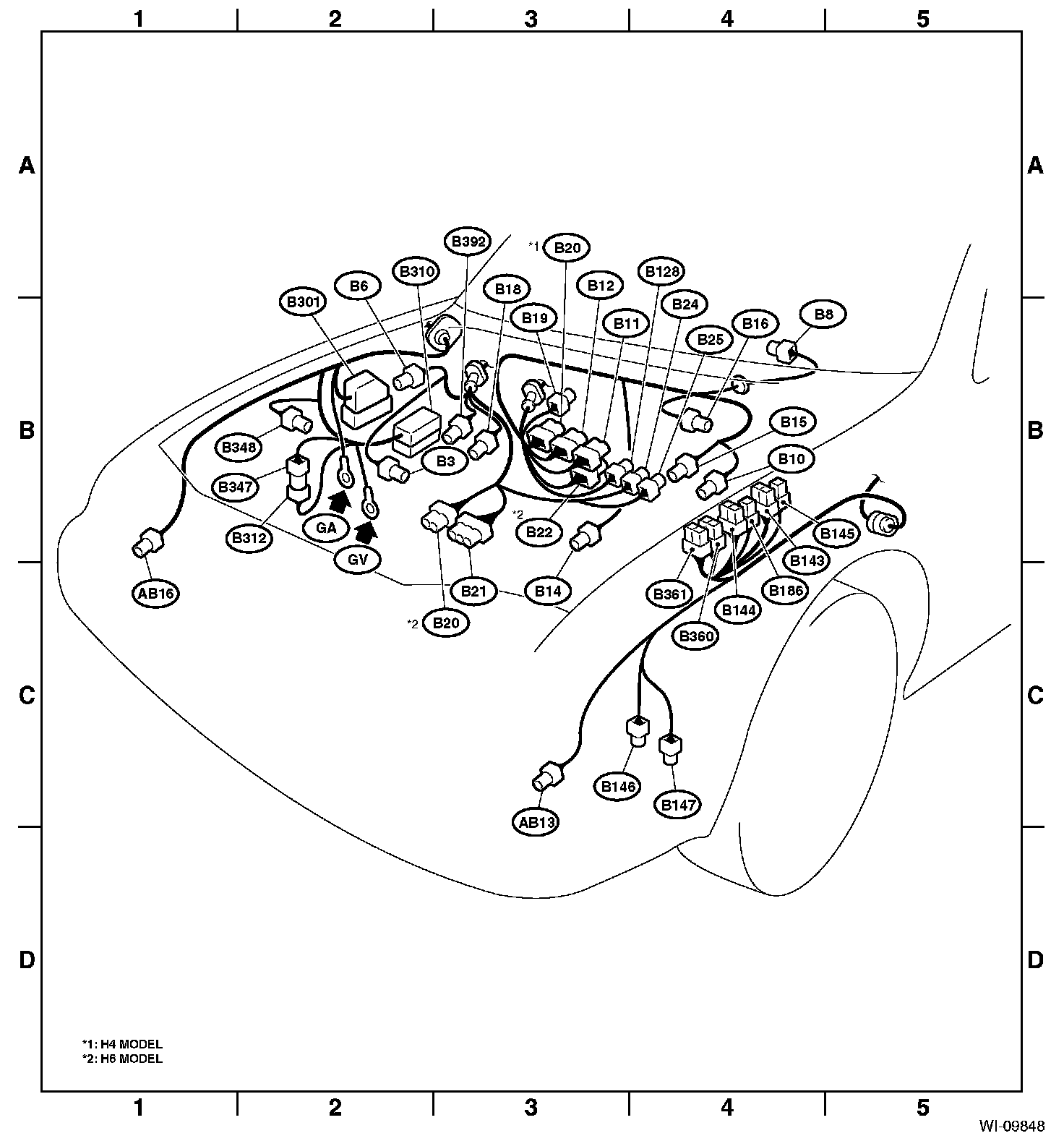

Area View:
