2.5L SOHC U5/Low Emission

MALFUNCTION INDICATOR LIGHT DOES NOT COME ON

DIAGNOSIS:
The malfunction indicator light circuit is open or shorted.

TROUBLE SYMPTOM:
When the ignition switch is turned to ON (engine OFF), malfunction indicator light does not come on.


Wiring Diagram:




Step 1 - 2:

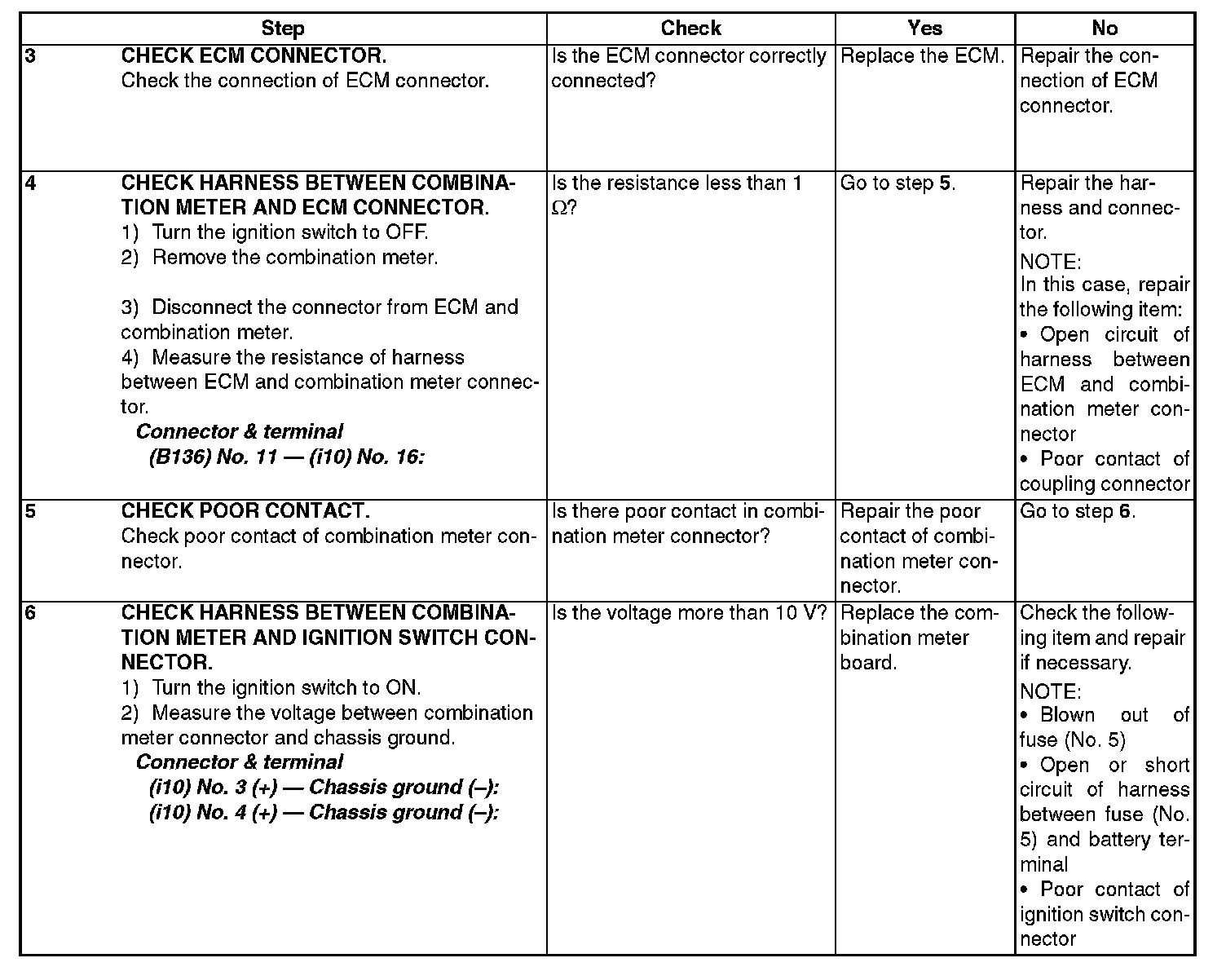

Step 3 - 6:
