2.5L SOHC

DTC P2138 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D"/"E" VOLTAGE CORRELATION

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Erroneous idling
- Poor driving performance

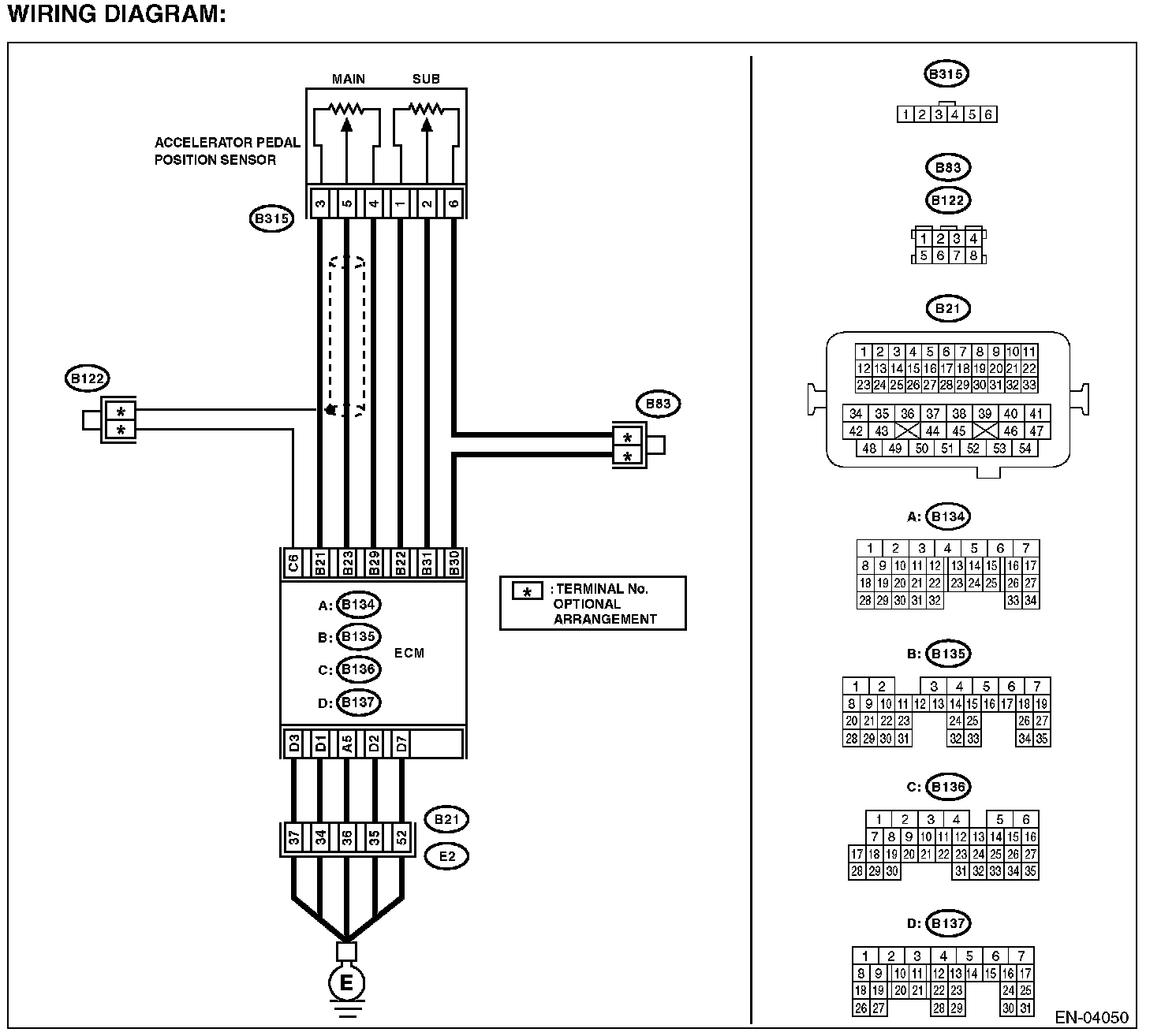

Wiring Diagram:

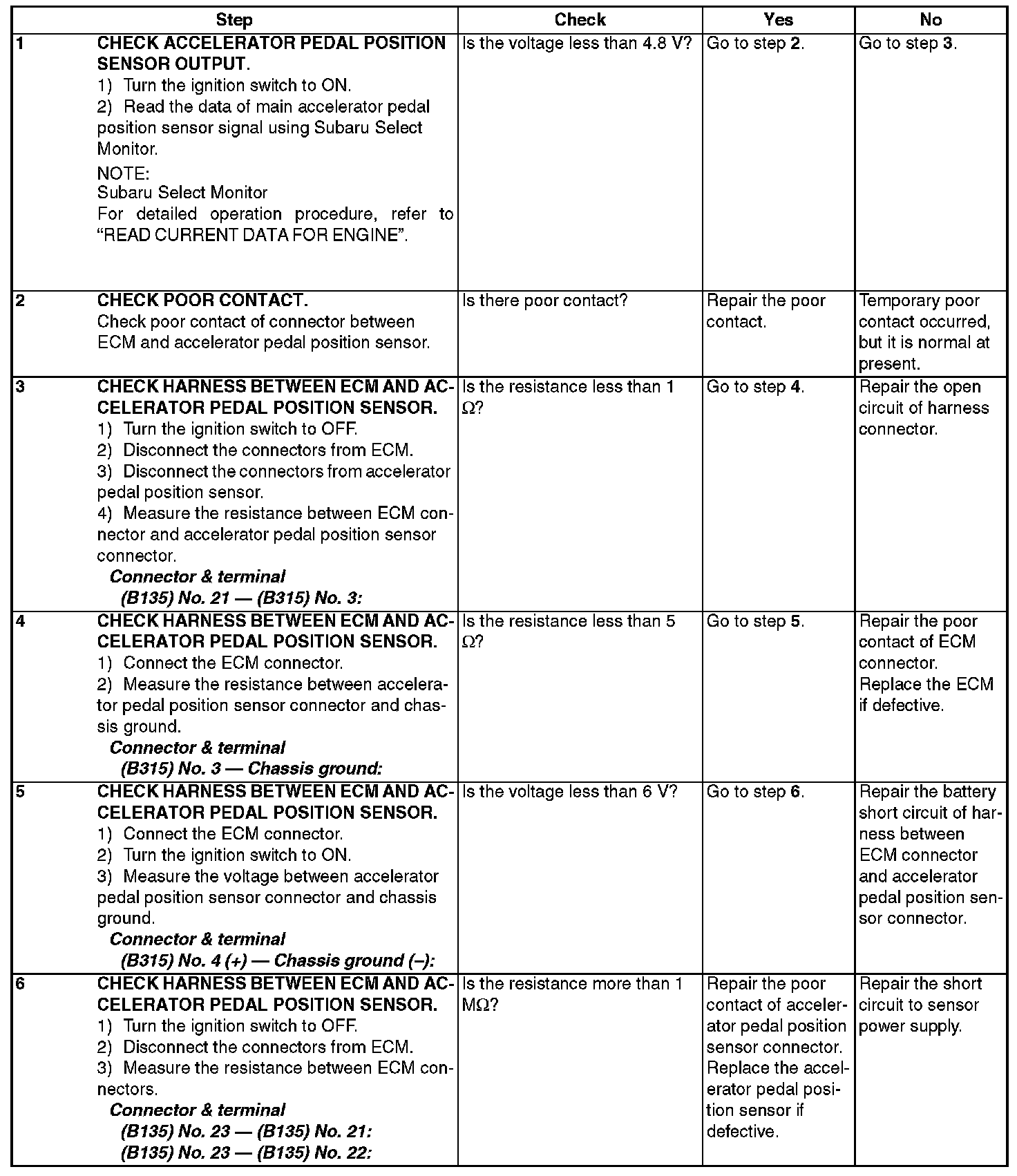

Step 1 - 6:

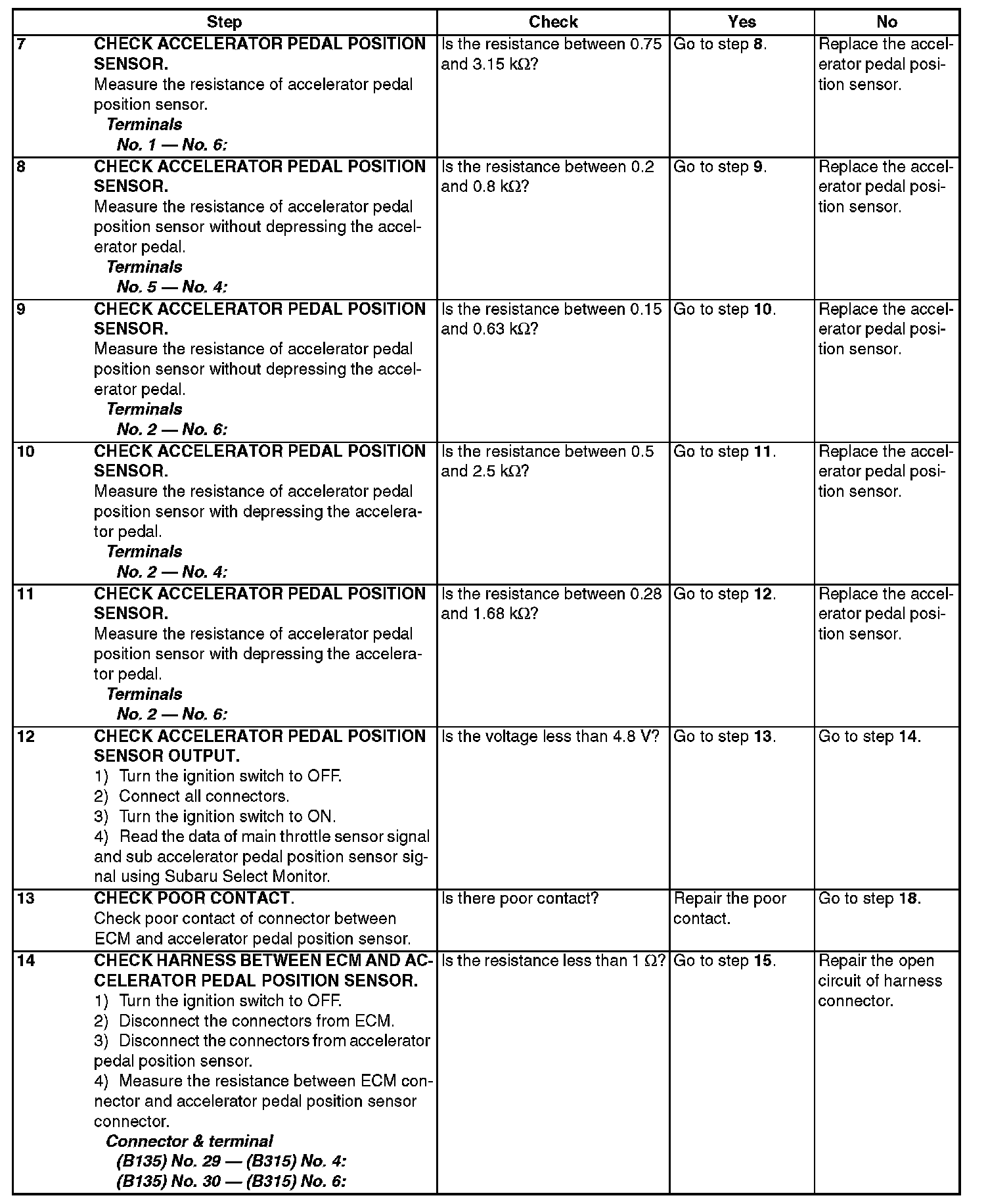

Step 7 - 14:

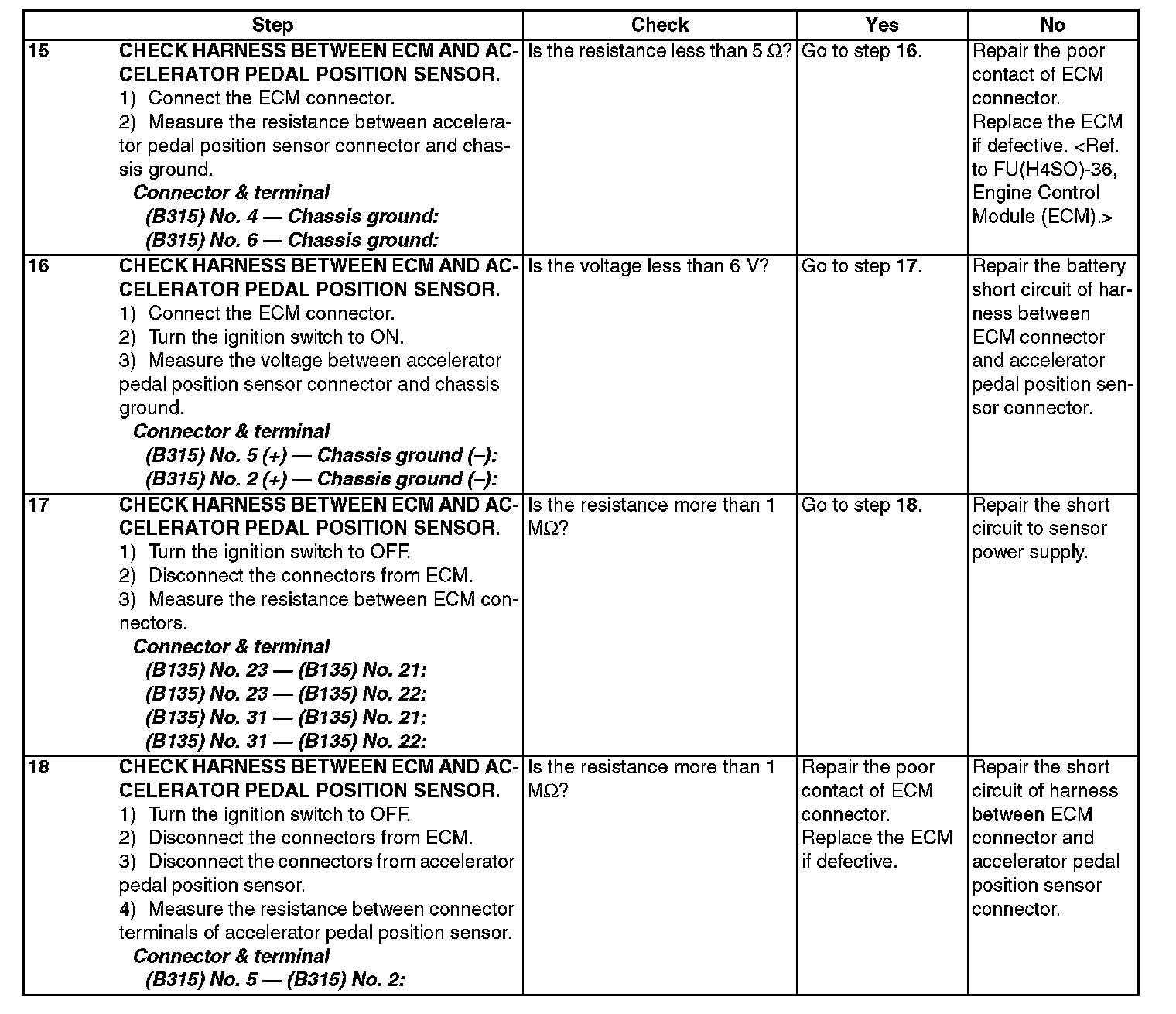

Step 15 - 18:
