2.5L SOHC U5/Low Emission

DTC P2127 THROTTLE/PEDAL POSITION SENSOR/SWITCH "E" CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Erroneous idling
- Poor driving performance

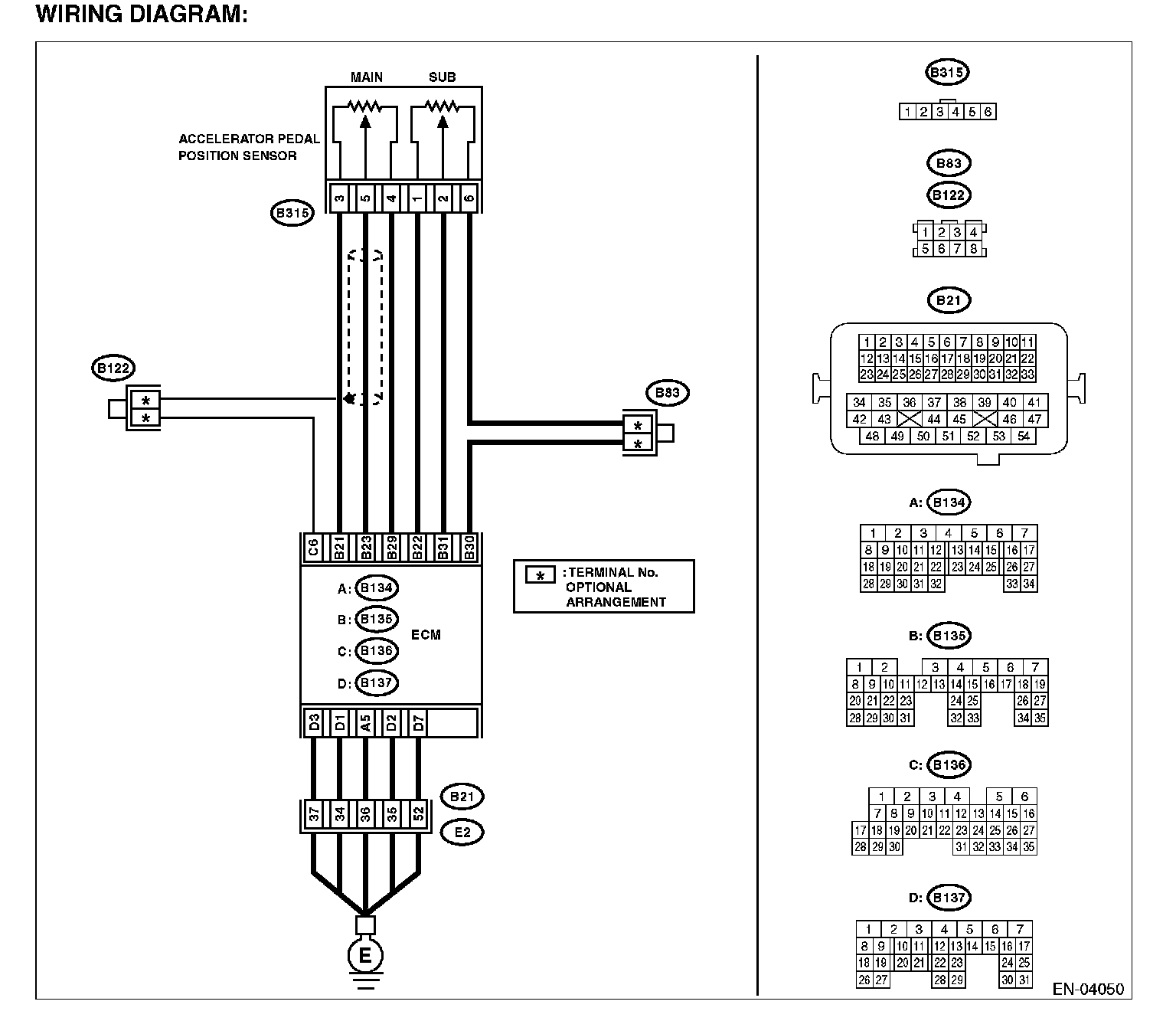

Wiring Diagram:

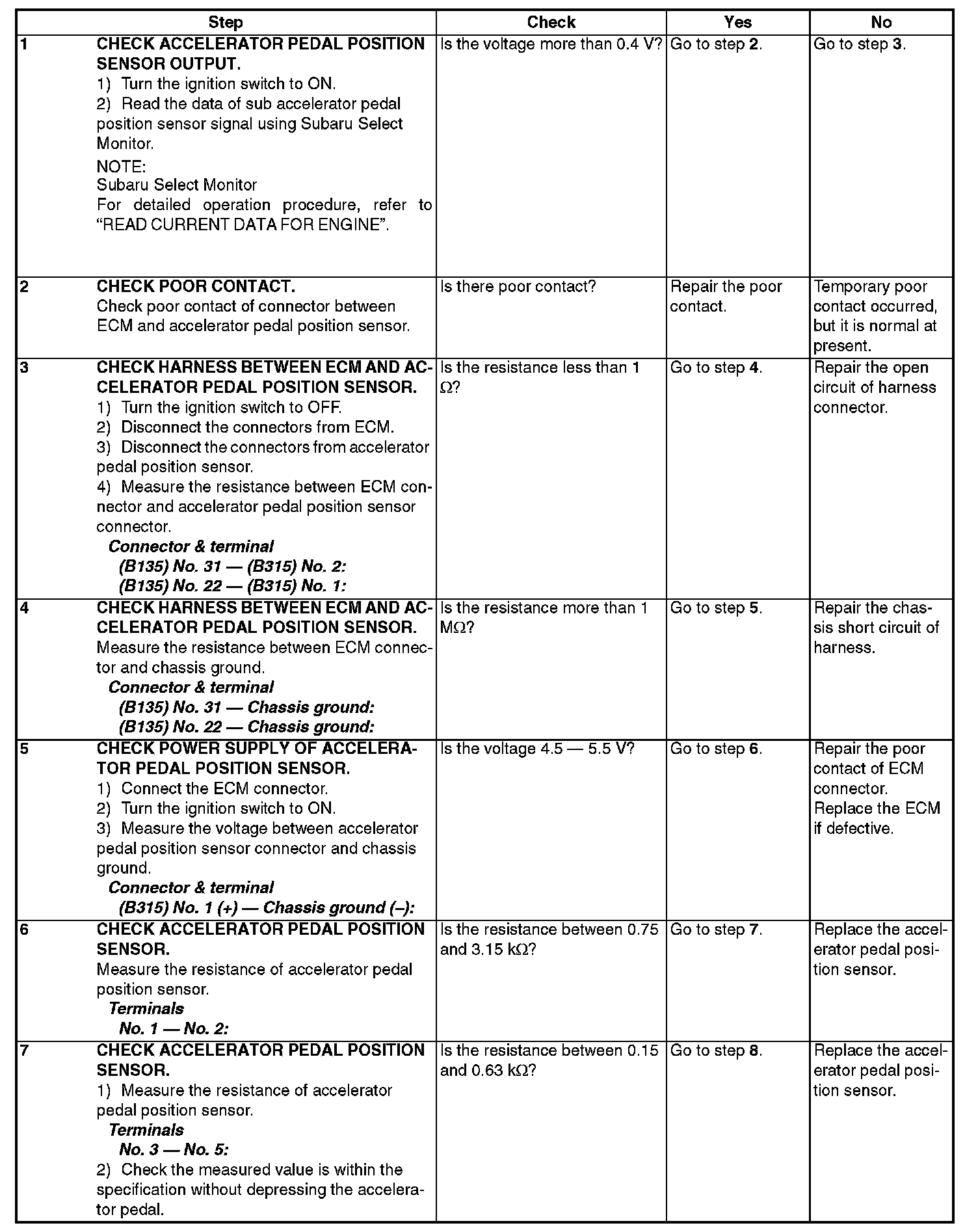

Step 1 - 7:

Step 8:
