2.5L SOHC
2.5L SOHC
DTC P2103 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT HIGH
DTC DETECTING CONDITION:
-
Immediately at fault recognition

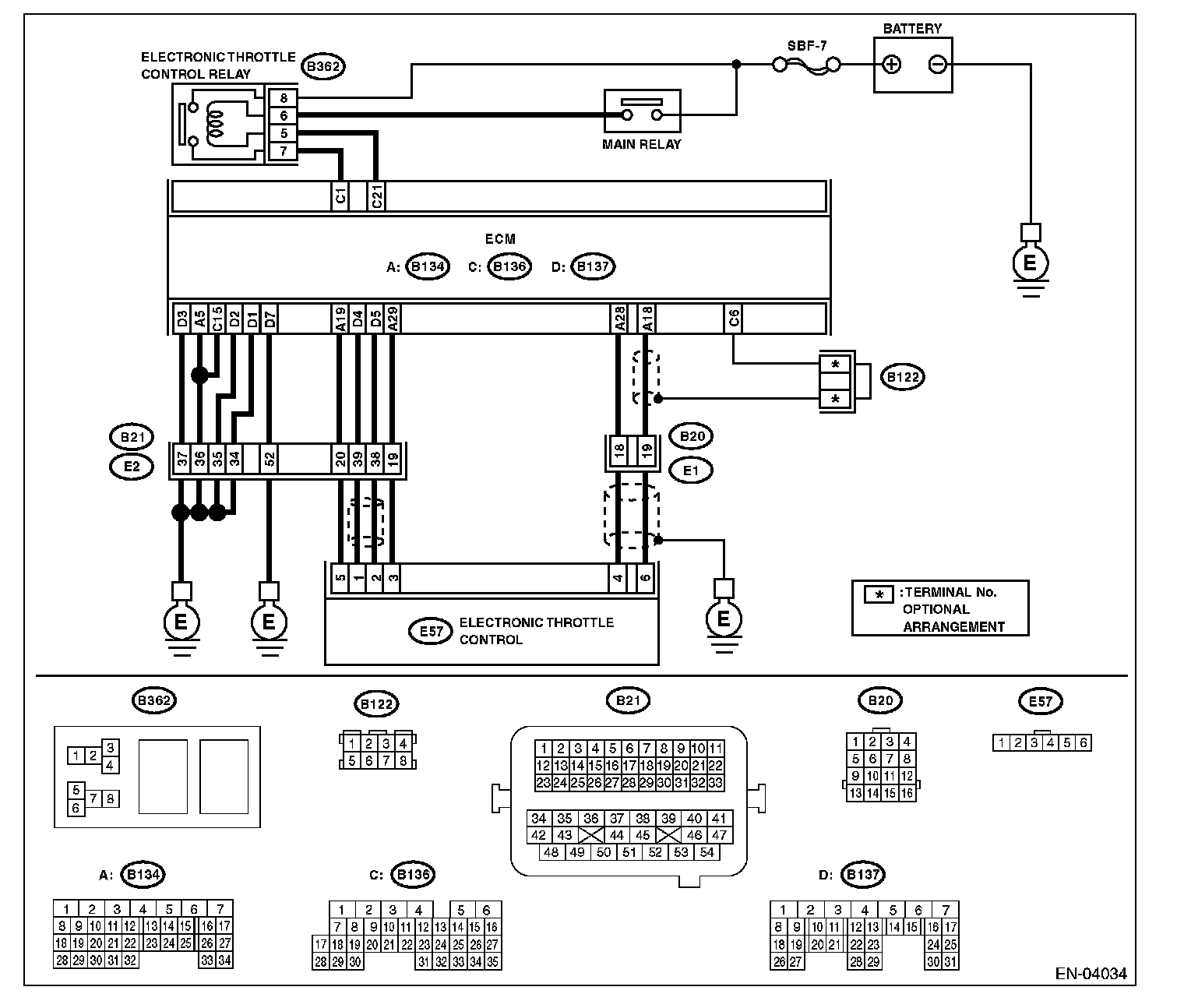

Wiring Diagram:

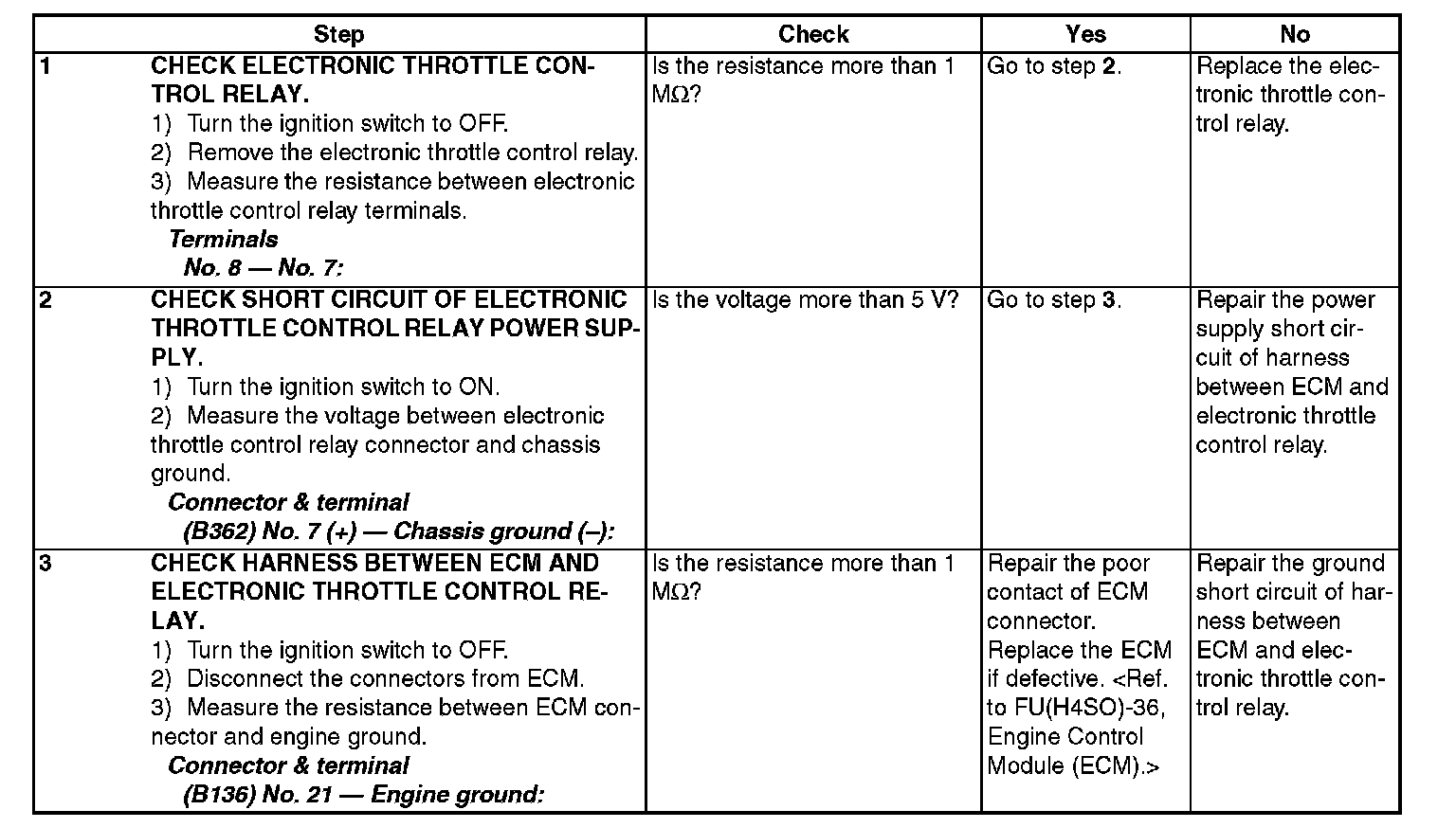

Step 1 - 3:
