P2103
>>
2.5L SOHC U5/Low Emission
2.5L SOHC U5/Low Emission
DTC P2103 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT HIGH
DTC DETECTING CONDITION:
-
Immediately at fault recognition
Wiring Diagram:

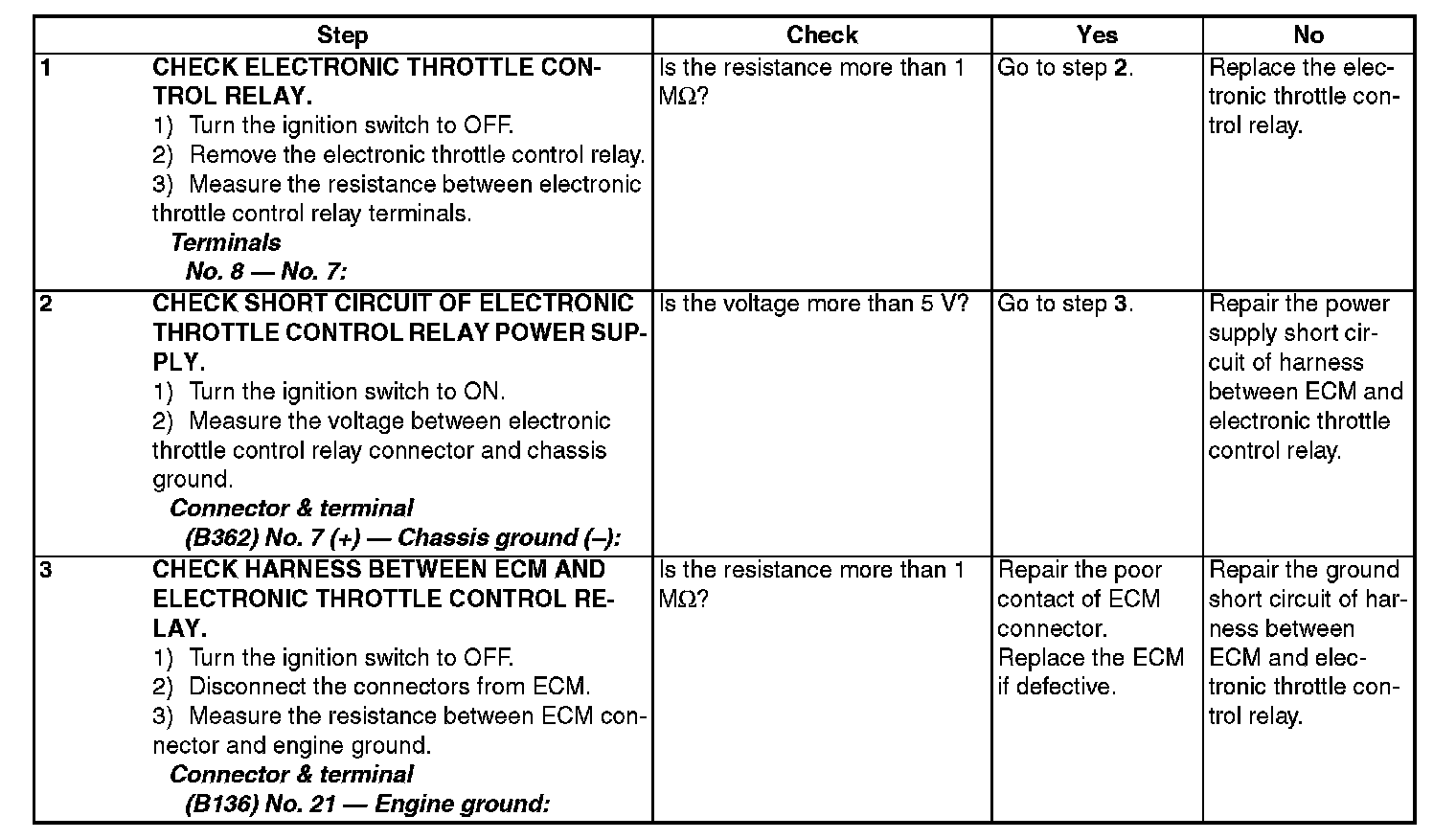

Step 1 - 3:
