P1714

DTC P1714 THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT

DTC DETECTING CONDITION
- The power supply circuit of accelerator pedal position sensor is open or shorted.

TROUBLE SYMPTOM
- Shift point is too high or too low.
- Excessive shift shock
- Tight corner braking phenomenon is occurred.





WIRING DIAGRAM

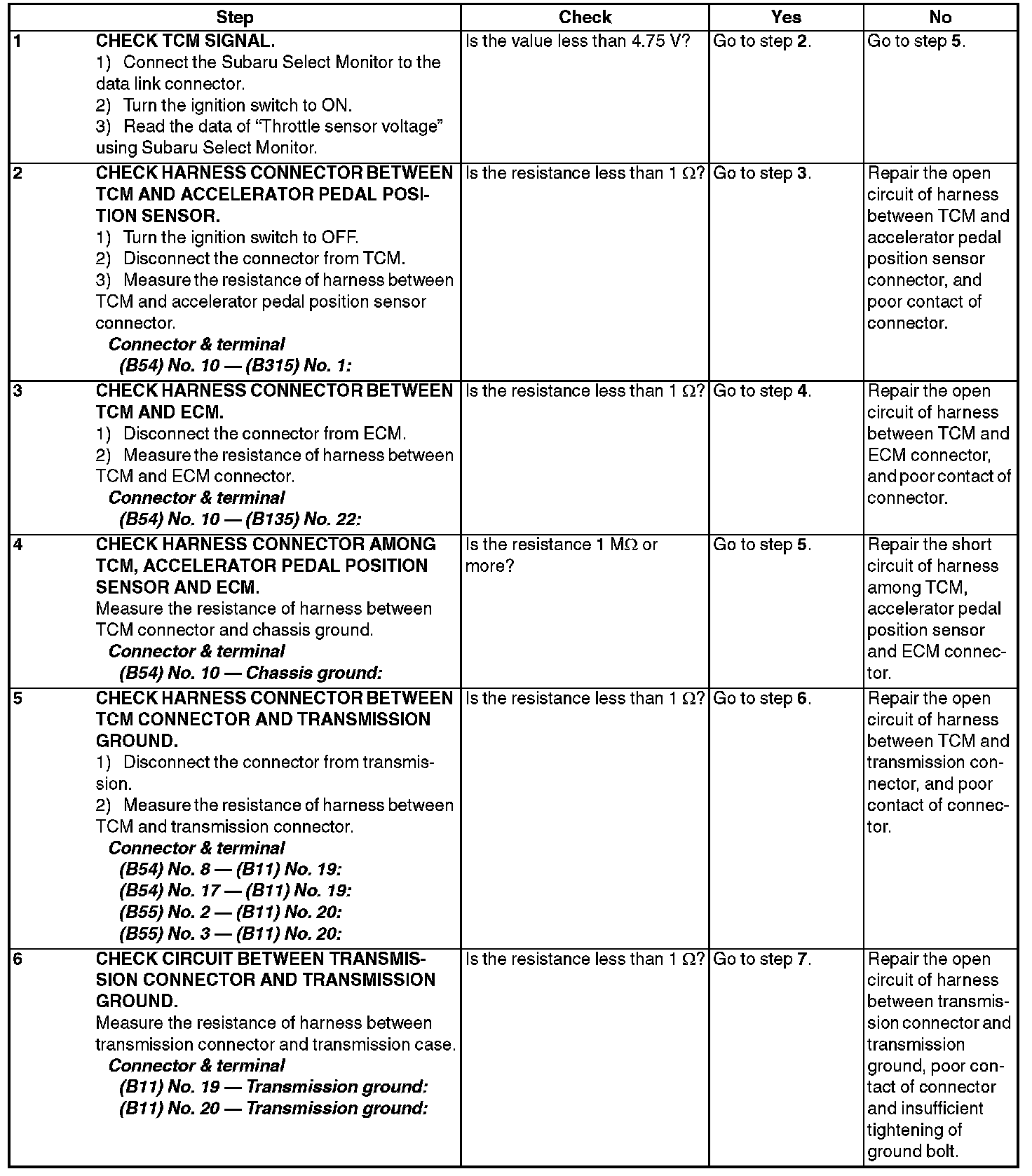

Steps 1 - 6:

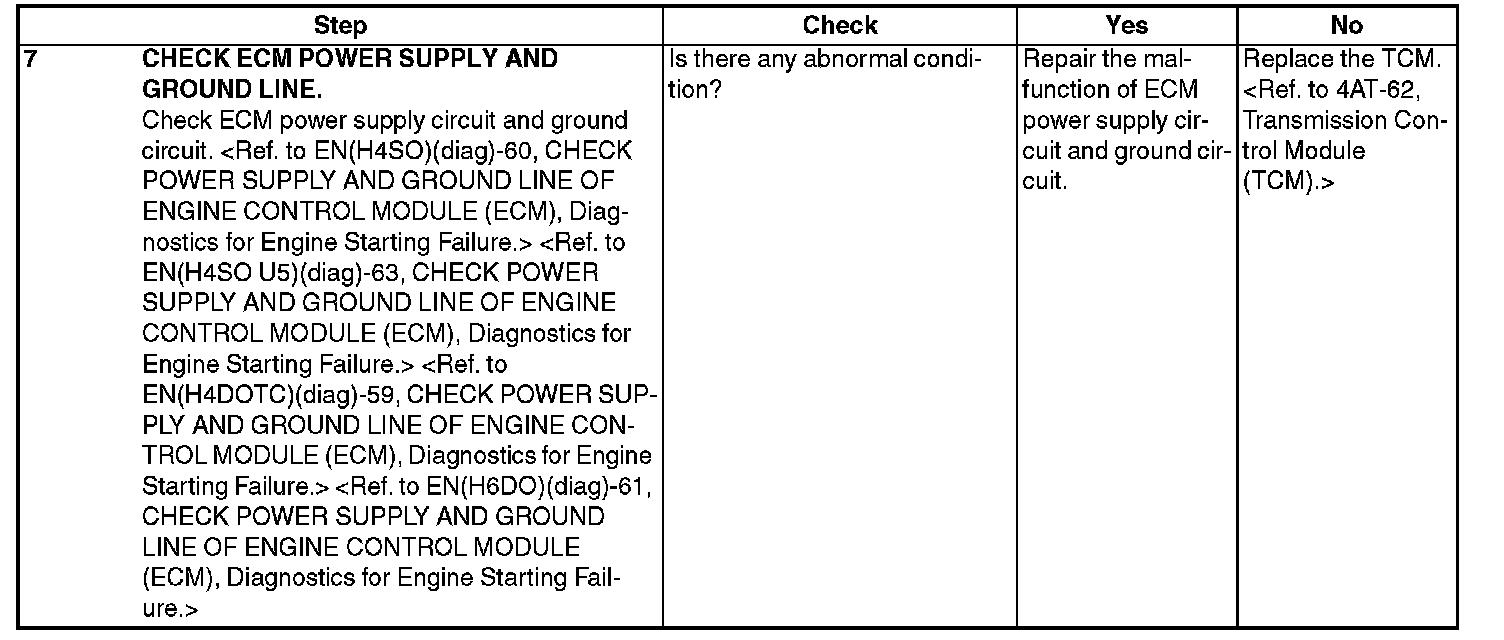

Step 7:
