2.5L SOHC

DTC P0852 NEUTRAL SWITCH INPUT CIRCUIT HIGH (MT MODEL)

DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.

TROUBLE SYMPTOM:
Erroneous idling

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.

Wiring Diagram:

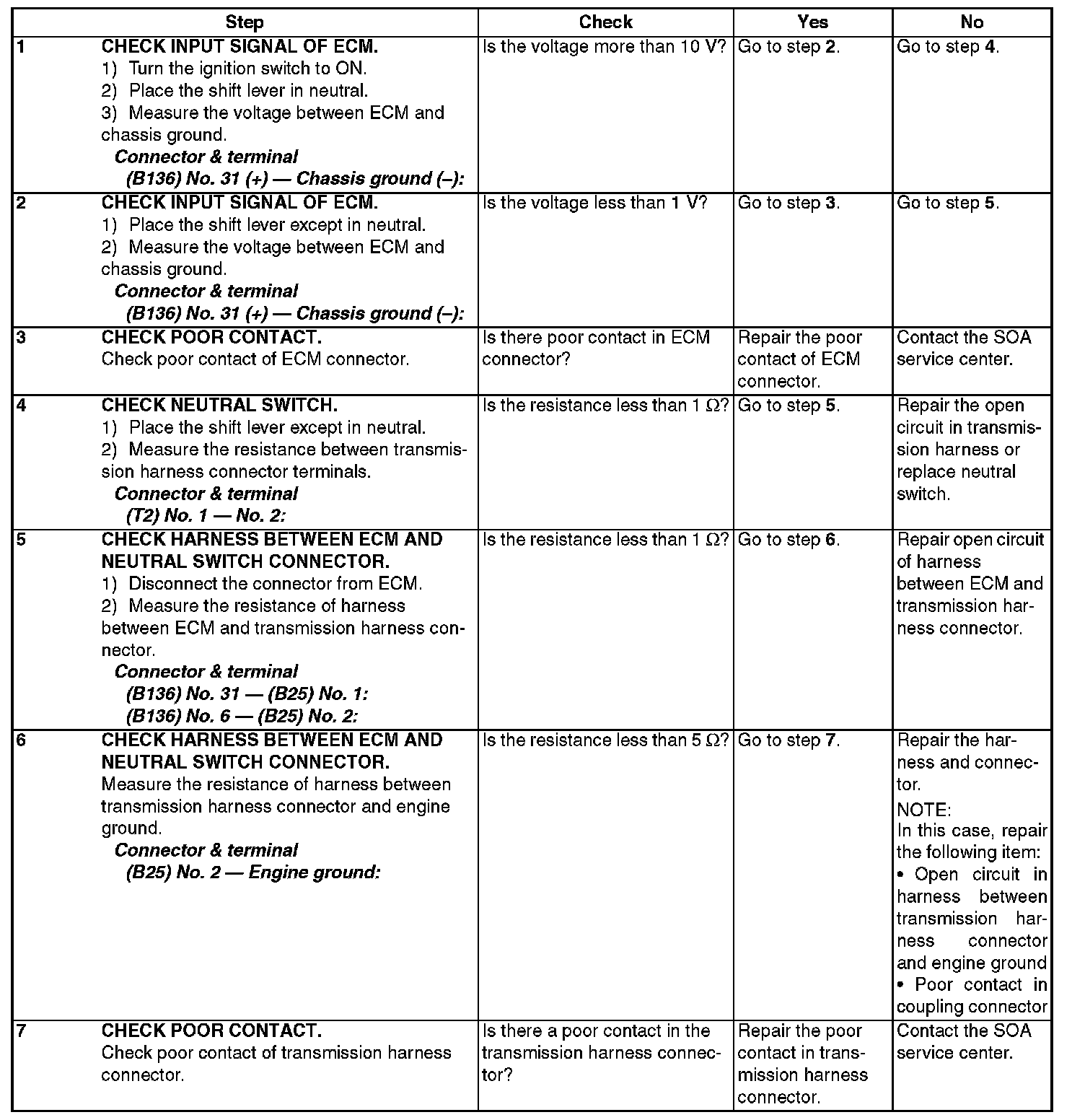

Step 1 - 7:
