P0753

DTC P0753 SHIFT SOLENOID A ELECTRICAL

DTC DETECTING CONDITION
- Output signal circuit of low clutch duty solenoid is open or shorted.

TROUBLE SYMPTOM
- Excessive shift shock

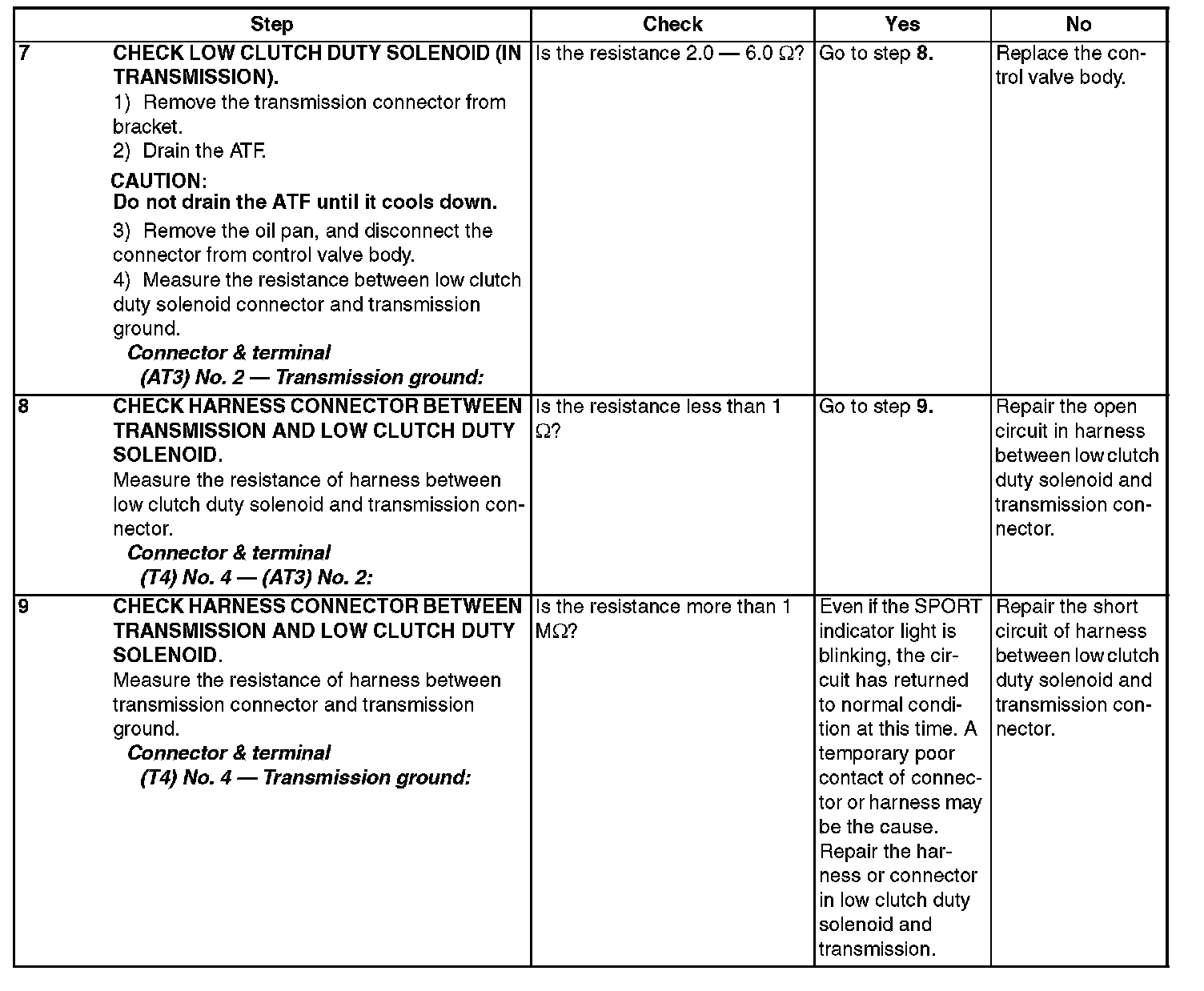

WIRING DIAGRAM
