P0724
DTC P0724 TORQUE CONVERTER/BRAKE SWITCH B CIRCUIT HIGHDTC DETECTING CONDITION
- Brake switch malfunction, open input signal circuit
TROUBLE SYMPTOM
- Gear is not shifted down when driving a down hill.

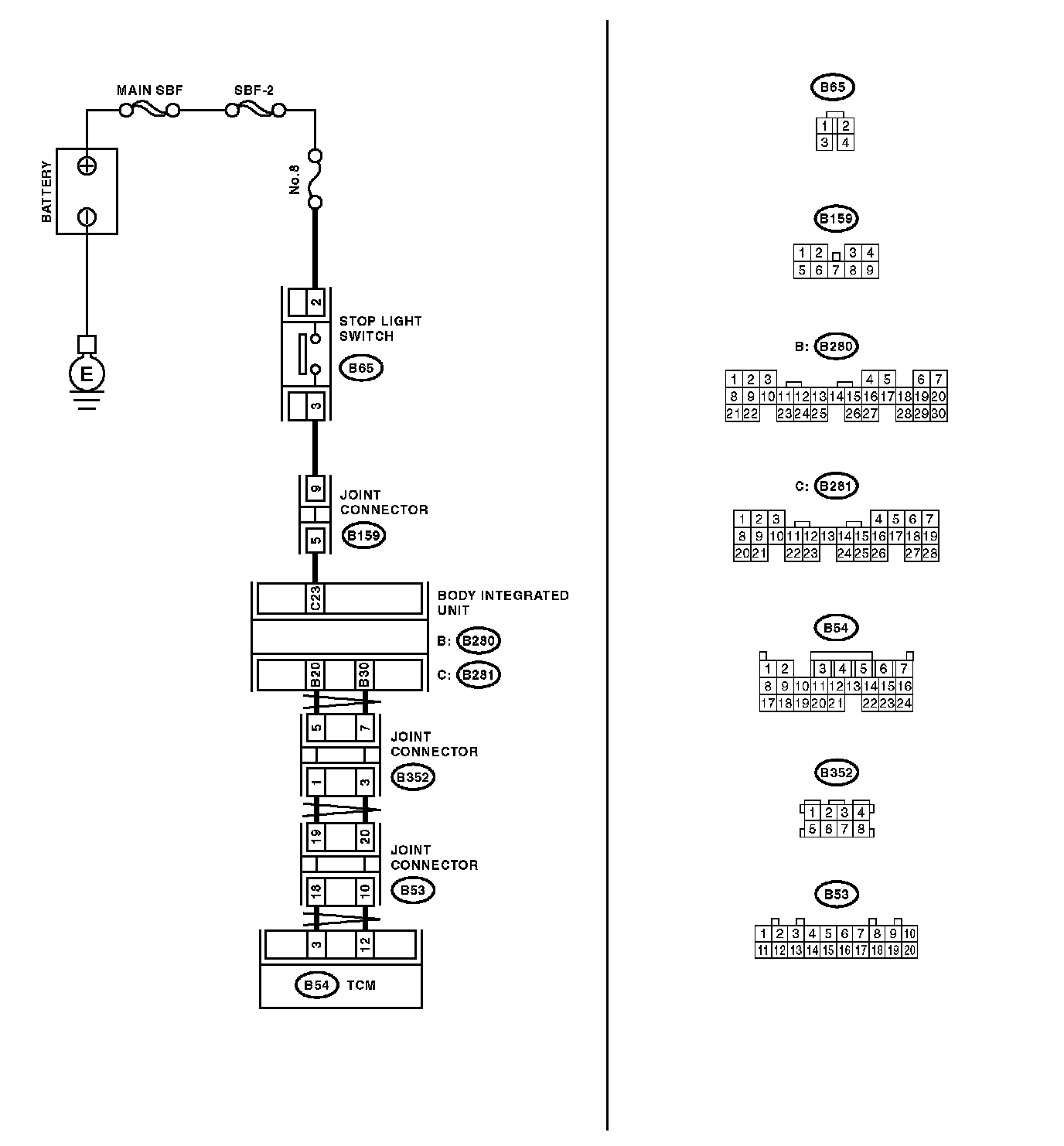

WIRING DIAGRAM
DTC DETECTING CONDITION
- Brake switch malfunction, open input signal circuit
TROUBLE SYMPTOM
- Gear is not shifted down when driving a down hill.
WIRING DIAGRAM
