P0602

DTC P0602 CONTROL MODULE PROGRAMMING ERROR

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Engine keeps running at higher speed than specified idle speed.
- Engine keeps running at lower speed than specified idle speed.
- Engine stalls.

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.

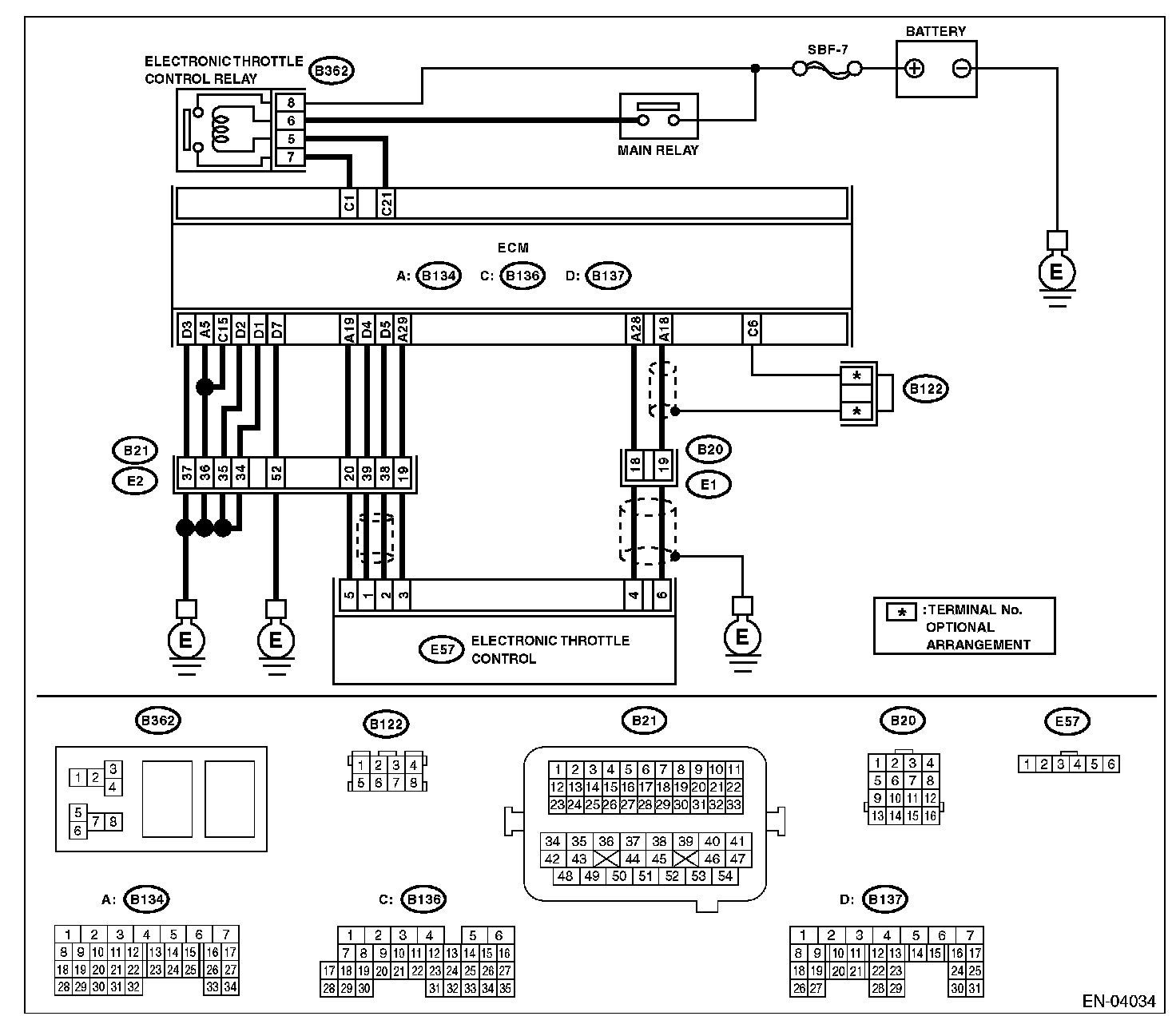

Wiring Diagram:

Step 1 - 3:

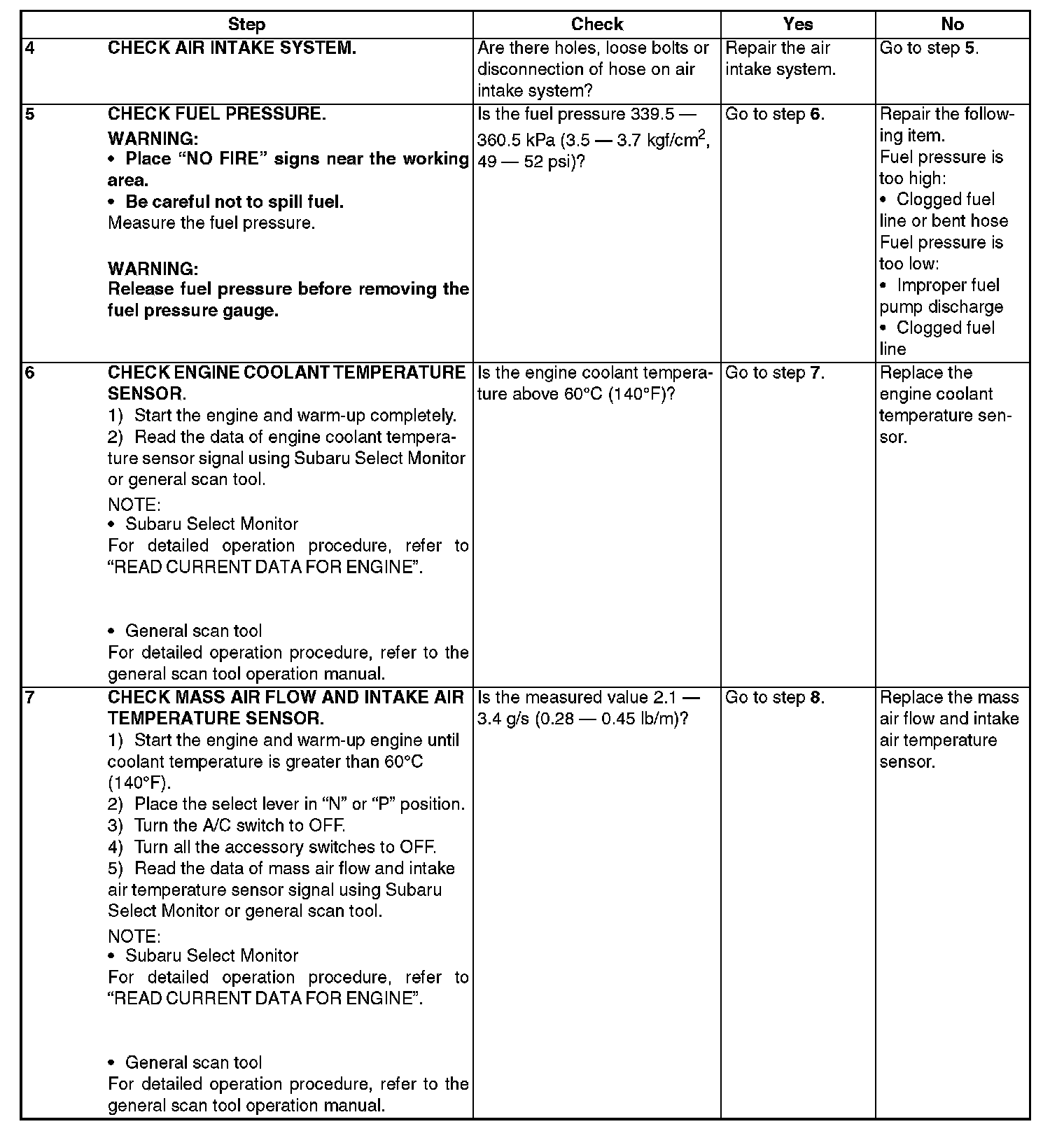

Step 4 - 7:

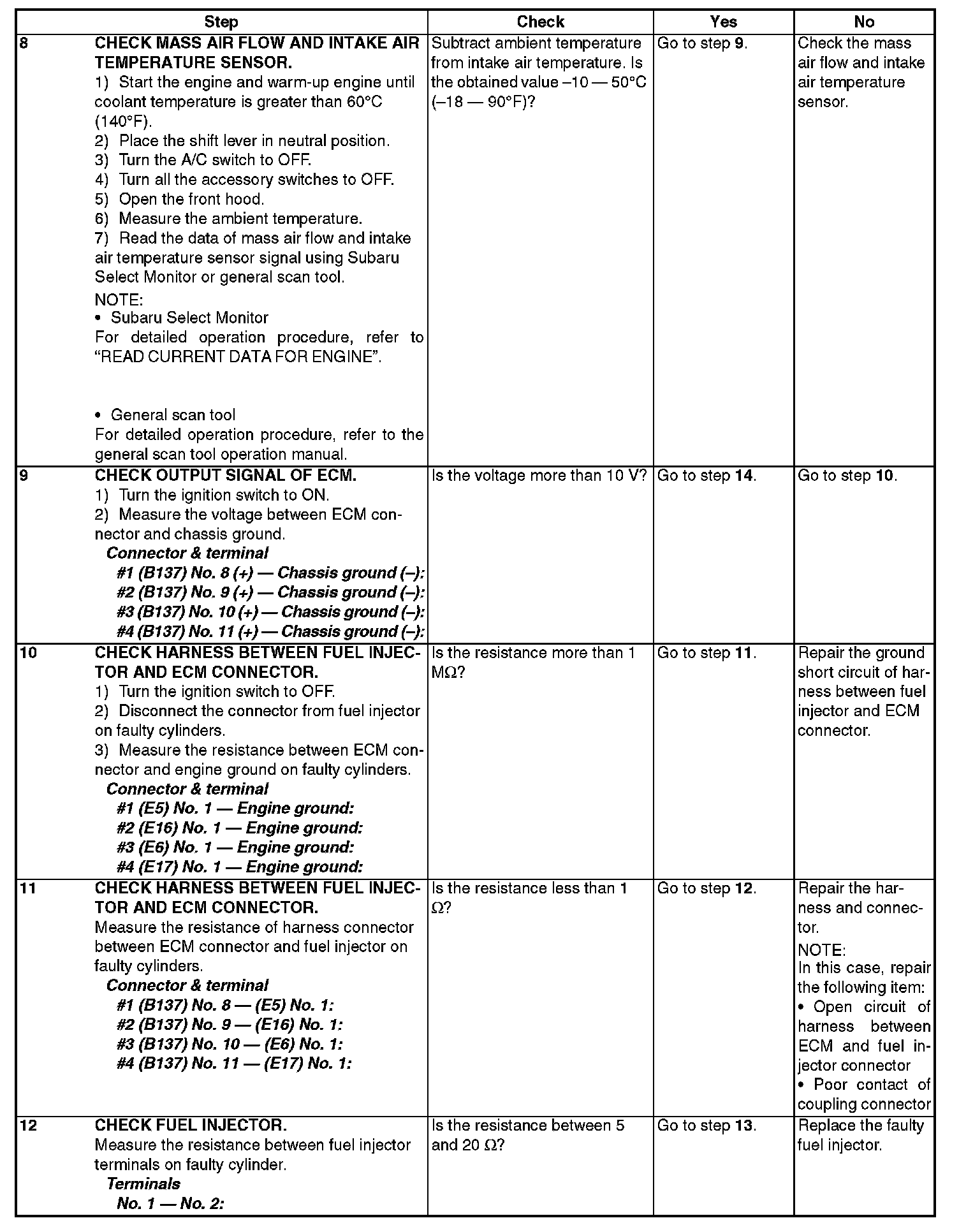

Step 8 - 12:

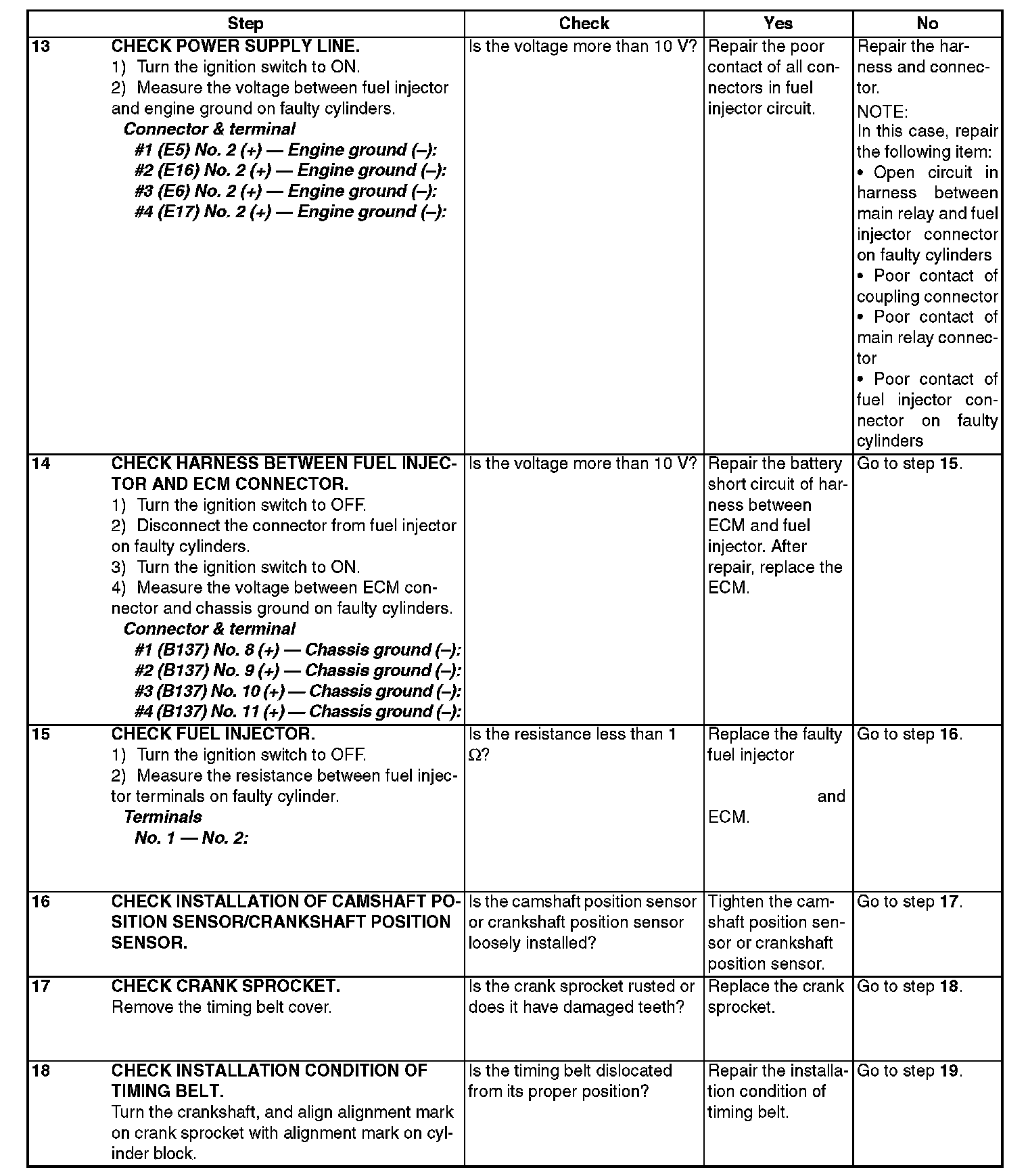

Step 13 - 18:

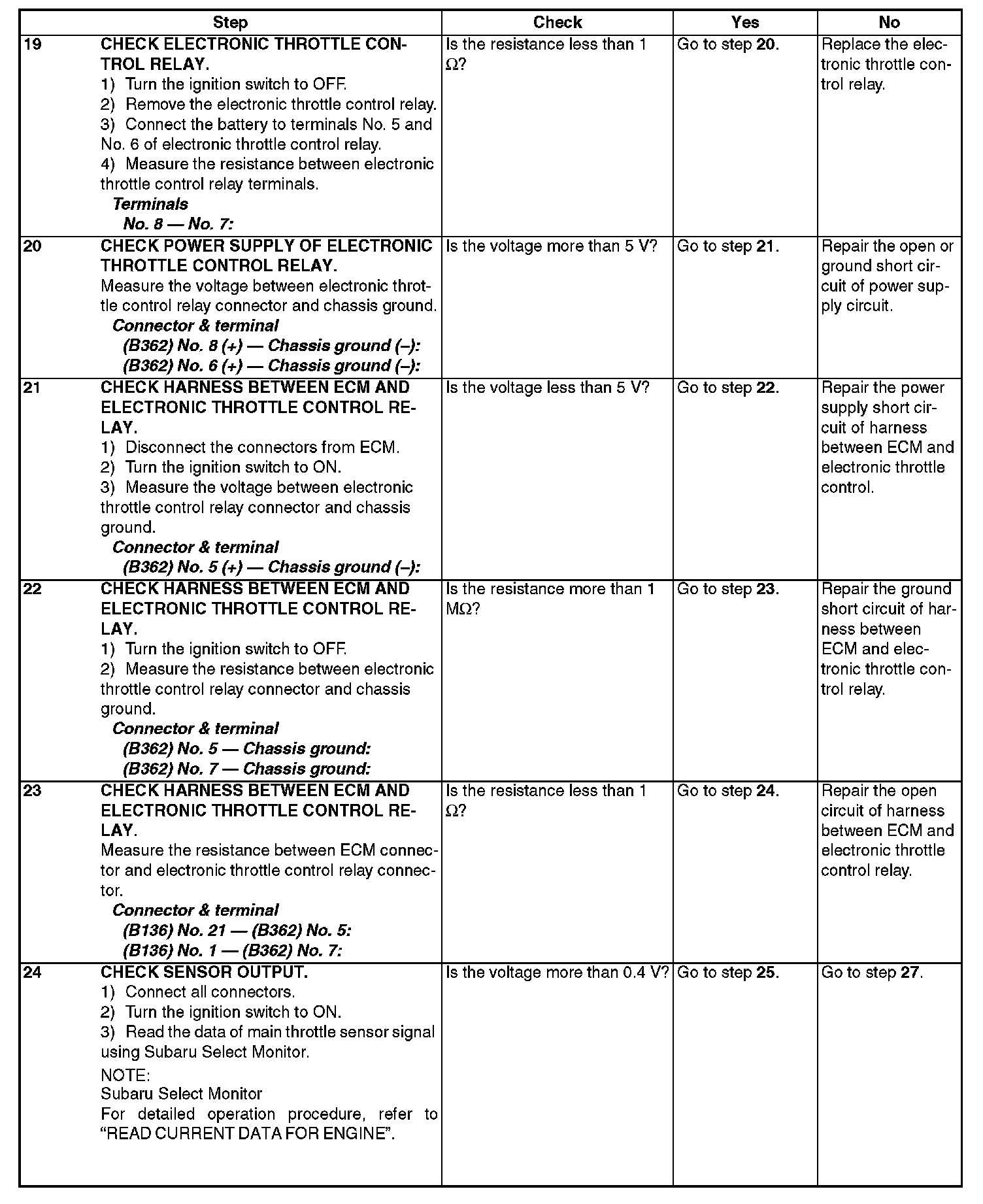

Step 19 - 24:

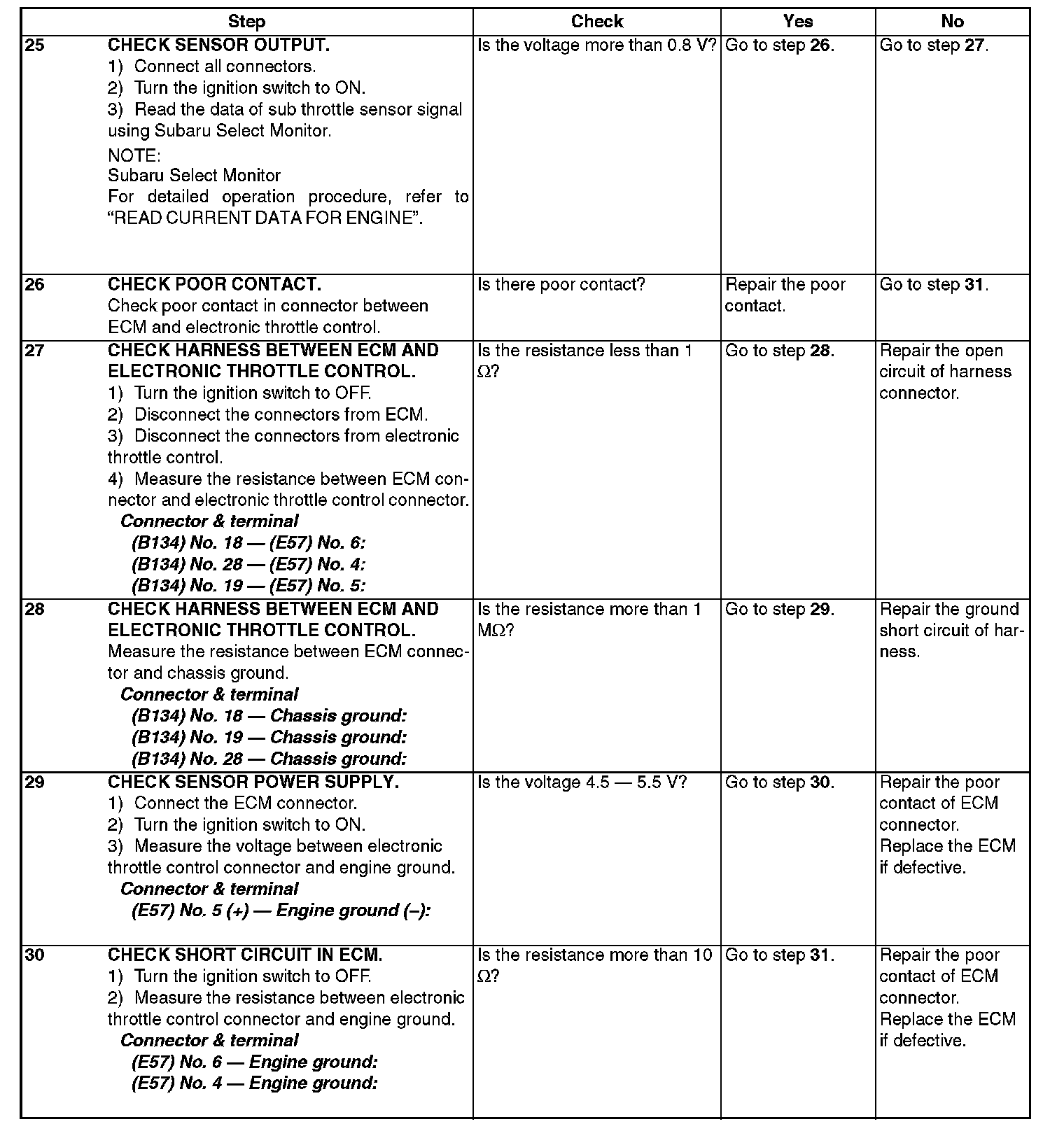

Step 25 - 30:

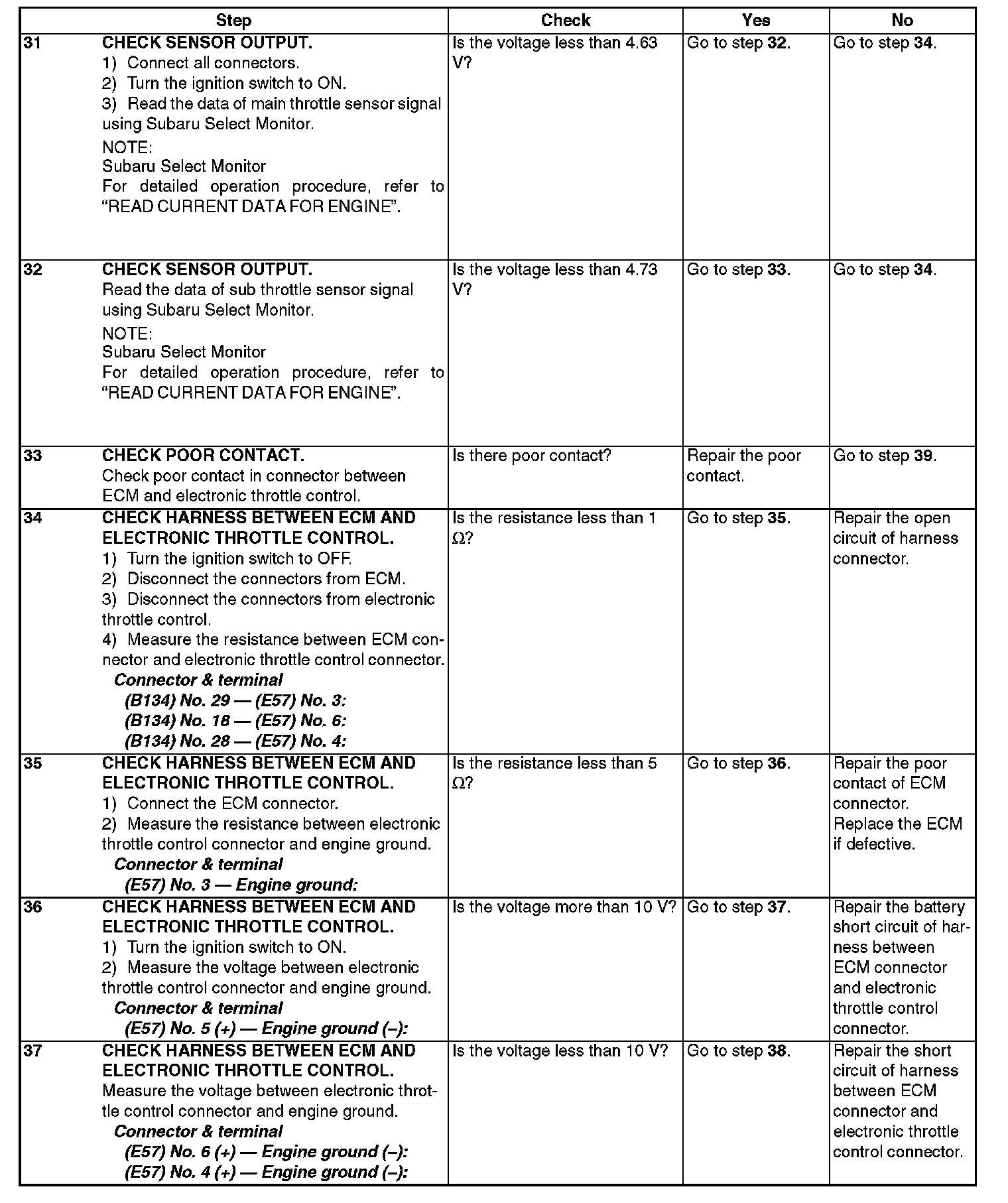

Step 31 - 37:

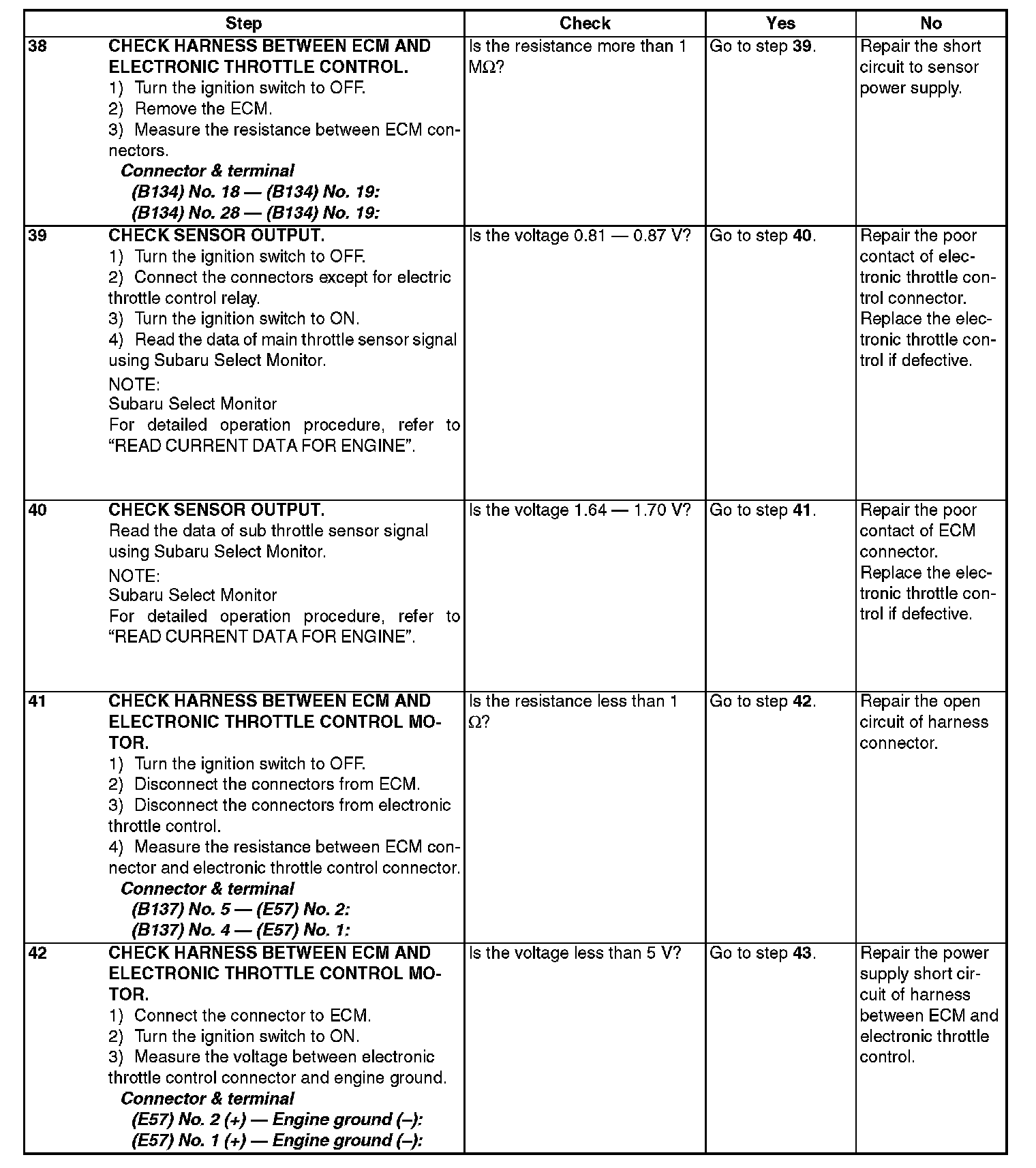

Step 38 - 42:

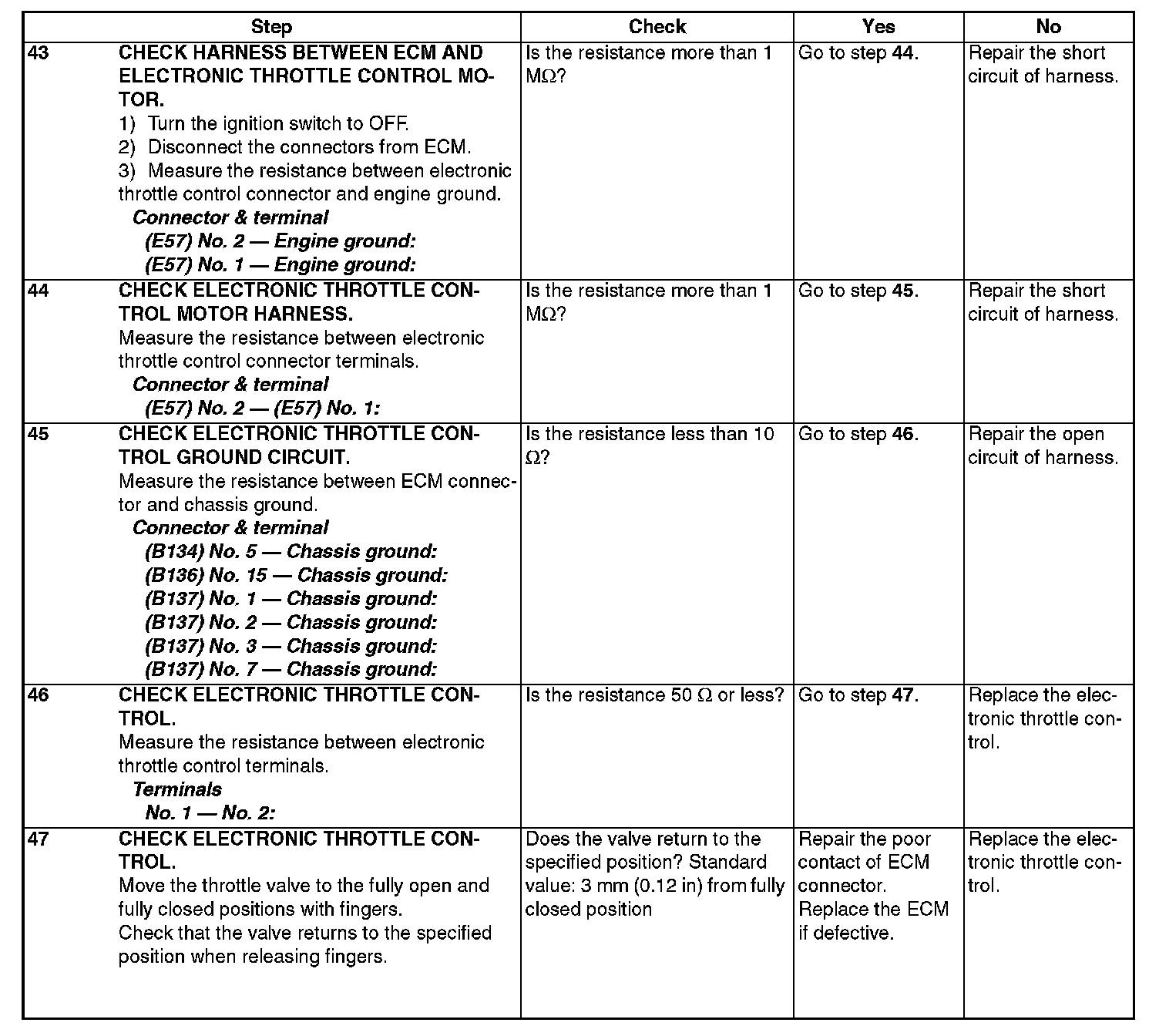

Step 43 - 47:
