2.5L SOHC U5/Low Emission

DTC P0506 IDLE AIR CONTROL SYSTEM RPM LOWER THAN EXPECTED

DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.

TROUBLE SYMPTOM:
- Engine is difficult to start.
- Engine does not start.
- Erroneous idling
- Engine stalls.

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.

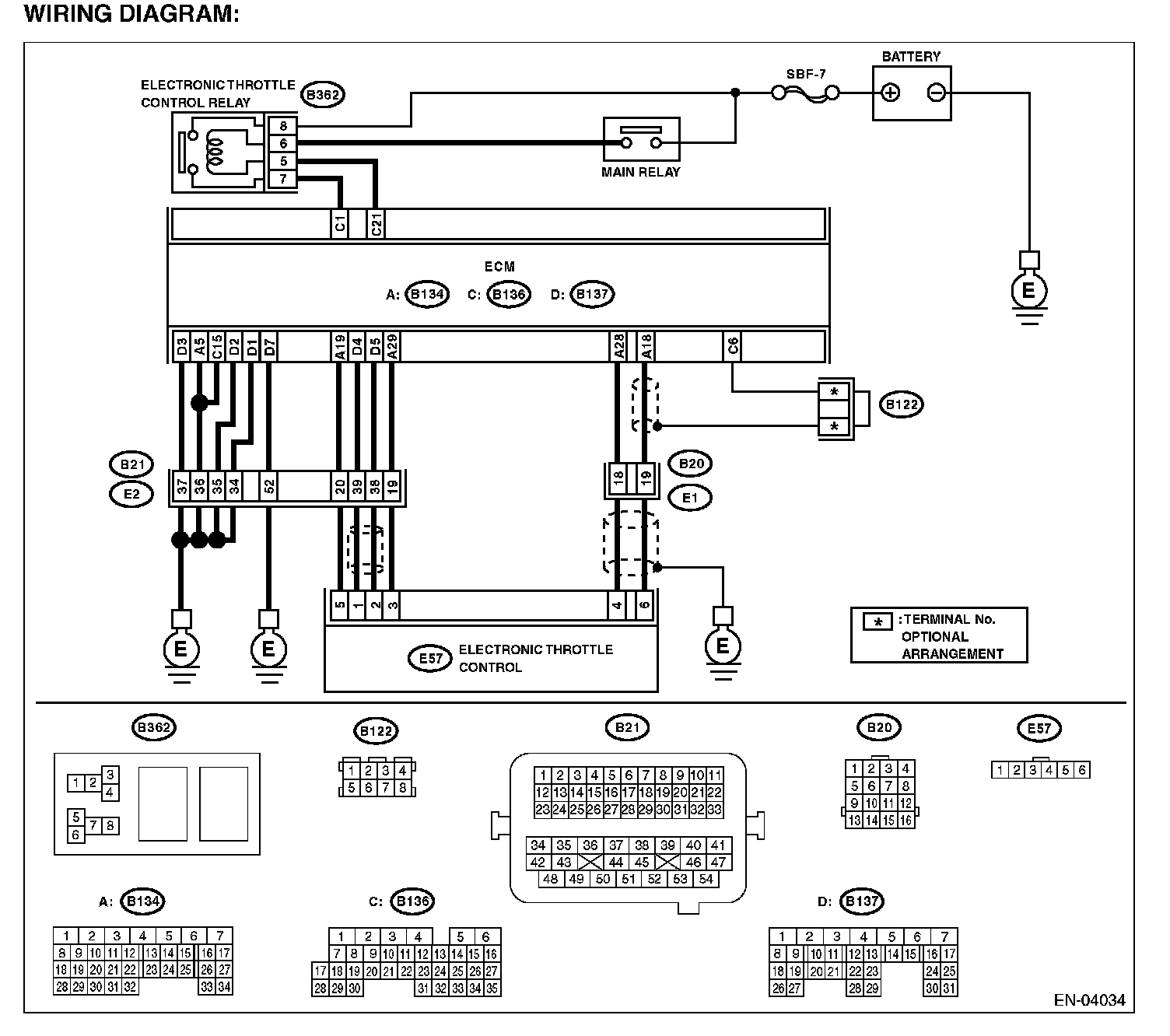

Wiring Diagram:

Step 1 - 3:
