2.5L SOHC U5/Low Emission

DTC P0453 EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR HIGH INPUT

DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.

Wiring Diagram:

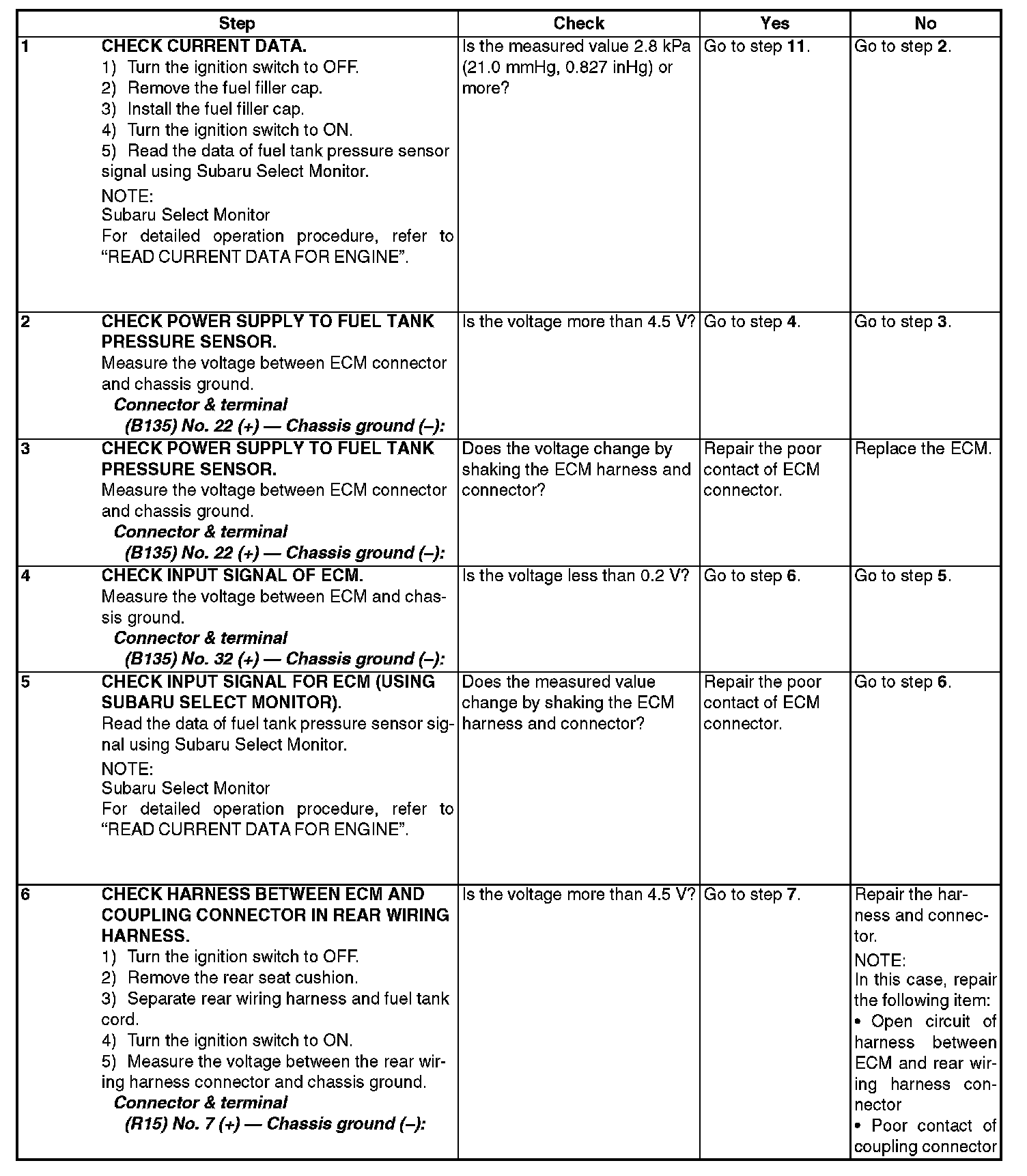

Step 1 - 6:

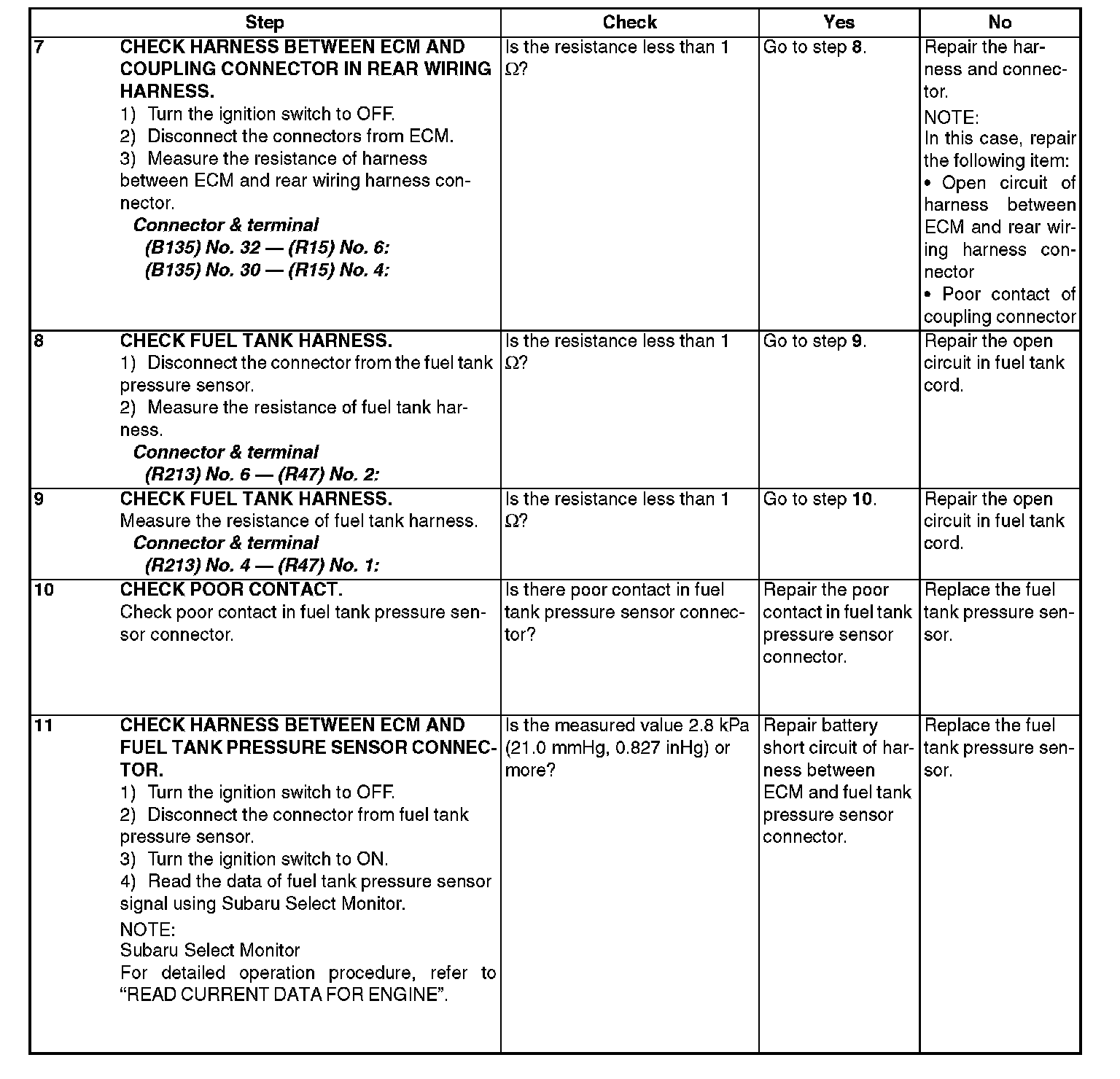

Step 7 - 11:
