2.5L SOHC U5/Low Emission

DTC P0442 EVAPORATIVE EMISSION CONTROL SYSTEM LEAK DETECTED(SMALL LEAK)

DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.

TROUBLE SYMPTOM:
- Fuel odor
- There is a hole of more than 1.0 mm (0.04 in) dia. in evaporation system or fuel tank.

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.

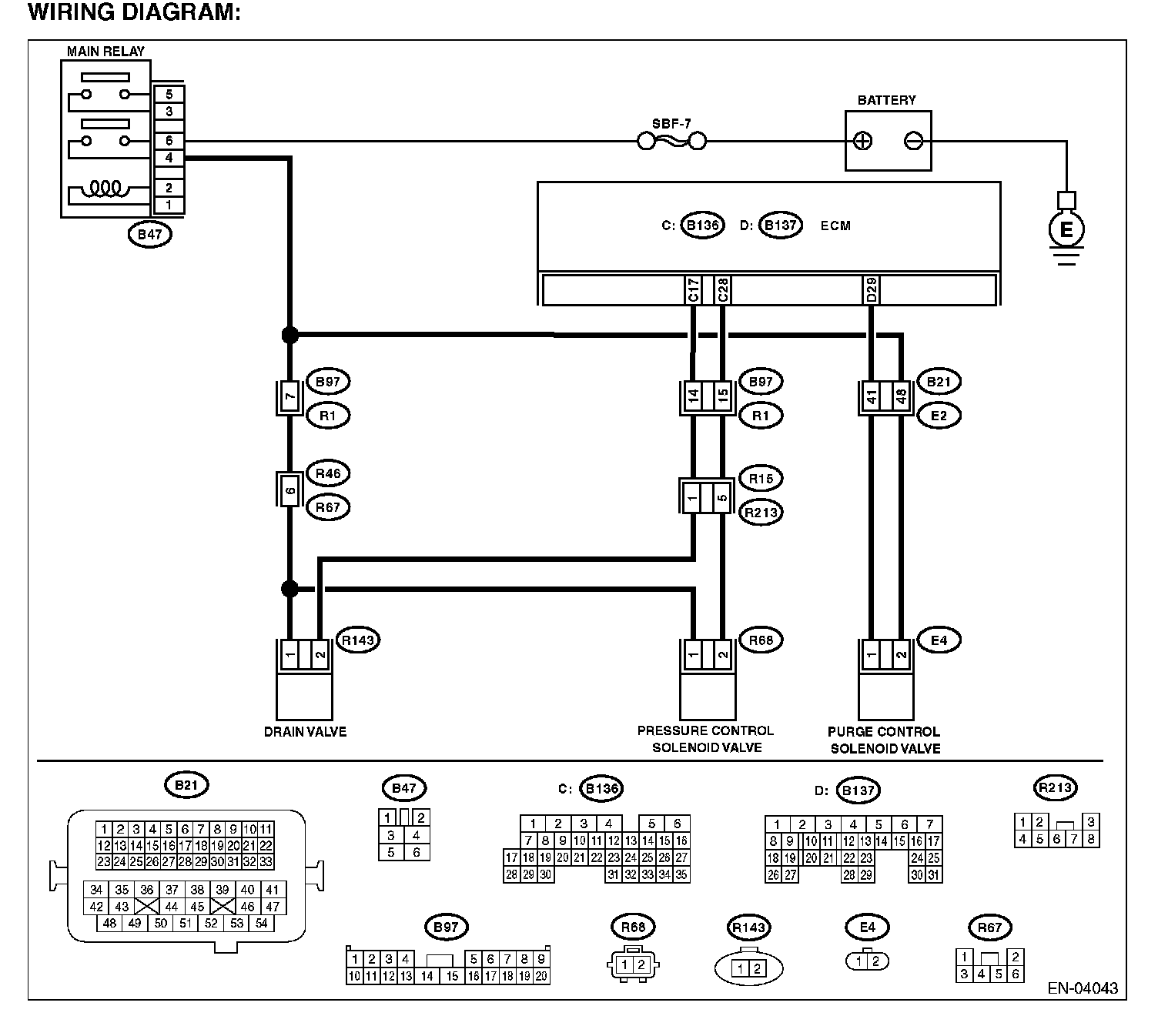

Wiring Diagram:

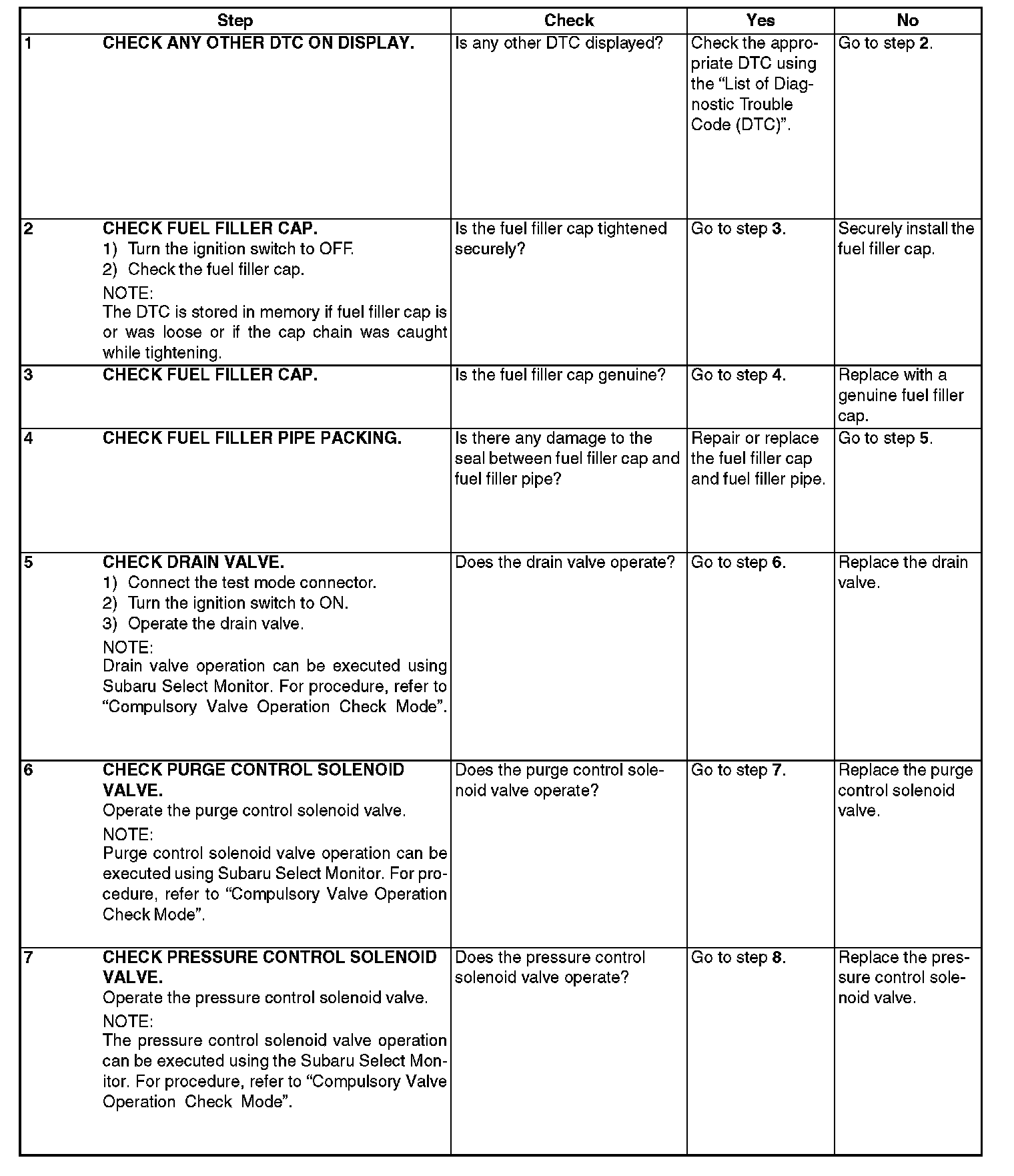

Step 1 - 7:

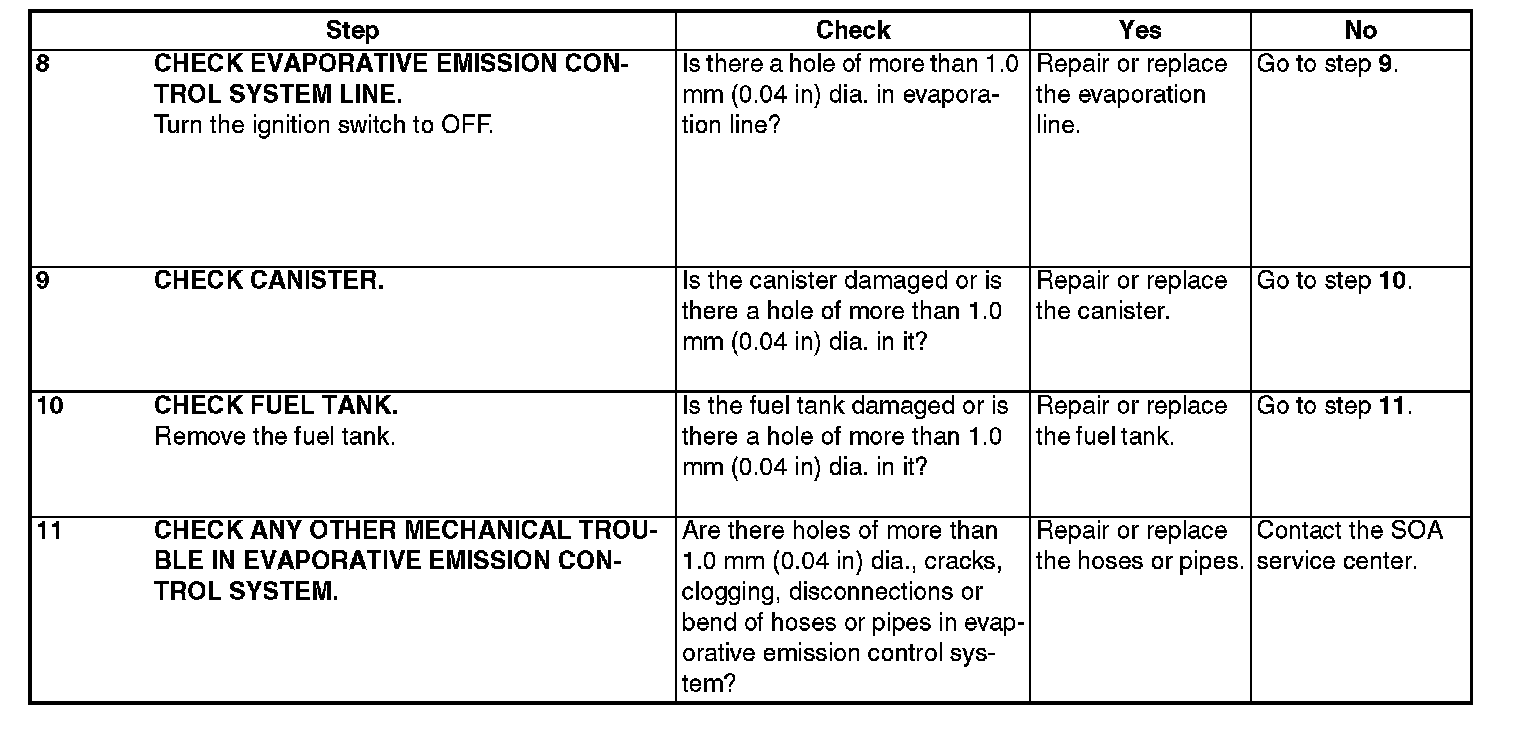

Step 8 - 11:
