2.5L SOHC U5/Low Emission

DTC P0336 CRANKSHAFT POSITION SENSOR "A" CIRCUIT RANGE/PERFORMANCE

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Engine stalls.
- Failure of engine to start

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.

Wiring Diagram:

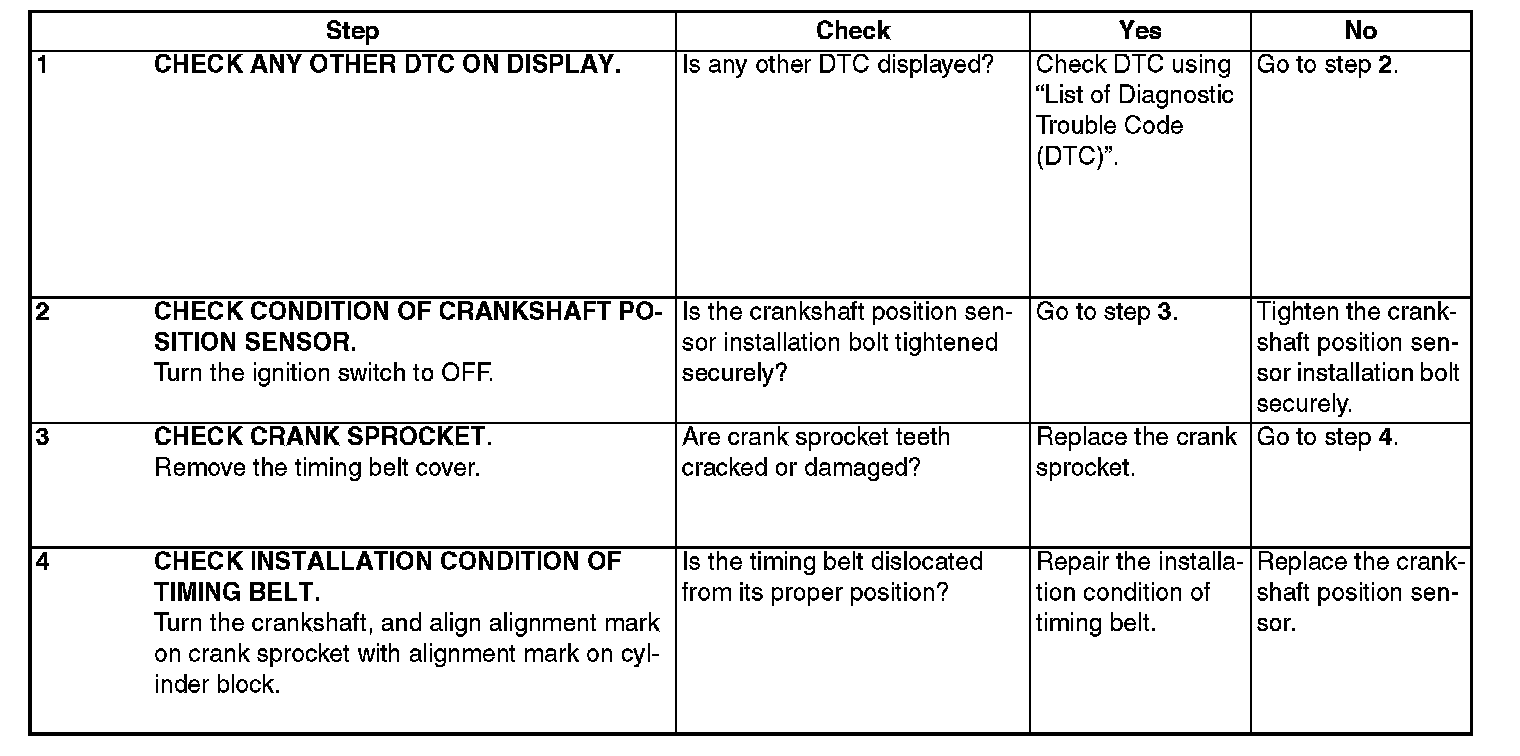

Step 1 - 4:
