2.5L SOHC

DTC P0327 KNOCK SENSOR 1 CIRCUIT LOW (BANK 1 OR SINGLE SENSOR)

DTC DETECTING CONDITION:
- Immediately at fault recognition

TROUBLE SYMPTOM:
- Poor driving performance
- Knocking occurs.

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.

Step 1 - 5:

Step 6 - 12:

Step 13 - 18:

Step 19 - 23:

Step 24 - 27:

Wiring Diagram:

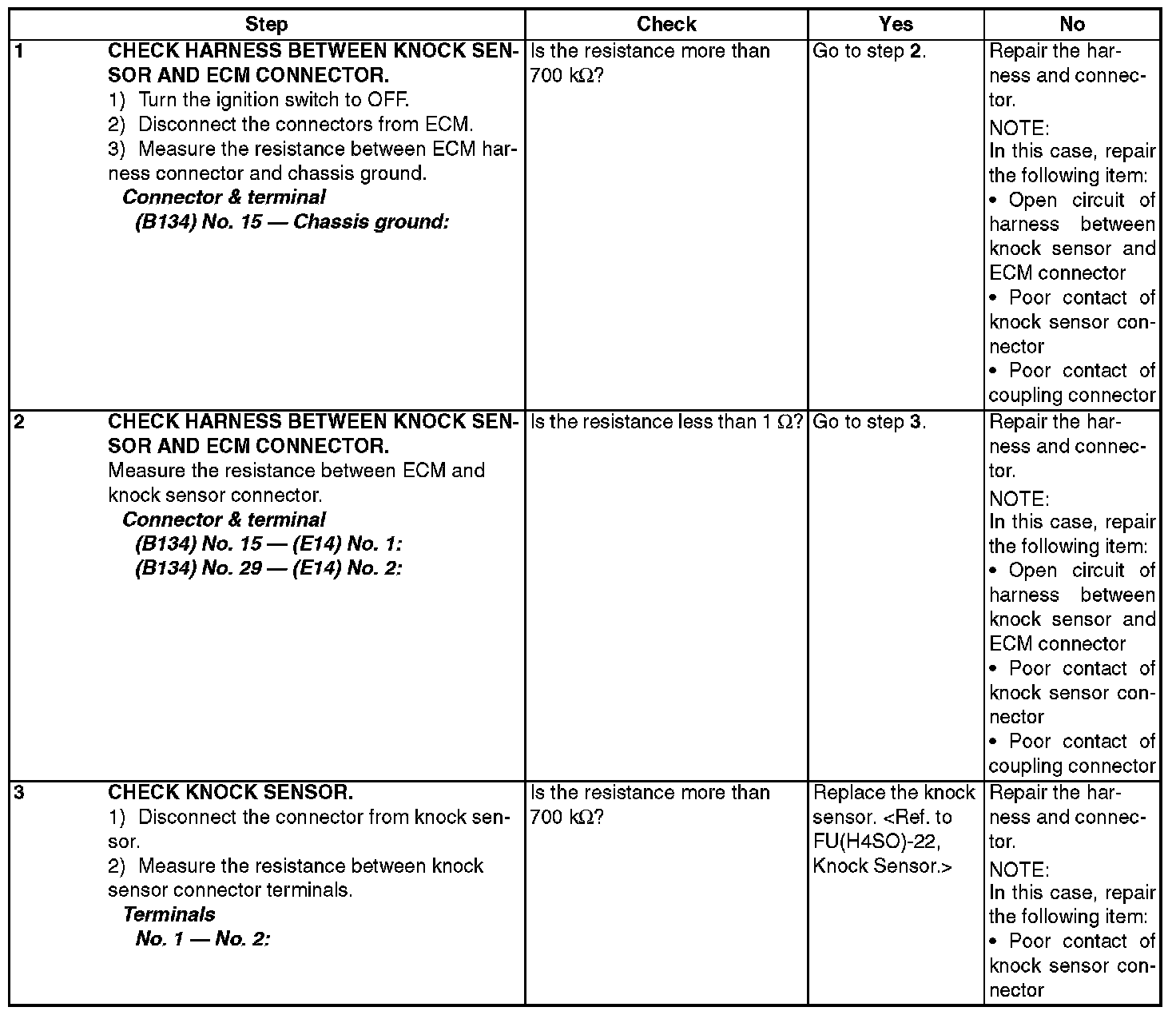

Step 1 - 3:
