2.5L SOHC U5/Low Emission

DTC P0131 O2 SENSOR CIRCUIT LOW VOLTAGE (BANK 1 SENSOR 1)

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode and Inspection Mode.

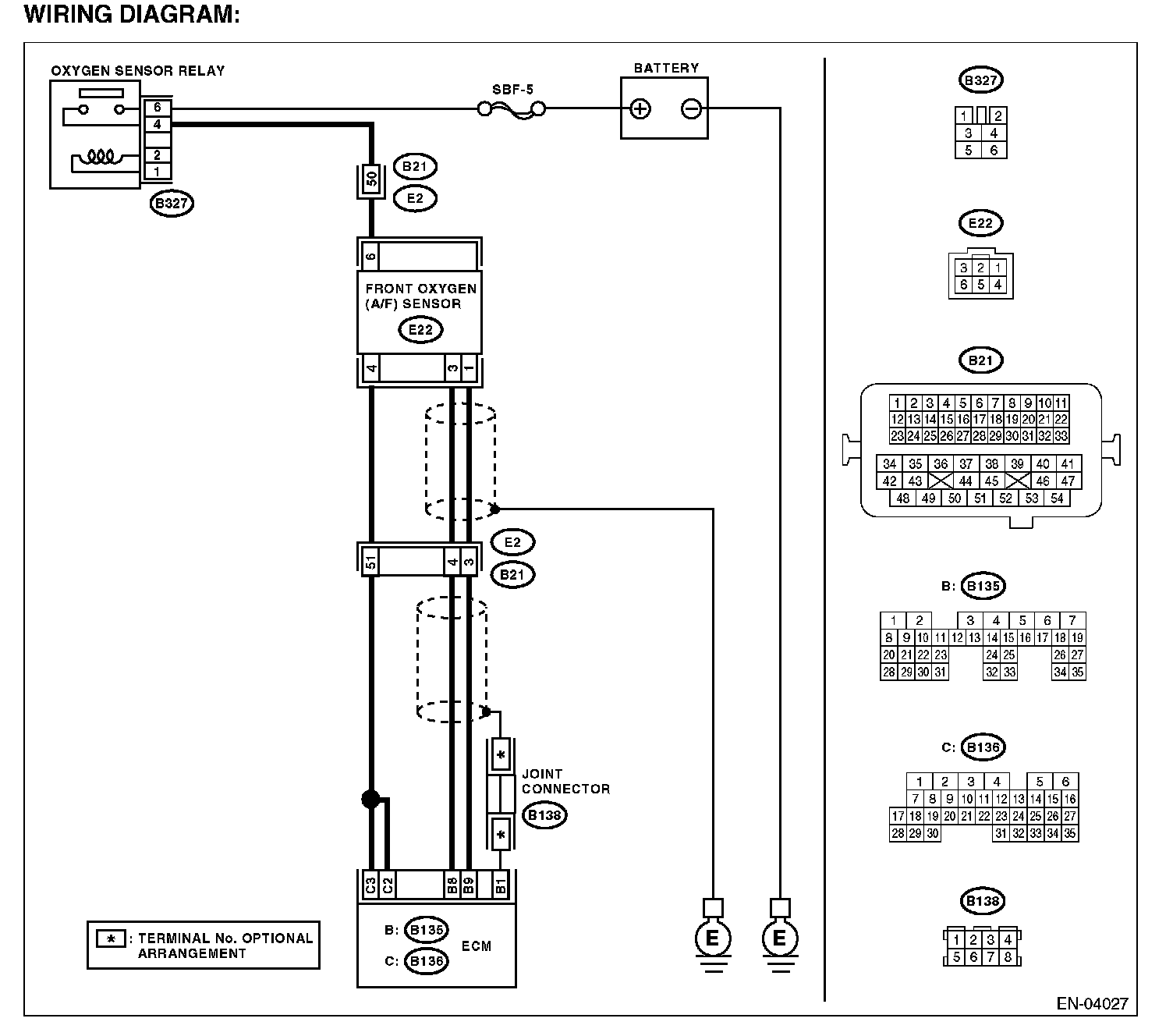

Wiring Diagram:




Step 1 - 2:
